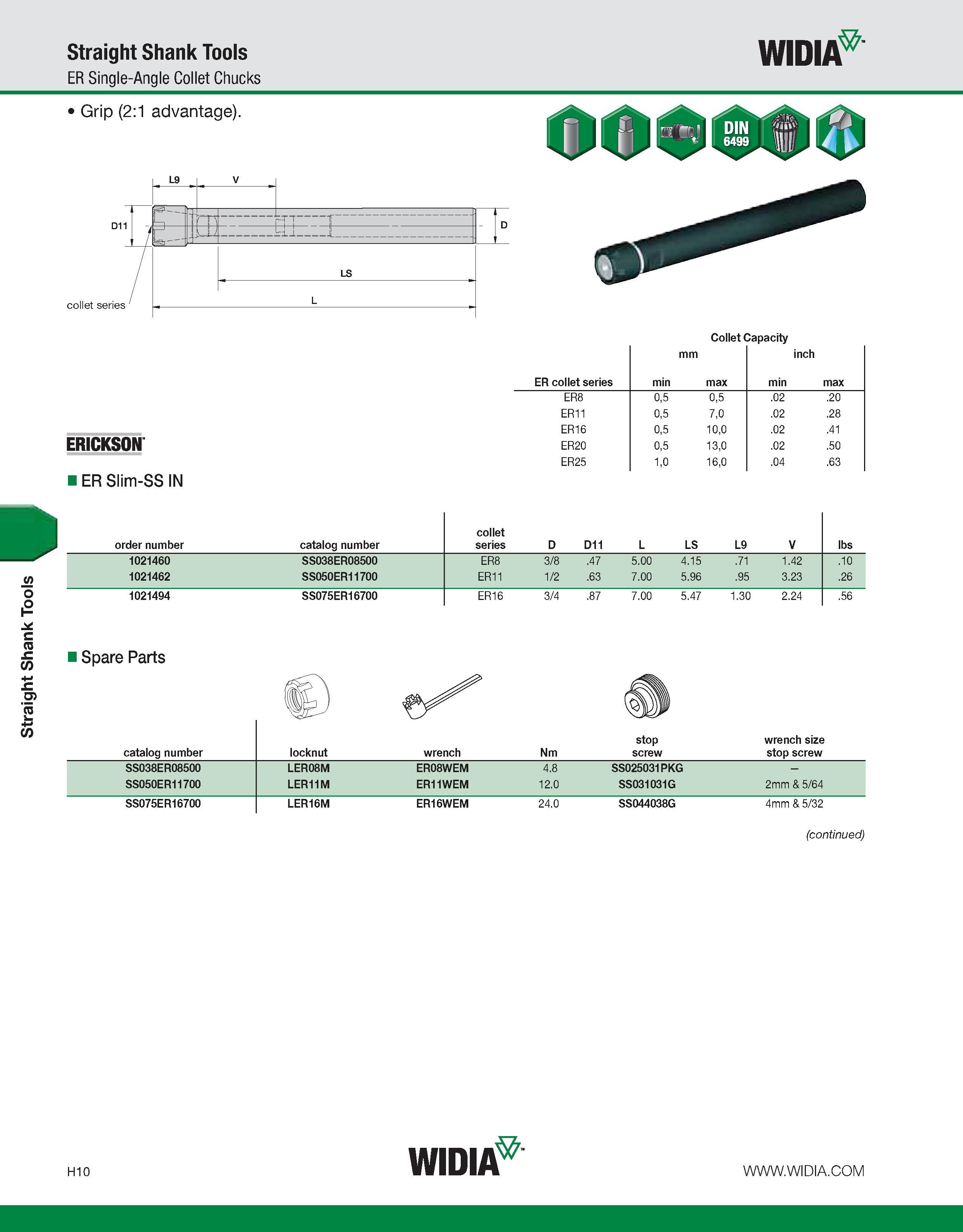

Straight Shank Tools Straight Shank Tools ER Single-Angle Collet Chucks WIDIA ERICKSON ER Slim-SS IN Collet Capacity ER collet series min mm max inch min max ER8 0,5 0,5 .02 .20 ER11 0,5 7,0 .02 .28 ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 order number catalog number collet series D D11 L LS L9 V lbs 1021460 SS038ER08500 ER8 3/8 .47 5.00 4.15 .71 1.42 .10 1021462 SS050ER11700 ER11 1/2 .63 7.00 5.96 .95 3.23 .26 1021494 SS075ER16700 ER16 3/4 .87 7.00 5.47 1.30 2.24 .56 Spare Parts stop wrench size catalog number locknut wrench Nm screw stop screw SS038ER08500 LER08M ER08WEM 4.8 SS025031PKG - SS050ER11700 LER11M ER11WEM 12.0 SS031031G 2mm & 5/64 SS075ER16700 LER16M ER16WEM 24.0 SS044038G 4mm & 5/32 (continued) H10 WIDIA
