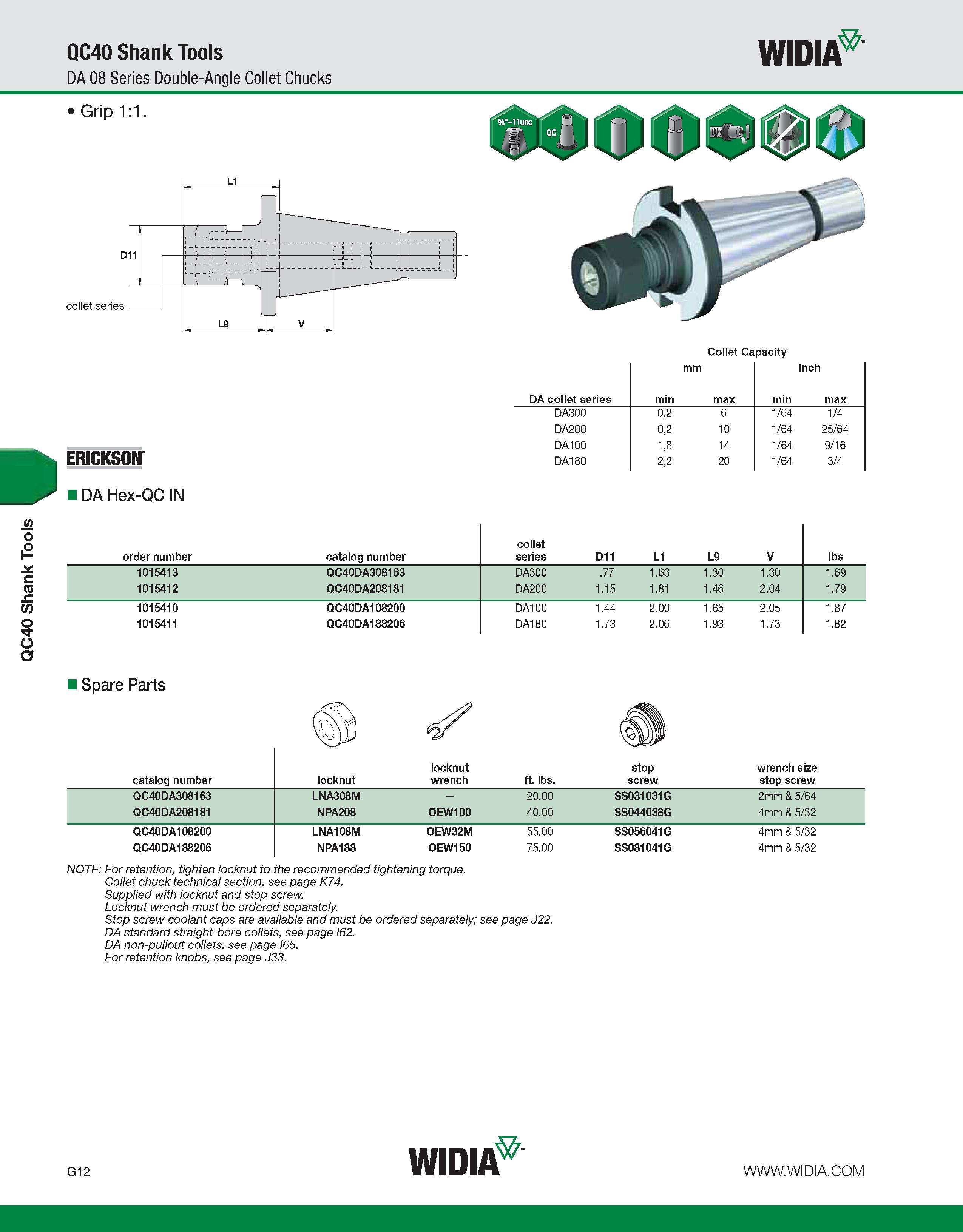

QC40 Shank Tools QC40 Shank Tools DA 08 Series Double-Angle Collet Chucks WIDIA Grip 1:1. collet series Collet Capacity mm inch DA collet series min max min max DA300 0,2 6 1/64 1/4 DA200 0,2 10 1/64 25/64 DA100 1,8 14 1/64 9/16 ERICKSON DA180 2,2 20 1/64 3/4 DA Hex-QC IN collet order number catalog number series D11 L1 L9 V lbs 1015413 QC40DA308163 DA300 .77 1.63 1.30 1.30 1.69 1015412 QC40DA208181 DA200 1.15 1.81 1.46 2.04 1.79 1015410 QC40DA108200 DA100 1.44 2.00 1.65 2.05 1.87 1015411 QC40DA188206 DA180 1.73 2.06 1.93 1.73 1.82 i Spare Parts catalog number locknut locknut wrench ft. lbs. stop screw wrench size stop screw QC40DA308163 LNA308M - 20.00 SS031031G 2mm & 5/64 QC40DA208181 NPA208 0EW100 40.00 SS044038G 4mm & 5/32 QC40DA108200 LNA108M 0EW32M 55.00 SS056041G 4mm & 5/32 QC40DA188206 NPA188 0EW150 75.00 SS081041G 4mm & 5/32 NOTE: For retention, tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I62. DA non-pullout collets, see page I65. For retention knobs, see page J33. G12 WIDIA
