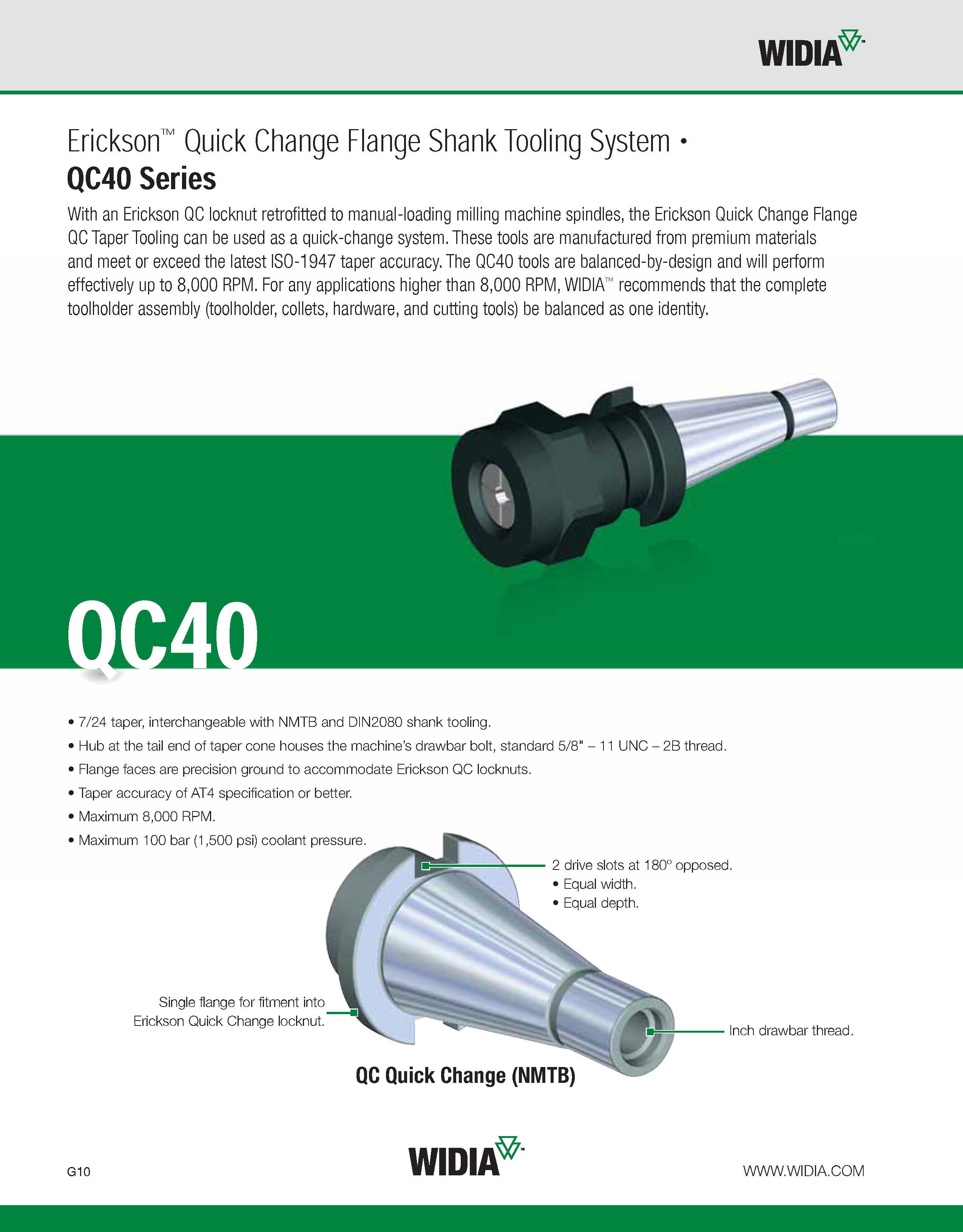

WIDIA Erickson Quick Change Flange Shank Tooling System QC40 Series With an Erickson QC locknut retrofitted to manual-loading milling machine spindles, the Erickson Quick Change Flange QC Taper Tooling can be used as a quick-change system. These tools are manufactured from premium materials and meet or exceed the latest ISO-1947 taper accuracy. The QC40 tools are balanced-by-design and will perform effectively up to 8,000 RPM. For any applications higher than 8,000 RPM, WIDIA recommends that the complete toolholder assembly (toolholder, collets, hardware, and cutting tools) be balanced as one identity. ' 7/24 taper, interchangeable with NMTB and DIN2080 shank tooling. ' Hub at the tail end of taper cone houses the machine's drawbar bolt, standard 5/8" - 11 UNC - 2B thread. ' Flange faces are precision ground to accommodate Erickson QC locknuts. ' Taper accuracy of AT4 specification or better. ' Maximum 8,000 RPM. Maximum 100 bar (1,500 psi) coolant pressure. 2 drive slots at 180° opposed. Equal width. Equal depth. Single flange for fitment into Erickson Quick Change locknut. Inch drawbar thread. QC Quick Change (NMTB) G10 WIDIA
