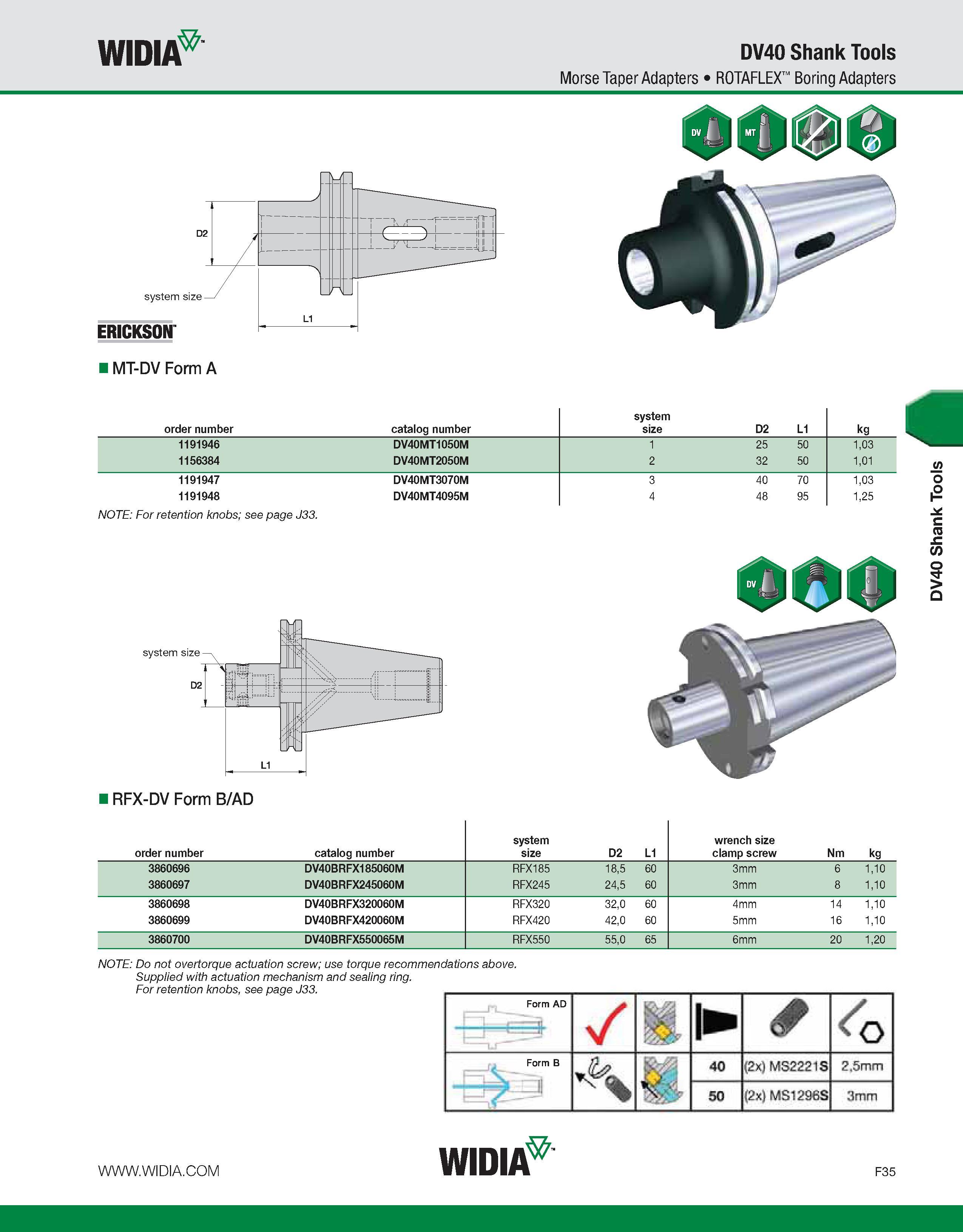

WIDIA DV40 Shank Tools Morse Taper Adapters ROTAFLEX Boring Adapters IMT-DV Form A order number catalog number system size D2 L1 kg 1191946 DV40MT1050M 1 25 50 1,03 1156384 DV40MT2050M 2 32 50 1,01 1191947 DV40MT3070M 3 40 70 1,03 1191948 DV40MT4095M 4 48 95 1,25 NOTE: For retention knobs; see page J33. IRFX-DV Form B/AD order number catalog number system size D2 L1 wrench size clamp screw Nm kg 3860696 DV40BRFX185060M RFX185 18,5 60 3mm 6 1,10 3860697 DV40BRFX245060M RFX245 24,5 60 3mm 8 1,10 3860698 DV40BRFX320060M RFX320 32,0 60 4mm 14 1,10 3860699 DV40BRFX420060M RFX420 42,0 60 5mm 16 1,10 3860700 DV40BRFX550065M RFX550 55,0 65 6mm 20 1,20 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. WIDIA F35 DV40 Shank Tools
