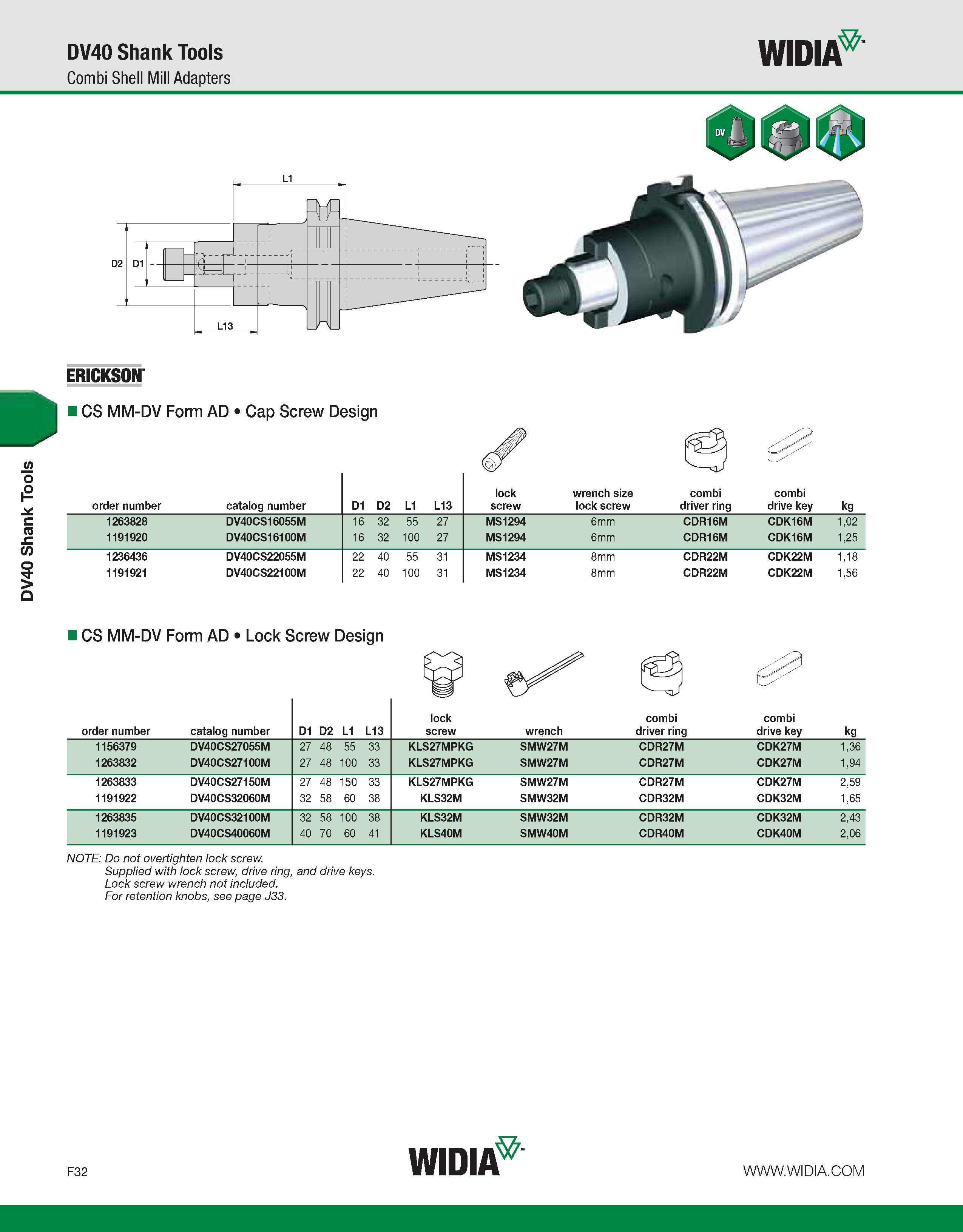

DV40 Shank Tools DV40 Shank Tools Combi Shell Mill Adapters WIDIA ERICKSON CS MM-DV Form AD Cap Screw Design order number catalog number D1 D2 L1 L13 lock screw wrench size lock screw combi driver ring combi drive key kg 1263828 DV40CS16055M 16 32 55 27 MS1294 6mm CDR16M CDK16M 1,02 1191920 DV40CS16100M 16 32 100 27 MS1294 6mm CDR16M CDK16M 1,25 1236436 DV40CS22055M 22 40 55 31 MS1234 8mm CDR22M CDK22M 1,18 1191921 DV40CS22100M 22 40 100 31 MS1234 8mm CDR22M CDK22M 1,56 CS MM-DV Form AD Lock Screw Design order number catalog number D1 D2 L1 L13 lock screw wrench combi driver ring combi drive key kg 1156379 DV40CS27055M 27 48 55 33 KLS27MPKG SMW27M CDR27M CDK27M 1,36 1263832 DV40CS27100M 27 48 100 33 KLS27MPKG SMW27M CDR27M CDK27M 1,94 1263833 DV40CS27150M 27 48 150 33 KLS27MPKG SMW27M CDR27M CDK27M 2,59 1191922 DV40CS32060M 32 58 60 38 KLS32M SMW32M CDR32M CDK32M 1,65 1263835 DV40CS32100M 32 58 100 38 KLS32M SMW32M CDR32M CDK32M 2,43 1191923 DV40CS40060M 40 70 60 41 KLS40M SMW40M CDR40M CDK40M 2,06 NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and drive keys. Lock screw wrench not included. For retention knobs, see page J33. F32 WIDIA
