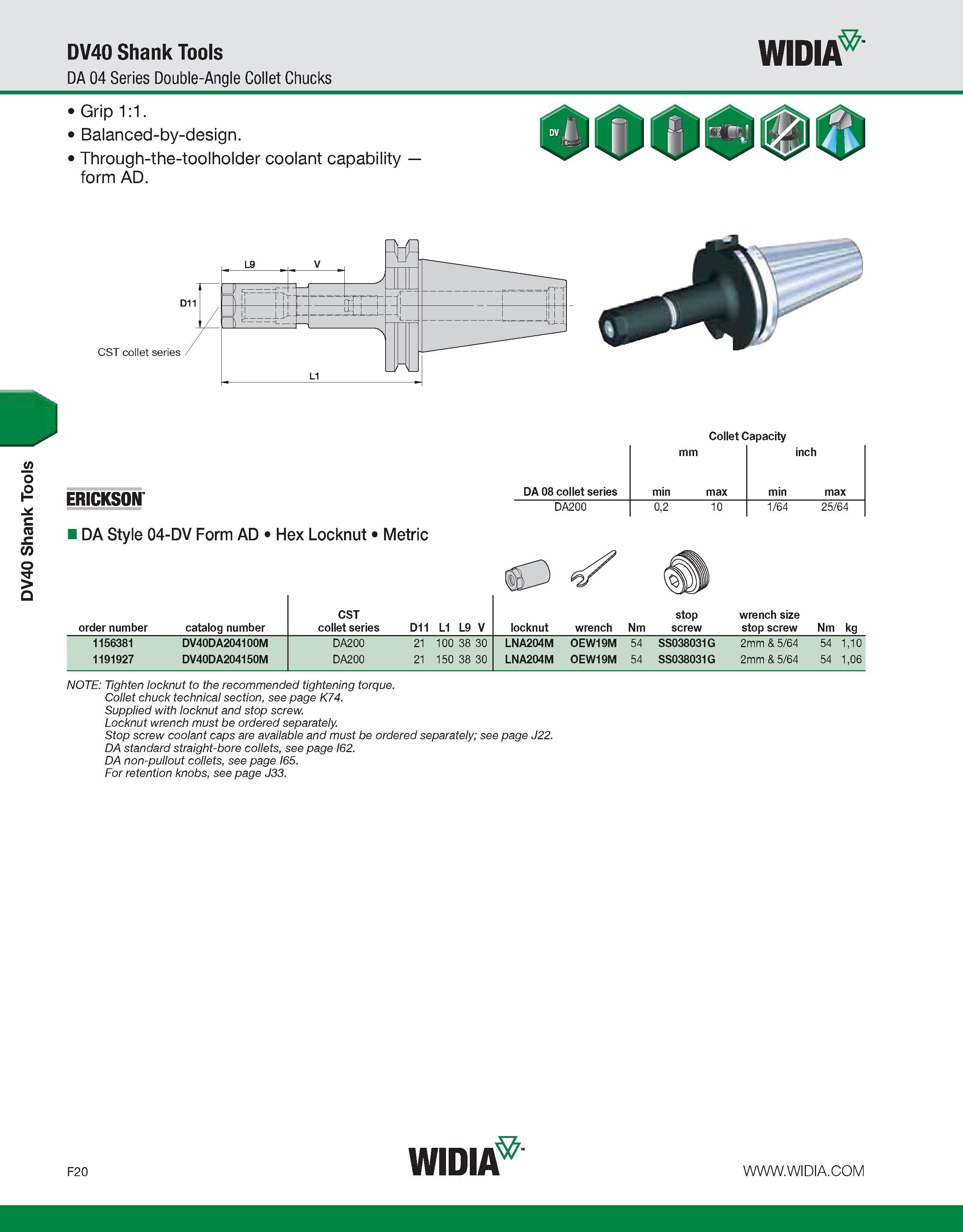

DV40 Shank Tools DV40 Shank Tools DA 04 Series Double-Angle Collet Chucks WIDIA Grip 1:1. Balanced-by-design. Through-the-toolholder coolant capability form AD. Collet Capacity ERICKSON mm inch DA 08 collet series min max min max DA200 0,2 10 1/64 25/64 DA Style 04-DV Form AD Hex Locknut Metric order number catalog number CST collet series D11 L1 L9 V locknut wrench Nm stop screw wrench size stop screw Nm kg 1156381 DV40DA204100M DA200 21 100 38 30 LNA204M OEW19M 54 SS038031G 2mm & 5/64 54 1,10 1191927 DV40DA204150M DA200 21 150 38 30 LNA204M OEW19M 54 SS038031G 2mm & 5/64 54 1,06 NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I62. DA non-pullout collets, see page I65. For retention knobs, see page J33. F20 WIDIA
