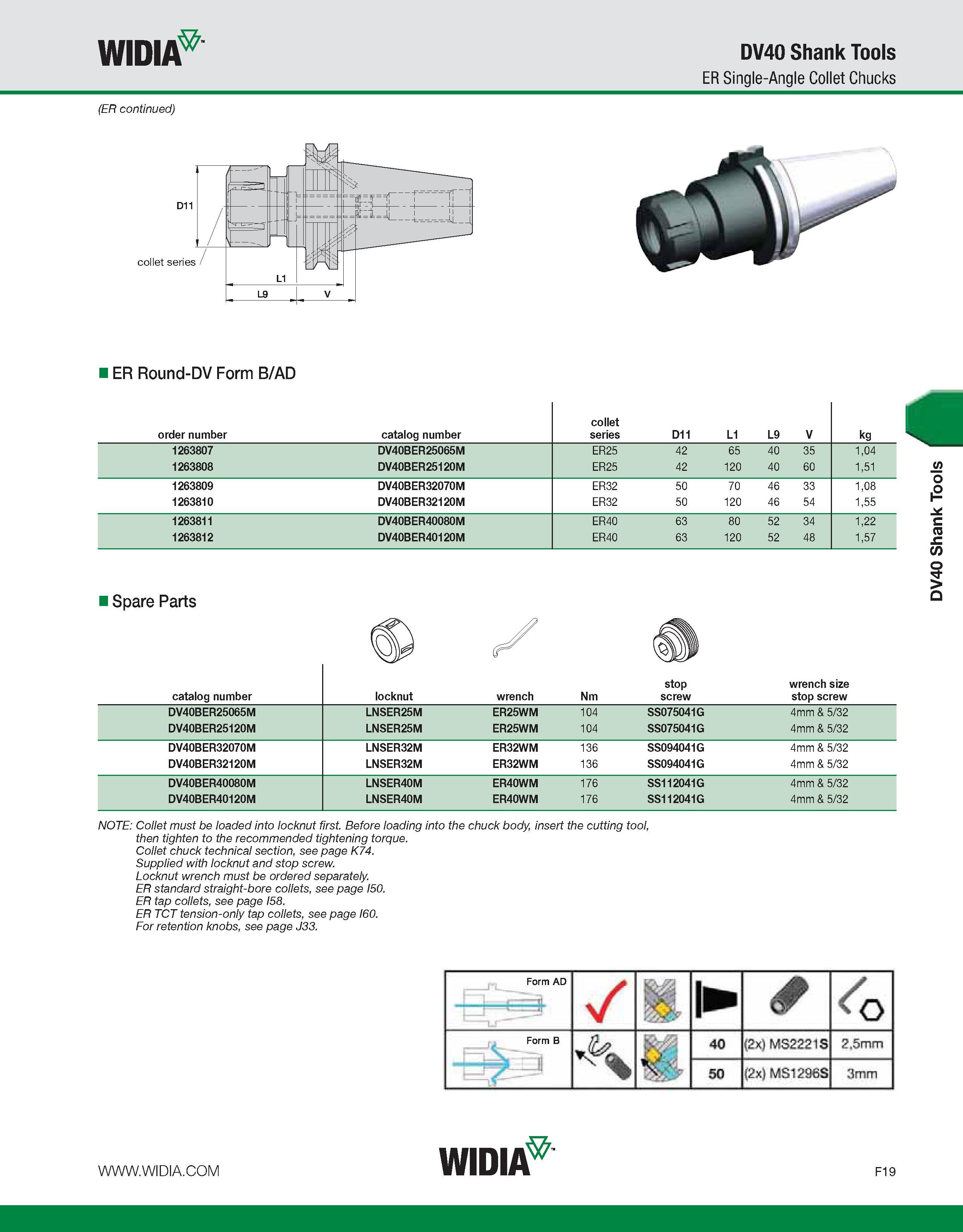

WIDIA DV40 Shank Tools ER Single-Angle Collet Chucks (ER continued) I ER Round-DV Form B/AD order number catalog number collet series D11 L1 L9 V kg 1263807 DV40BER25065M ER25 42 65 40 35 1,04 1263808 DV40BER25120M ER25 42 120 40 60 1,51 1263809 DV40BER32070M ER32 50 70 46 33 1,08 1263810 DV40BER32120M ER32 50 120 46 54 1,55 1263811 DV40BER40080M ER40 63 80 52 34 1,22 1263812 DV40BER40120M ER40 63 120 52 48 1,57 Spare Parts catalog number locknut wrench Nm stop screw wrench size stop screw DV40BER25065M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 DV40BER25120M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 DV40BER32070M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 DV40BER32120M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 DV40BER40080M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 DV40BER40120M LNSER40M ER40WM 176 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. For retention knobs, see page J33. WIDIA F19 DV40 Shank Tools
