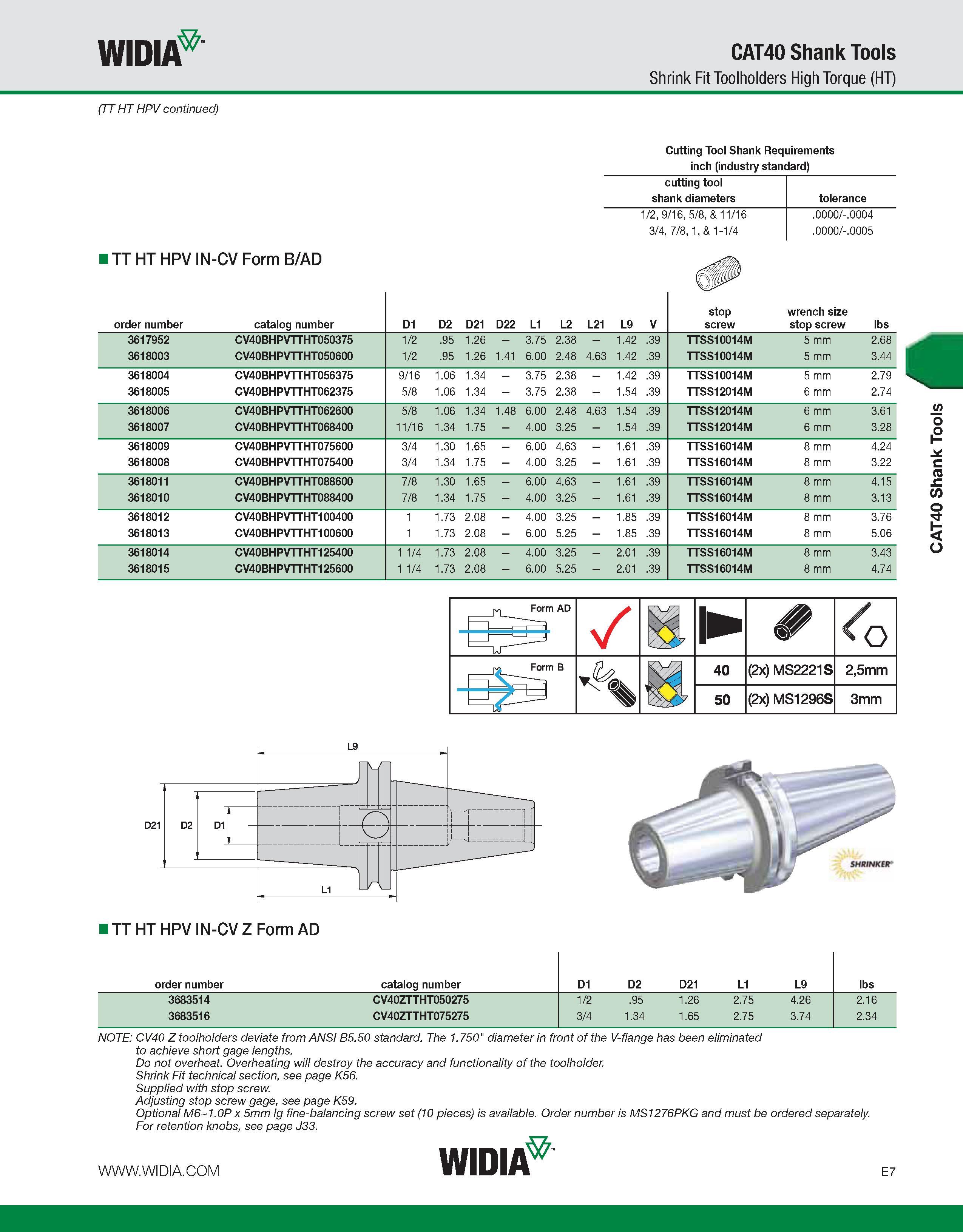

WIDIA CAT40 Shank Tools Shrink Fit Toolholders High Torque (HT) (TT HT HPV continued) I TT HT HPV IN-CV Form B/AD Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, & 1-1/4 .0000/-.0005 order number catalog number D1 D2 D21 D22 L1 L2 L21 L9 V stop screw wrench size stop screw lbs 3617952 CV40BHPVTTHT050375 1/2 .95 1.26 - 3.75 2.38 - 1.42 .39 TTSS10014M 5 mm 2.68 3618003 CV40BHPVTTHT050600 1/2 .95 1.26 1.41 6.00 2.48 4.63 1.42 .39 TTSS10014M 5 mm 3.44 3618004 CV40BHPVTTHT056375 9/16 1.06 1.34 - 3.75 2.38 - 1.42 .39 TTSS10014M 5 mm 2.79 3618005 CV40BHPVTTHT062375 5/8 1.06 1.34 - 3.75 2.38 - 1.54 .39 TTSS12014M 6 mm 2.74 3618006 CV40BHPVTTHT062600 5/8 1.06 1.34 1.48 6.00 2.48 4.63 1.54 .39 TTSS12014M 6 mm 3.61 3618007 CV40BHPVTTHT068400 11/16 1.34 1.75 - 4.00 3.25 - 1.54 .39 TTSS12014M 6 mm 3.28 3618009 CV40BHPVTTHT075600 3/4 1.30 1.65 - 6.00 4.63 - 1.61 .39 TTSS16014M 8 mm 4.24 3618008 CV40BHPVTTHT075400 3/4 1.34 1.75 - 4.00 3.25 - 1.61 .39 TTSS16014M 8 mm 3.22 3618011 CV40BHPVTTHT088600 7/8 1.30 1.65 - 6.00 4.63 - 1.61 .39 TTSS16014M 8 mm 4.15 3618010 CV40BHPVTTHT088400 7/8 1.34 1.75 - 4.00 3.25 - 1.61 .39 TTSS16014M 8 mm 3.13 3618012 CV40BHPVTTHT100400 1 1.73 2.08 - 4.00 3.25 - 1.85 .39 TTSS16014M 8 mm 3.76 3618013 CV40BHPVTTHT100600 1 1.73 2.08 - 6.00 5.25 - 1.85 .39 TTSS16014M 8 mm 5.06 3618014 CV40BHPVTTHT125400 1 1/4 1.73 2.08 - 4.00 3.25 - 2.01 .39 TTSS16014M 8 mm 3.43 3618015 CV40BHPVTTHT125600 1 1/4 1.73 2.08 - 6.00 5.25 - 2.01 .39 TTSS16014M 8 mm 4.74 p- Form AD l <0 p/' Form B 40 (2x) MS2221S 2,5mm 50 (2x) MS1296S 3mm ITT HT HPV IN-CV Z Form AD order number catalog number D1 D2 D21 L1 L9 lbs 3683514 CV40ZTTHT050275 1/2 .95 1.26 2.75 4.26 2.16 3683516 CV40ZTTHT075275 3/4 1.34 1.65 2.75 3.74 2.34 NOTE: CV40 Z toolholders deviate from ANSI B5.50 standard. The 1.750" diameter in front of the V-flange has been eliminated to achieve short gage lengths. Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6 1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33. WIDIA E7 CAT40 Shank Tools
