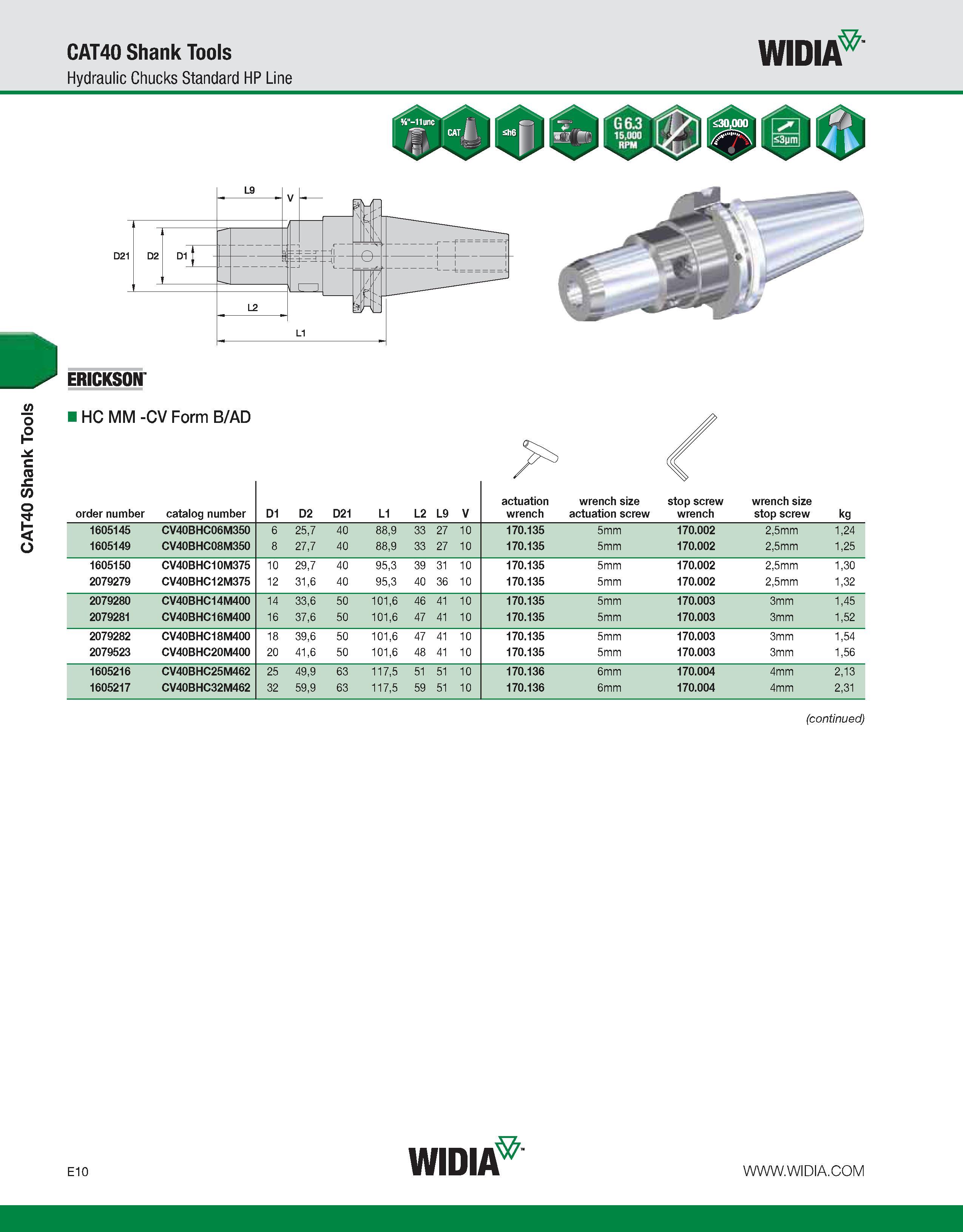

CAT40 Shank Tools CAT40 Shank Tools Hydraulic Chucks Standard HP Line WIDIA ERICKSON HC MM -CV Form B/AD order number catalog number D1 D2 D21 L1 L2 L9 V actuation wrench wrench size actuation screw stop screw wrench wrench size stop screw kg 1605145 CV40BHC06M350 6 25,7 40 88,9 33 27 10 170.135 5mm 170.002 2,5mm 1,24 1605149 CV40BHC08M350 8 27,7 40 88,9 33 27 10 170.135 5mm 170.002 2,5mm 1,25 1605150 CV40BHC10M375 10 29,7 40 95,3 39 31 10 170.135 5mm 170.002 2,5mm 1,30 2079279 CV40BHC12M375 12 31,6 40 95,3 40 36 10 170.135 5mm 170.002 2,5mm 1,32 2079280 CV40BHC14M400 14 33,6 50 101,6 46 41 10 170.135 5mm 170.003 3mm 1,45 2079281 CV40BHC16M400 16 37,6 50 101,6 47 41 10 170.135 5mm 170.003 3mm 1,52 2079282 CV40BHC18M400 18 39,6 50 101,6 47 41 10 170.135 5mm 170.003 3mm 1,54 2079523 CV40BHC20M400 20 41,6 50 101,6 48 41 10 170.135 5mm 170.003 3mm 1,56 1605216 CV40BHC25M462 25 49,9 63 117,5 51 51 10 170.136 6mm 170.004 4mm 2,13 1605217 CV40BHC32M462 32 59,9 63 117,5 59 51 10 170.136 6mm 170.004 4mm 2,31 (continued) E10 WIDIA
