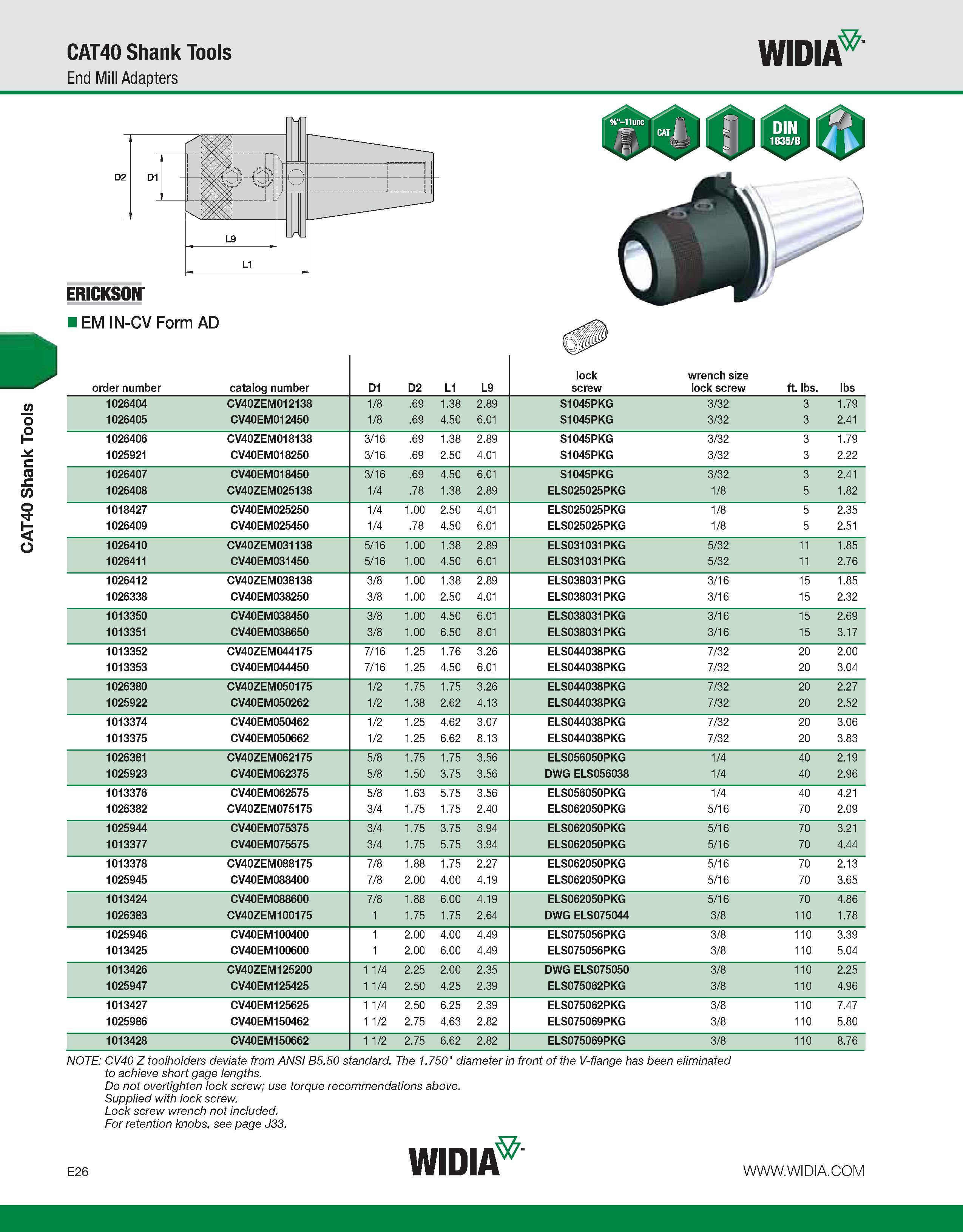

726 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.E26

Каталог WIDIA 2011 Инструментальная оснастка Стр. E26 0726 ENG Lab2u

CAT40 Shank Tools CAT40 Shank Tools End Mill Adapters WIDIA ERICKSON EM IN-CV Form AD order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw ft. lbs. lbs 1026404 CV40ZEM012138 1/8 .69 1.38 2.89 S1045PKG 3/32 3 1.79 1026405 CV40EM012450 1/8 .69 4.50 6.01 S1045PKG 3/32 3 2.41 1026406 CV40ZEM018138 3/16 .69 1.38 2.89 S1045PKG 3/32 3 1.79 1025921 CV40EM018250 3/16 .69 2.50 4.01 S1045PKG 3/32 3 2.22 1026407 CV40EM018450 3/16 .69 4.50 6.01 S1045PKG 3/32 3 2.41 1026408 CV40ZEM025138 1/4 .78 1.38 2.89 ELS025025PKG 1/8 5 1.82 1018427 CV40EM025250 1/4 1.00 2.50 4.01 ELS025025PKG 1/8 5 2.35 1026409 CV40EM025450 1/4 .78 4.50 6.01 ELS025025PKG 1/8 5 2.51 1026410 CV40ZEM031138 5/16 1.00 1.38 2.89 ELS031031PKG 5/32 11 1.85 1026411 CV40EM031450 5/16 1.00 4.50 6.01 ELS031031PKG 5/32 11 2.76 1026412 CV40ZEM038138 3/8 1.00 1.38 2.89 ELS038031PKG 3/16 15 1.85 1026338 CV40EM038250 3/8 1.00 2.50 4.01 ELS038031PKG 3/16 15 2.32 1013350 CV40EM038450 3/8 1.00 4.50 6.01 ELS038031PKG 3/16 15 2.69 1013351 CV40EM038650 3/8 1.00 6.50 8.01 ELS038031PKG 3/16 15 3.17 1013352 CV40ZEM044175 7/16 1.25 1.76 3.26 ELS044038PKG 7/32 20 2.00 1013353 CV40EM044450 7/16 1.25 4.50 6.01 ELS044038PKG 7/32 20 3.04 1026380 CV40ZEM050175 1/2 1.75 1.75 3.26 ELS044038PKG 7/32 20 2.27 1025922 CV40EM050262 1/2 1.38 2.62 4.13 ELS044038PKG 7/32 20 2.52 1013374 CV40EM050462 1/2 1.25 4.62 3.07 ELS044038PKG 7/32 20 3.06 1013375 CV40EM050662 1/2 1.25 6.62 8.13 ELS044038PKG 7/32 20 3.83 1026381 CV40ZEM062175 5/8 1.75 1.75 3.56 ELS056050PKG 1/4 40 2.19 1025923 CV40EM062375 5/8 1.50 3.75 3.56 DWG ELS056038 1/4 40 2.96 1013376 CV40EM062575 5/8 1.63 5.75 3.56 ELS056050PKG 1/4 40 4.21 1026382 CV40ZEM075175 3/4 1.75 1.75 2.40 ELS062050PKG 5/16 70 2.09 1025944 CV40EM075375 3/4 1.75 3.75 3.94 ELS062050PKG 5/16 70 3.21 1013377 CV40EM075575 3/4 1.75 5.75 3.94 ELS062050PKG 5/16 70 4.44 1013378 CV40ZEM088175 7/8 1.88 1.75 2.27 ELS062050PKG 5/16 70 2.13 1025945 CV40EM088400 7/8 2.00 4.00 4.19 ELS062050PKG 5/16 70 3.65 1013424 CV40EM088600 7/8 1.88 6.00 4.19 ELS062050PKG 5/16 70 4.86 1026383 CV40ZEM100175 1 1.75 1.75 2.64 DWG ELS075044 3/8 110 1.78 1025946 CV40EM100400 1 2.00 4.00 4.49 ELS075056PKG 3/8 110 3.39 1013425 CV40EM100600 1 2.00 6.00 4.49 ELS075056PKG 3/8 110 5.04 1013426 CV40ZEM125200 1 1/4 2.25 2.00 2.35 DWG ELS075050 3/8 110 2.25 1025947 CV40EM125425 1 1/4 2.50 4.25 2.39 ELS075062PKG 3/8 110 4.96 1013427 CV40EM125625 1 1/4 2.50 6.25 2.39 ELS075062PKG 3/8 110 7.47 1025986 CV40EM150462 1 1/2 2.75 4.63 2.82 ELS075069PKG 3/8 110 5.80 1013428 CV40EM150662 1 1/2 2.75 6.62 2.82 ELS075069PKG 3/8 110 8.76 NOTE: CV40 Z toolholders deviate from ANSI B5.50 standard. The 1.750" diameter in front of the V-flange has been eliminated to achieve short gage lengths. Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. E26 WIDIA
