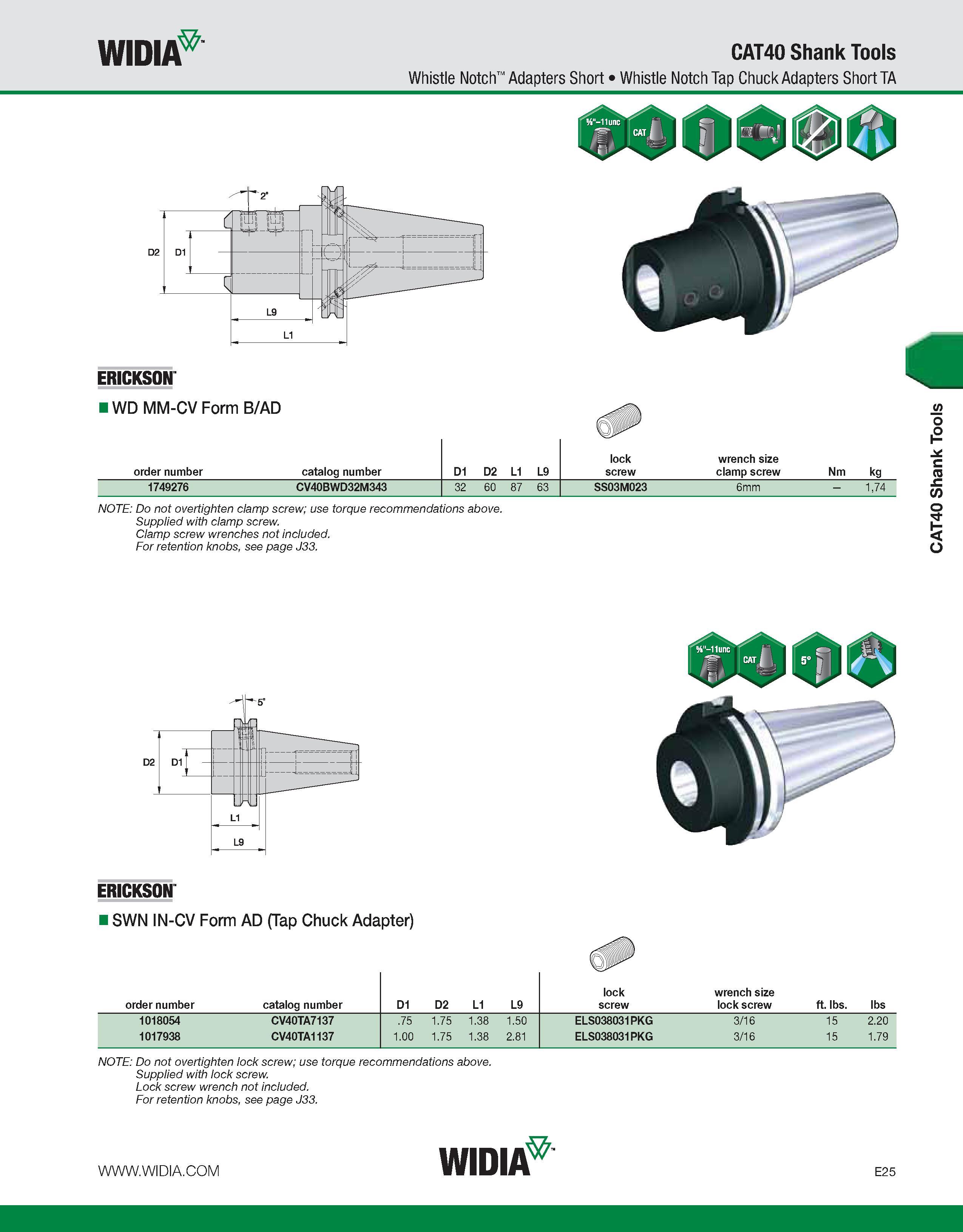

725 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.E25

Каталог WIDIA 2011 Инструментальная оснастка Стр. E25 0725 ENG Lab2u

WIDIA CAT40 Shank Tools Whistle Notch Adapters Short Whistle Notch Tap Chuck Adapters Short TA ERICKSON IWD MM-CV Form B/AD order number catalog number D1 D2 L1 L9 lock screw wrench size clamp screw Nm kg 1749276 CV40BWD32M343 32 60 87 63 SS03M023 6mm - 1,74 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrenches not included. For retention knobs, see page J33. T D2 D1 J _ IT ERICKSON i SWN IN-CV Form AD (Tap Chuck Adapter) order number catalog number D1 D2 L1 L9 lock screw wrench size lock screw ft. lbs. lbs 1018054 CV40TA7137 .75 1.75 1.38 1.50 ELS038031PKG 3/16 15 2.20 1017938 CV40TA1137 1.00 1.75 1.38 2.81 ELS038031PKG 3/16 15 1.79 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. WIDIA E25 CAT40 Shank Tools
