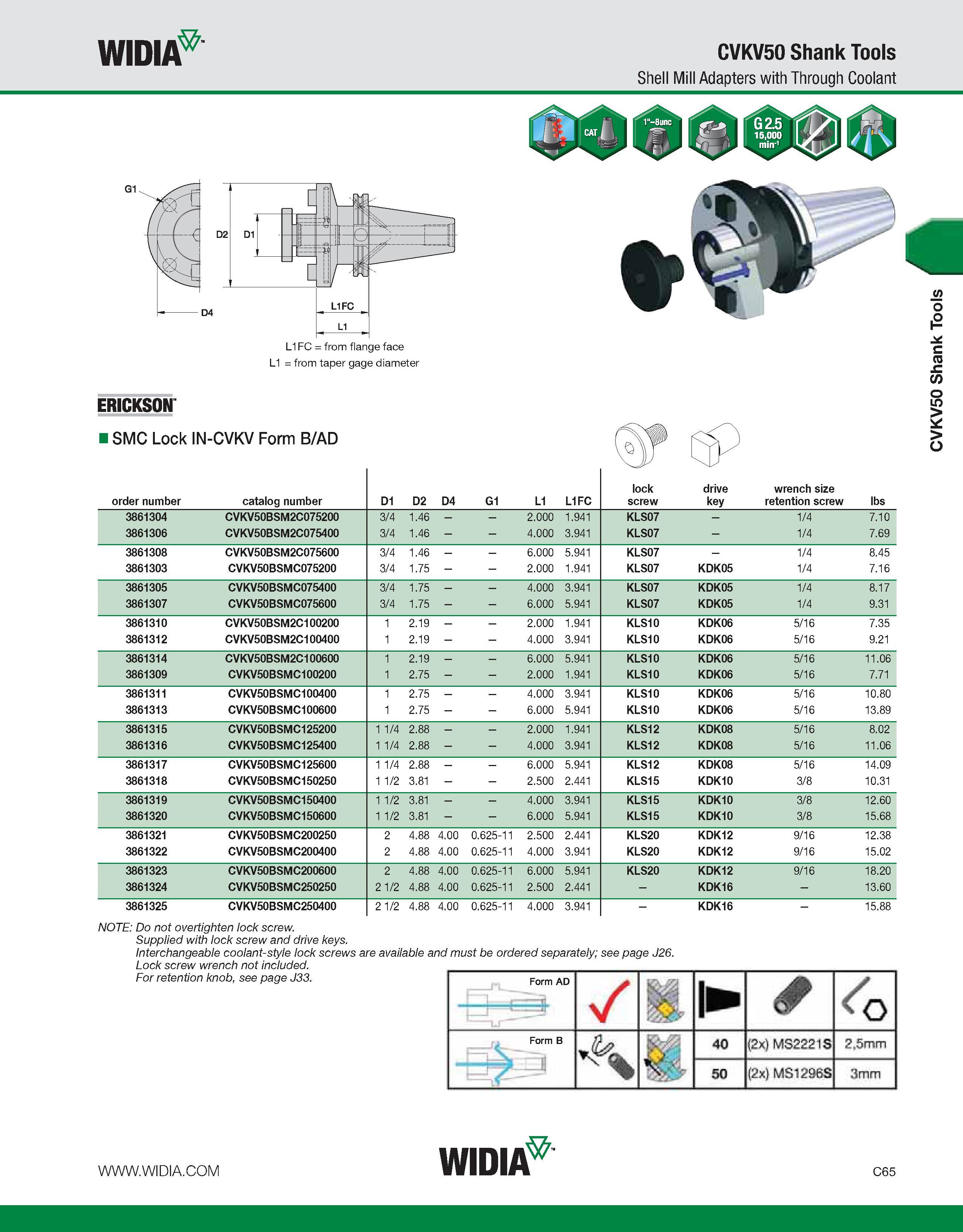

WIDIA CVKV50 Shank Tools Shell Mill Adapters with Through Coolant L1 = from taper gage diameter ERICKSON I SMC Lock IN-CVKV Form B/AD order number catalog number D1 D2 D4 G1 L1 L1FC lock screw drive key wrench size retention screw lbs 3861304 CVKV50BSM2C075200 3/4 1.46 2.000 1.941 KLS07 - 1/4 7.10 3861306 CVKV50BSM2C075400 3/4 1.46 4.000 3.941 KLS07 - 1/4 7.69 3861308 CVKV50BSM2C075600 3/4 1.46 6.000 5.941 KLS07 - 1/4 8.45 3861303 CVKV50BSMC075200 3/4 1.75 2.000 1.941 KLS07 KDK05 1/4 7.16 3861305 CVKV50BSMC075400 3/4 1.75 4.000 3.941 KLS07 KDK05 1/4 8.17 3861307 CVKV50BSMC075600 3/4 1.75 6.000 5.941 KLS07 KDK05 1/4 9.31 3861310 CVKV50BSM2C100200 1 2.19 2.000 1.941 KLS10 KDK06 5/16 7.35 3861312 CVKV50BSM2C100400 1 2.19 4.000 3.941 KLS10 KDK06 5/16 9.21 3861314 CVKV50BSM2C100600 1 2.19 6.000 5.941 KLS10 KDK06 5/16 11.06 3861309 CVKV50BSMC100200 1 2.75 2.000 1.941 KLS10 KDK06 5/16 7.71 3861311 CVKV50BSMC100400 1 2.75 4.000 3.941 KLS10 KDK06 5/16 10.80 3861313 CVKV50BSMC100600 1 2.75 6.000 5.941 KLS10 KDK06 5/16 13.89 3861315 CVKV50BSMC125200 1 1/4 2.88 2.000 1.941 KLS12 KDK08 5/16 8.02 3861316 CVKV50BSMC125400 1 1/4 2.88 4.000 3.941 KLS12 KDK08 5/16 11.06 3861317 CVKV50BSMC125600 1 1/4 2.88 6.000 5.941 KLS12 KDK08 5/16 14.09 3861318 CVKV50BSMC150250 1 1/2 3.81 2.500 2.441 KLS15 KDK10 3/8 10.31 3861319 CVKV50BSMC150400 1 1/2 3.81 4.000 3.941 KLS15 KDK10 3/8 12.60 3861320 CVKV50BSMC150600 1 1/2 3.81 6.000 5.941 KLS15 KDK10 3/8 15.68 3861321 CVKV50BSMC200250 2 4.88 4.00 0.625-11 2.500 2.441 KLS20 KDK12 9/16 12.38 3861322 CVKV50BSMC200400 2 4.88 4.00 0.625-11 4.000 3.941 KLS20 KDK12 9/16 15.02 3861323 CVKV50BSMC200600 2 4.88 4.00 0.625-11 6.000 5.941 KLS20 KDK12 9/16 18.20 3861324 CVKV50BSMC250250 2 1/2 4.88 4.00 0.625-11 2.500 2.441 - KDK16 - 13.60 3861325 CVKV50BSMC250400 2 1/2 4.88 4.00 0.625-11 4.000 3.941 - KDK16 - 15.88 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For retention knob, see page J33. CVKV50 Shank Tools
