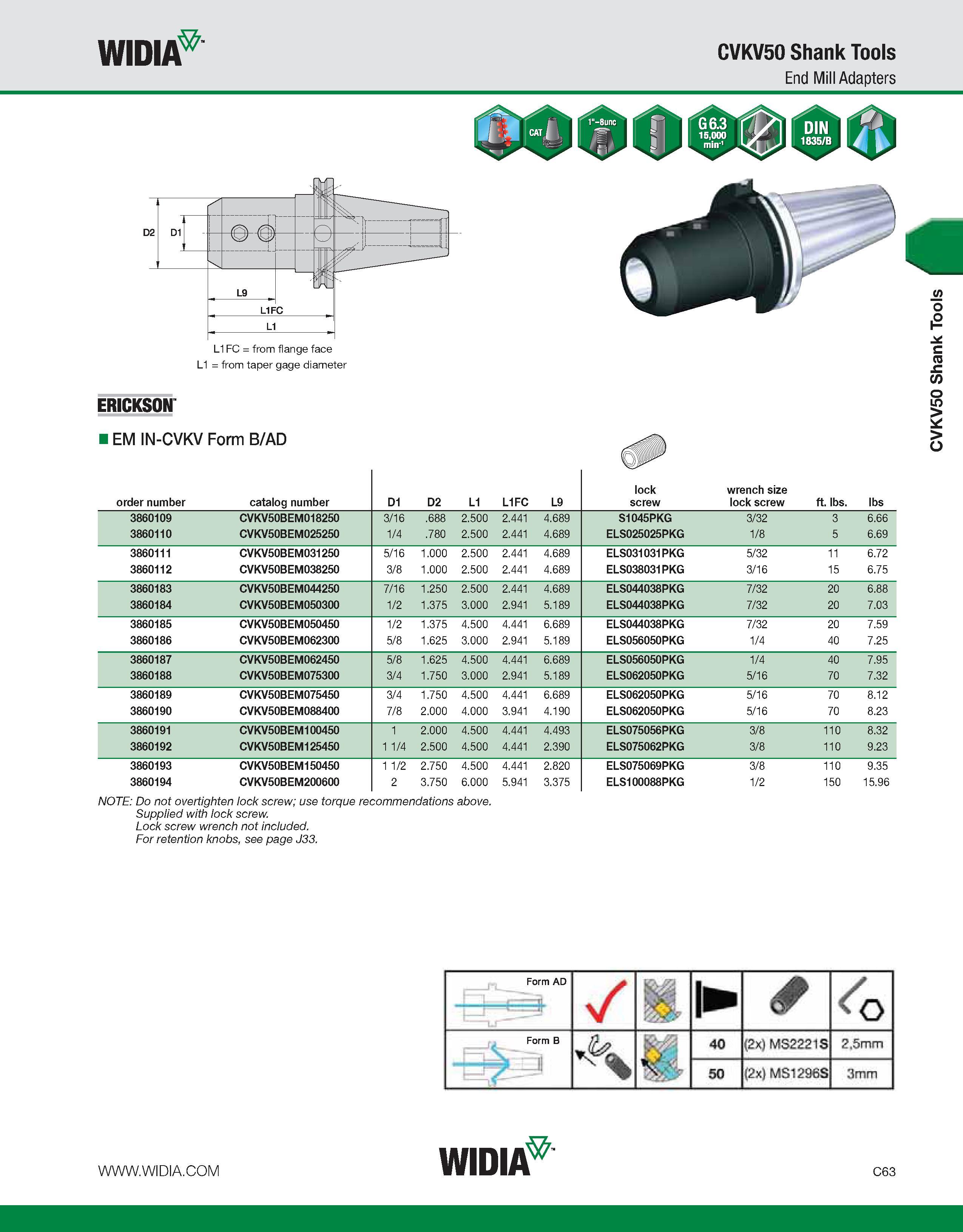

WIDIA CVKV50 Shank Tools End Mill Adapters L1 = from taper gage diameter ERICKSON I EM IN-CVKV Form B/AD order number catalog number D1 D2 L1 L1FC L9 lock screw wrench size lock screw ft. lbs. lbs 3860109 CVKV50BEM018250 3/16 .688 2.500 2.441 4.689 S1045PKG 3/32 3 6.66 3860110 CVKV50BEM025250 1/4 .780 2.500 2.441 4.689 ELS025025PKG 1/8 5 6.69 3860111 CVKV50BEM031250 5/16 1.000 2.500 2.441 4.689 ELS031031PKG 5/32 11 6.72 3860112 CVKV50BEM038250 3/8 1.000 2.500 2.441 4.689 ELS038031PKG 3/16 15 6.75 3860183 CVKV50BEM044250 7/16 1.250 2.500 2.441 4.689 ELS044038PKG 7/32 20 6.88 3860184 CVKV50BEM050300 1/2 1.375 3.000 2.941 5.189 ELS044038PKG 7/32 20 7.03 3860185 CVKV50BEM050450 1/2 1.375 4.500 4.441 6.689 ELS044038PKG 7/32 20 7.59 3860186 CVKV50BEM062300 5/8 1.625 3.000 2.941 5.189 ELS056050PKG 1/4 40 7.25 3860187 CVKV50BEM062450 5/8 1.625 4.500 4.441 6.689 ELS056050PKG 1/4 40 7.95 3860188 CVKV50BEM075300 3/4 1.750 3.000 2.941 5.189 ELS062050PKG 5/16 70 7.32 3860189 CVKV50BEM075450 3/4 1.750 4.500 4.441 6.689 ELS062050PKG 5/16 70 8.12 3860190 CVKV50BEM088400 7/8 2.000 4.000 3.941 4.190 ELS062050PKG 5/16 70 8.23 3860191 CVKV50BEM100450 1 2.000 4.500 4.441 4.493 ELS075056PKG 3/8 110 8.32 3860192 CVKV50BEM125450 1 1/4 2.500 4.500 4.441 2.390 ELS075062PKG 3/8 110 9.23 3860193 CVKV50BEM150450 1 1/2 2.750 4.500 4.441 2.820 ELS075069PKG 3/8 110 9.35 3860194 CVKV50BEM200600 2 3.750 6.000 5.941 3.375 ELS100088PKG 1/2 150 15.96 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. Form AD -1 j H, I
