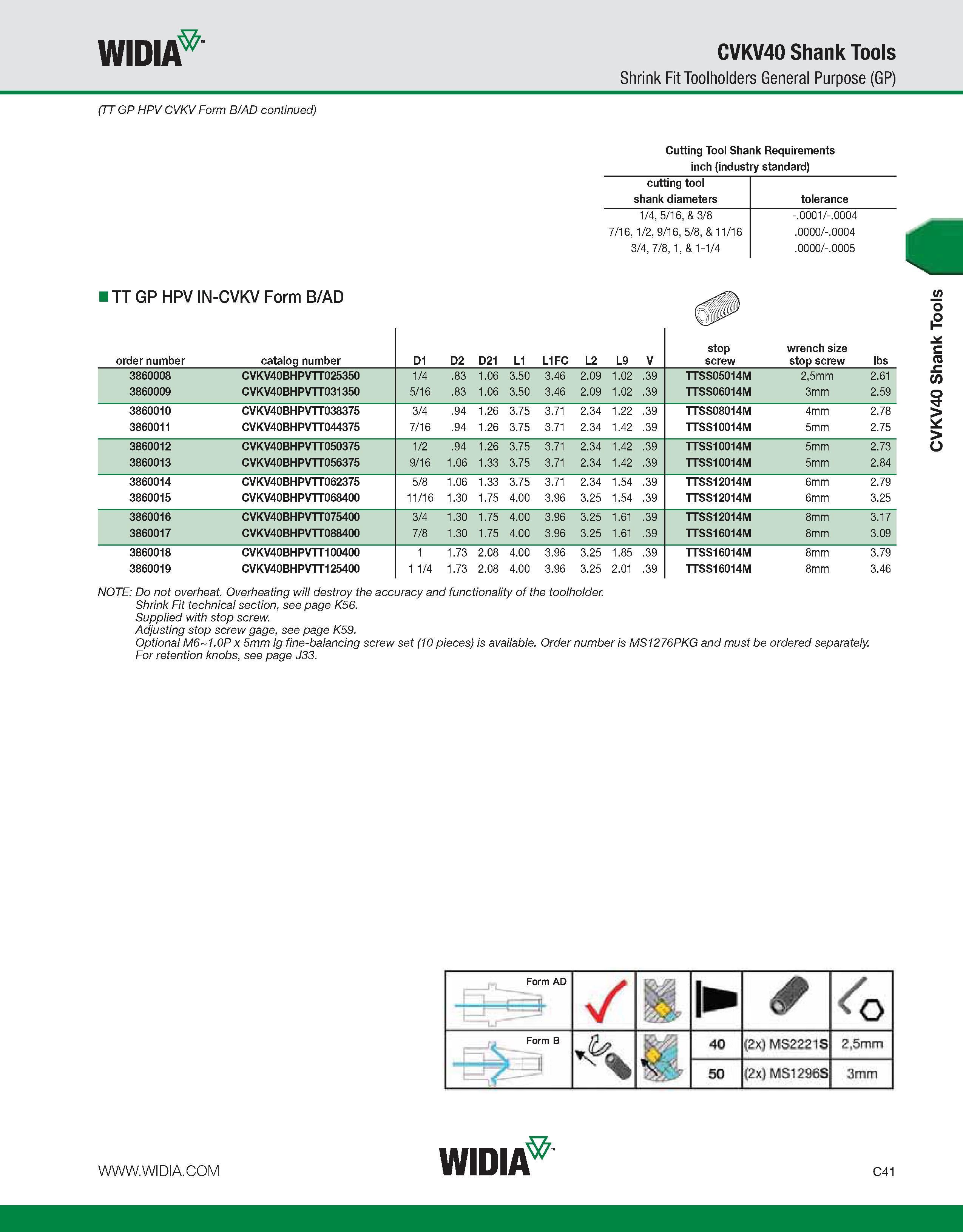

WIDIA CVKV40 Shank Tools Shrink Fit Toolholders General Purpose (GP) (TT GP HPV CVKV Form B/AD continued) I TT GP HPV IN-CVKV Form B/AD Cutting Tool Shank Requirements inch (industry standard) cutting tool shank diameters tolerance 1/4, 5/16, & 3/8 -.0001/-.0004 7/16, 1/2, 9/16, 5/8, & 11/16 .0000/-.0004 3/4, 7/8, 1, & 1-1/4 .0000/-.0005 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Shrink Fit technical section, see page K56. Supplied with stop screw. Adjusting stop screw gage, see page K59. Optional M6 1.0P x 5mm lg fine-balancing screw set (10 pieces) is available. Order number is MS1276PKG and must be ordered separately. For retention knobs, see page J33. Form AD -I j H ► <0 Form B 40 <2x) MS2221S 3,5mm 50 2a Msi2aes 3mm C41 CVKV40 Shank Tools
