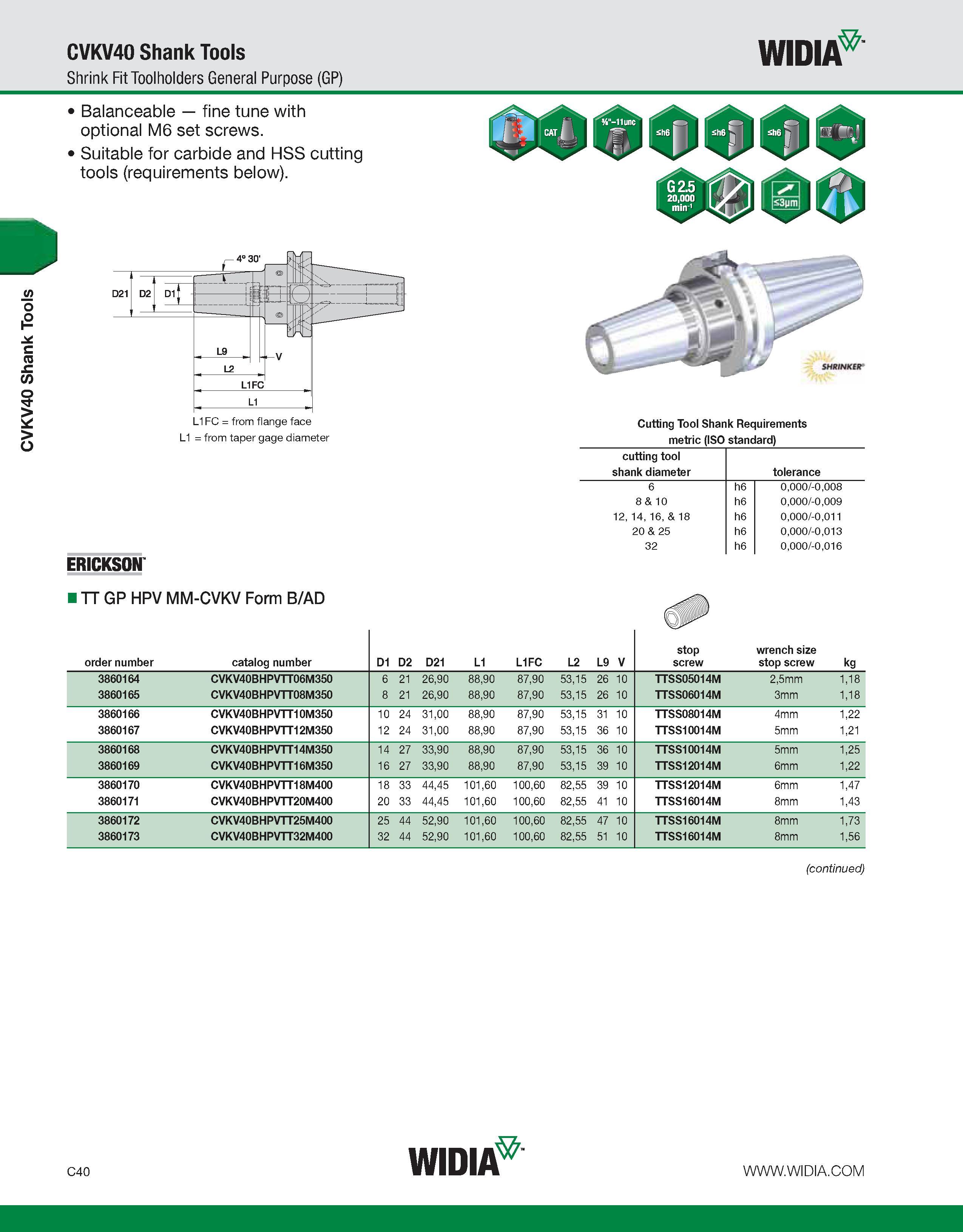

580 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.C40

Каталог WIDIA 2011 Инструментальная оснастка Стр. C40 0580 ENG Lab2u

CVKV40 Shank Tools CVKV40 Shank Tools Shrink Fit Toolholders General Purpose (GP) WIDIA Balanceable - fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools (requirements below). r 4° 30' D21 D2 _ D1 L9 L2 L1FC L1FC = from flange face L1 = from taper gage diameter Cutting Tool Shank Requirements metric (ISO standard) ERICKSON cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 I TT GP HPV MM-CVKV Form B/AD order number catalog number D1 D2 D21 L1 L1FC L2 L9 V stop screw wrench size stop screw kg 3860164 CVKV40BHPVTT06M350 6 21 26,90 88,90 87,90 53,15 26 10 TTSS05014M 2,5mm 1,18 3860165 CVKV40BHPVTT08M350 8 21 26,90 88,90 87,90 53,15 26 10 TTSS06014M 3mm 1,18 3860166 CVKV40BHPVTT10M350 10 24 31,00 88,90 87,90 53,15 31 10 TTSS08014M 4mm 1,22 3860167 CVKV40BHPVTT12M350 12 24 31,00 88,90 87,90 53,15 36 10 TTSS10014M 5mm 1,21 3860168 CVKV40BHPVTT14M350 14 27 33,90 88,90 87,90 53,15 36 10 TTSS10014M 5mm 1,25 3860169 CVKV40BHPVTT16M350 16 27 33,90 88,90 87,90 53,15 39 10 TTSS12014M 6mm 1,22 3860170 CVKV40BHPVTT18M400 18 33 44,45 101,60 100,60 82,55 39 10 TTSS12014M 6mm 1,47 3860171 CVKV40BHPVTT20M400 20 33 44,45 101,60 100,60 82,55 41 10 TTSS16014M 8mm 1,43 3860172 CVKV40BHPVTT25M400 25 44 52,90 101,60 100,60 82,55 47 10 TTSS16014M 8mm 1,73 3860173 CVKV40BHPVTT32M400 32 44 52,90 101,60 100,60 82,55 51 10 TTSS16014M 8mm 1,56 (continued) C40 WIDIA
