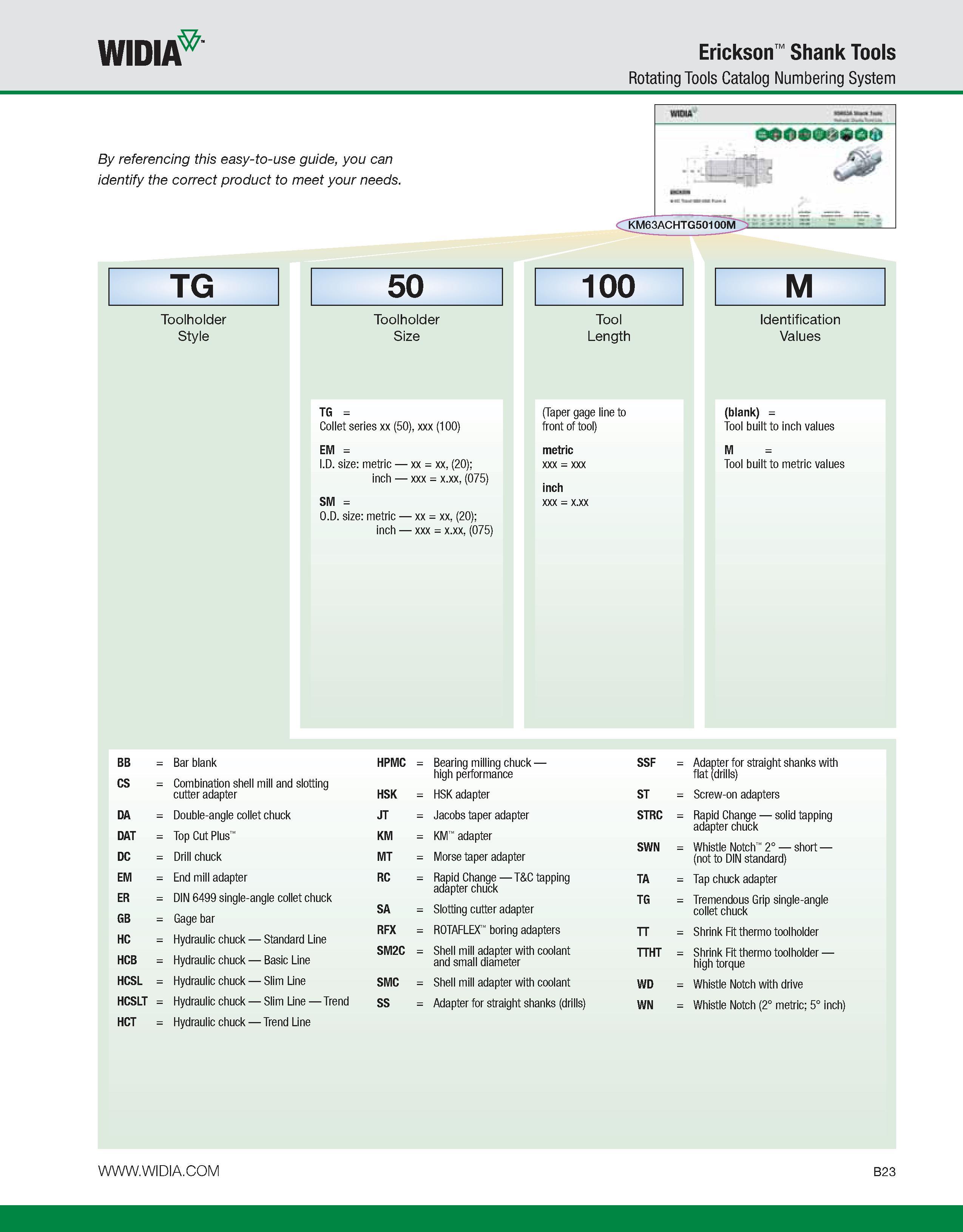

WIDIA Erickson Shank Tools Rotating Tools Catalog Numbering System By referencing this easy-to-use guide, you can identify the correct product to meet your needs. KM63ACHTG50100M 50 100 M Toolholder Size TG = Collet series xx (50), xxx (100) EM = I.D. size: metric xx = xx, (20); inch xxx = x.xx, (075) SM = O.D. size: metric xx = xx, (20); inch xxx = x.xx, (075) Tool Length (Taper gage line to front of tool) metric xxx = xxx inch xxx = x.xx Identification Values (blank) = Tool built to inch values M = Tool built to metric values BB = Bar blank CS = Combination shell mill and slotting cutter adapter DA = Double-angle collet chuck DAT = Top Cut Plus DC = Drill chuck EM = End mill adapter ER = DIN 6499 single-angle collet chuck GB = Gage bar HC = Hydraulic chuck Standard Line HCB = Hydraulic chuck Basic Line HCSL = Hydraulic chuck Slim Line HCSLT = Hydraulic chuck Slim Line Trend HCT = Hydraulic chuck Trend Line HPMC = Bearing milling chuck high performance HSK = HSK adapter JT = Jacobs taper adapter KM = KM adapter MT = Morse taper adapter RC = Rapid Change T&C tapping adapter chuck SA = Slotting cutter adapter RFX = ROTAFLEX boring adapters SM2C = Shell mill adapter with coolant and small diameter SMC = Shell mill adapter with coolant SS = Adapter for straight shanks (drills) SSF = Adapter for straight shanks with flat (drills) ST = Screw-on adapters STRC = Rapid Change solid tapping adapter chuck SWN = Whistle Notch 2° short (not to DIN standard) TA = Tap chuck adapter TG = Tremendous Grip single-angle collet chuck TT = Shrink Fit thermo toolholder TTHT = Shrink Fit thermo toolholder high torque WD = Whistle Notch with drive WN = Whistle Notch (2° metric; 5° inch) B23
