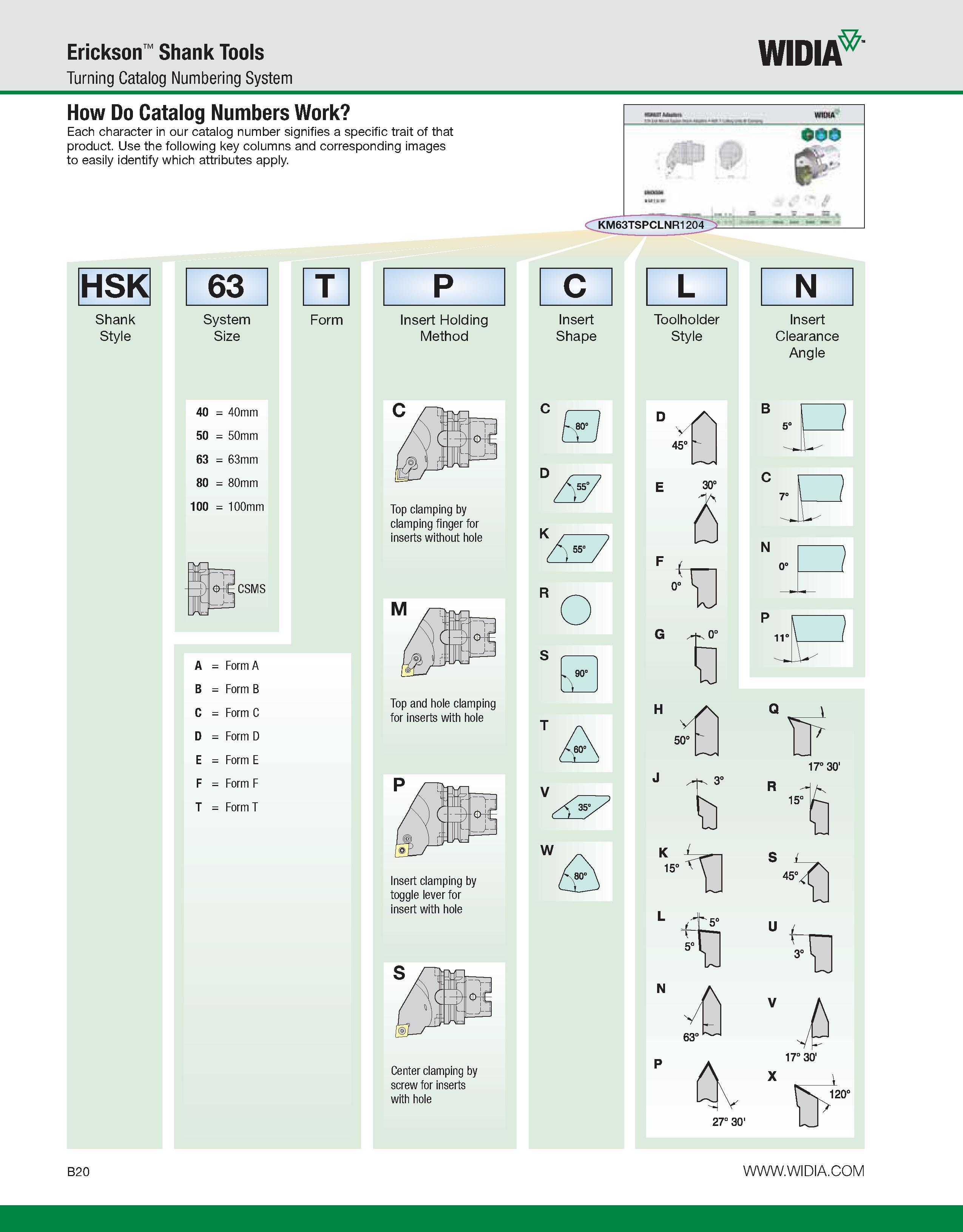

Erickson Shank Tools Turning Catalog Numbering System WIDIA How Do Catalog Numbers Work Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. HSK 63 T P C L N Shank Style System Size 40 = 40mm 50 = 50mm 63 = 63mm 80 = 80mm 100 = 100mm CSMS A B C D E F T Form A Form B Form C Form D Form E Form F Form T Form Insert Holding Method C Top clamping by clamping finger for inserts without hole M Top and hole clamping for inserts with hole P Insert clamping by toggle lever for insert with hole Center clamping by screw for inserts with hole Insert Shape C K R 90° V W Toolholder Style D 45' E 30° F f G o1 H 50' J 3' K 15° A 63° Q 17° 30' 15° 45° 17° 30' 27° 30' 120° > B20 D S T
