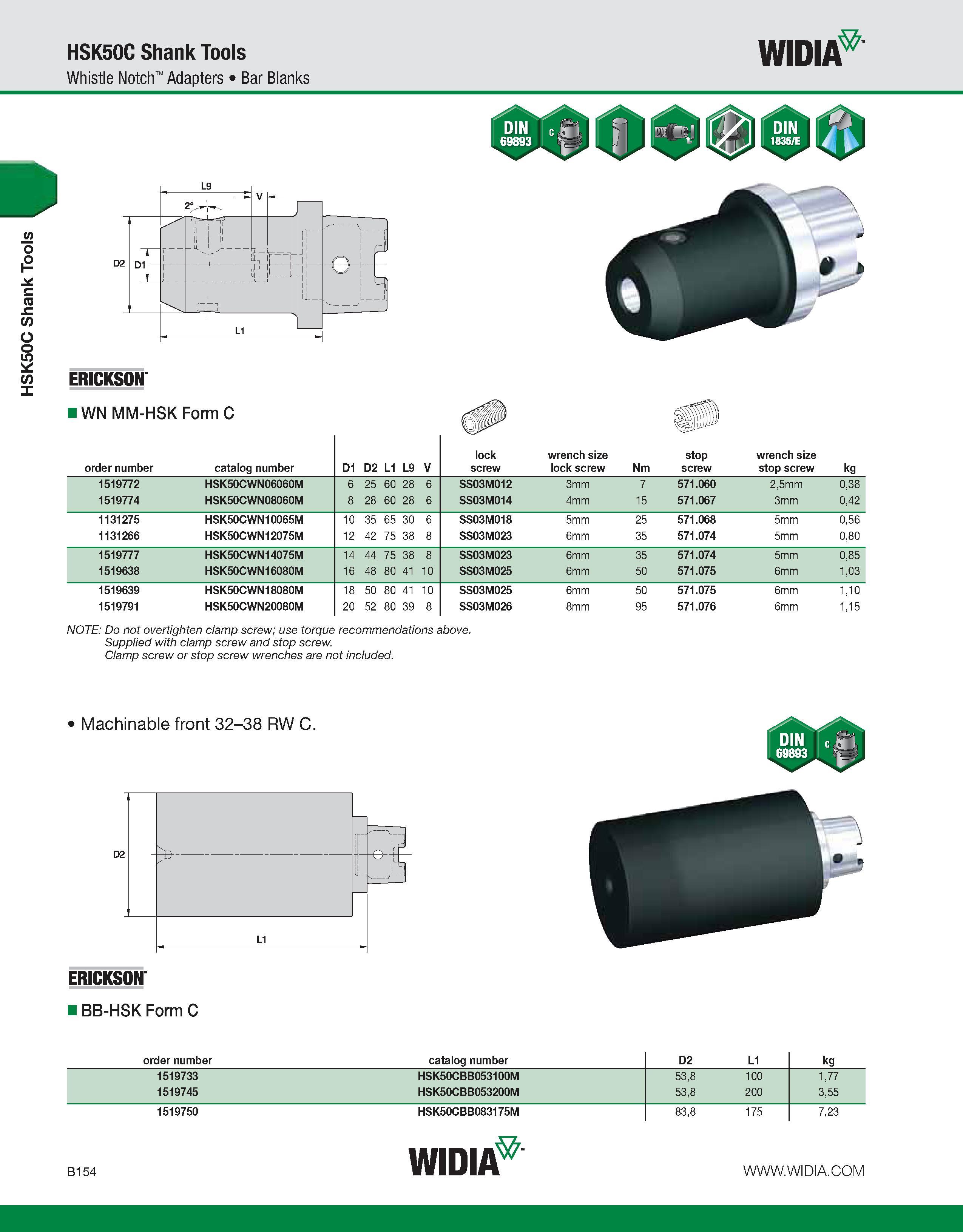

HSK50C Shank Tools HSK50C Shank Tools Whistle Notch Adapters Bar Blanks WIDIA ERICKSON IWN MM-HSK Form C order number catalog number D1 D2 L1 L9 V lock screw wrench size lock screw Nm stop screw wrench size stop screw kg 1519772 HSK50CWN06060M 6 25 60 28 6 SS03M012 3mm 7 571.060 2,5mm 0,38 1519774 HSK50CWN08060M 8 28 60 28 6 SS03M014 4mm 15 571.067 3mm 0,42 1131275 HSK50CWN10065M 10 35 65 30 6 SS03M018 5mm 25 571.068 5mm 0,56 1131266 HSK50CWN12075M 12 42 75 38 8 SS03M023 6mm 35 571.074 5mm 0,80 1519777 HSK50CWN14075M 14 44 75 38 8 SS03M023 6mm 35 571.074 5mm 0,85 1519638 HSK50CWN16080M 16 48 80 41 10 SS03M025 6mm 50 571.075 6mm 1,03 1519639 HSK50CWN18080M 18 50 80 41 10 SS03M025 6mm 50 571.075 6mm 1,10 1519791 HSK50CWN20080M 20 52 80 39 8 SS03M026 8mm 95 571.076 6mm 1,15 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw and stop screw. Clamp screw or stop screw wrenches are not included. Machinable front 32-38 RW C. ERICKSON BB-HSK Form C order number catalog number D2 L1 kg 1519733 HSK50CBB053100M 53,8 100 1,77 1519745 HSK50CBB053200M 53,8 200 3,55 1519750 HSK50CBB083175M 83,8 175 7,23 B154 WIDIA
