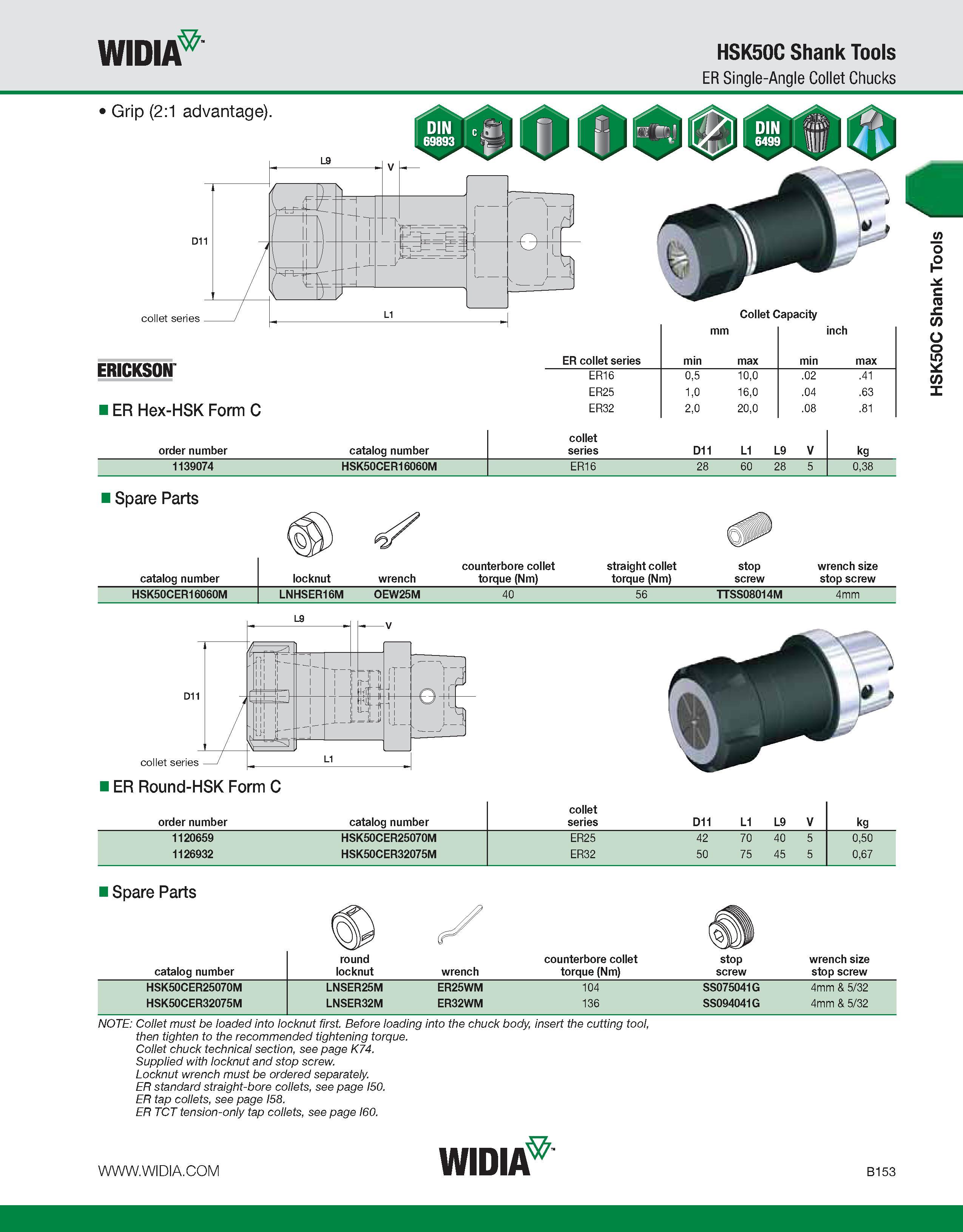

WIDIA HSK50C Shank Tools ER Single-Angle Collet Chucks Grip (2:1 advantage). collet series Collet Capacity mm nch ERICKSON ER collet series min max min max ER16 0,5 10,0 .02 .41 ER25 1,0 16,0 .04 .63 ER Hex-HSK Form C ER32 2,0 20,0 .08 .81 order number catalog number collet series D11 L1 L9 V kg 1139074 HSK50CER16060M ER16 28 60 28 5 0,38 i Spare Parts counterbore collet straight collet stop wrench size catalog number locknut wrench torque (Nm) torque (Nm) screw stop screw HSK50CER16060M LNHSER16M OEW25M 40 56 TTSS08014M 4mm I ER Round-HSK Form C order number catalog number collet series D11 L1 L9 V kg 1120659 HSK50CER25070M ER25 42 70 40 5 0,50 1126932 HSK50CER32075M ER32 50 75 45 5 0,67 Spare Parts round counterbore collet stop wrench size catalog number locknut wrench torque (Nm) screw stop screw HSK50CER25070M LNSER25M ER25WM 104 SS075041G 4mm & 5/32 HSK50CER32075M LNSER32M ER32WM 136 SS094041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. HSK50C Shank Tools
