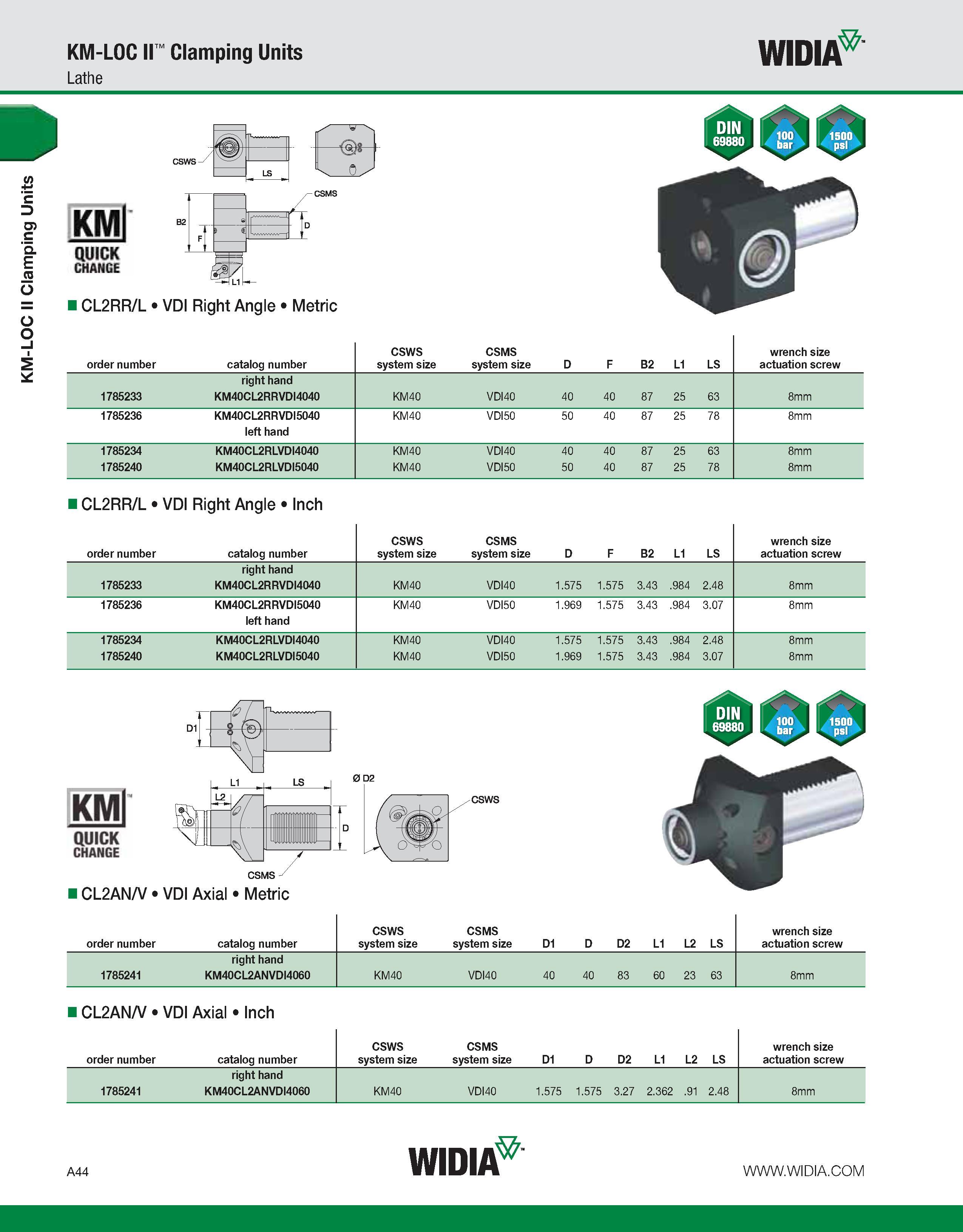

KM-LOC II Clamping Units KM-LOC II Clamping Units Lathe WIDIA KM QUICK CHANCE CL2RR/L VDI Right Angle Metric 0 order number catalog number CSWS system size CSMS system size D F B2 L1 LS wrench size actuation screw 1785233 right hand KM40CL2RRVDI4040 KM40 VDI40 40 40 87 25 63 8mm 1785236 KM40CL2RRVDI5040 left hand KM40 VDI50 50 40 87 25 78 8mm 1785234 KM40CL2RLVDI4040 KM40 VDI40 40 40 87 25 63 8mm 1785240 KM40CL2RLVDI5040 KM40 VDI50 50 40 87 25 78 8mm i CL2RR/L VDI Right Angle Inch order number catalog number CSWS system size CSMS system size D F B2 L1 LS wrench size actuation screw right hand 1785233 KM40CL2RRVDI4040 KM40 VDI40 1.575 1.575 3.43 .984 2.48 8mm 1785236 KM40CL2RRVDI5040 left hand KM40 VDI50 1.969 1.575 3.43 .984 3.07 8mm 1785234 KM40CL2RLVDI4040 KM40 VDI40 1.575 1.575 3.43 .984 2.48 8mm 1785240 KM40CL2RLVDI5040 KM40 VDI50 1.969 1.575 3.43 .984 3.07 8mm KMl QUICK CHANGE ICL2AN/V VDI Axial Metric order number catalog number CSWS system size CSMS system size D1 D D2 L1 L2 LS wrench size actuation screw right hand 1785241 KM40CL2ANVDI4060 KM40 VDI40 40 40 83 60 23 63 8mm CL2AN/V VDI Axial Inch order number catalog number CSWS system size CSMS system size D1 D D2 L1 L2 LS wrench size actuation screw right hand 1785241 KM40CL2ANVDI4060 KM40 VDI40 1.575 1.575 3.27 2.362 .91 2.48 8mm A44 WIDIA
