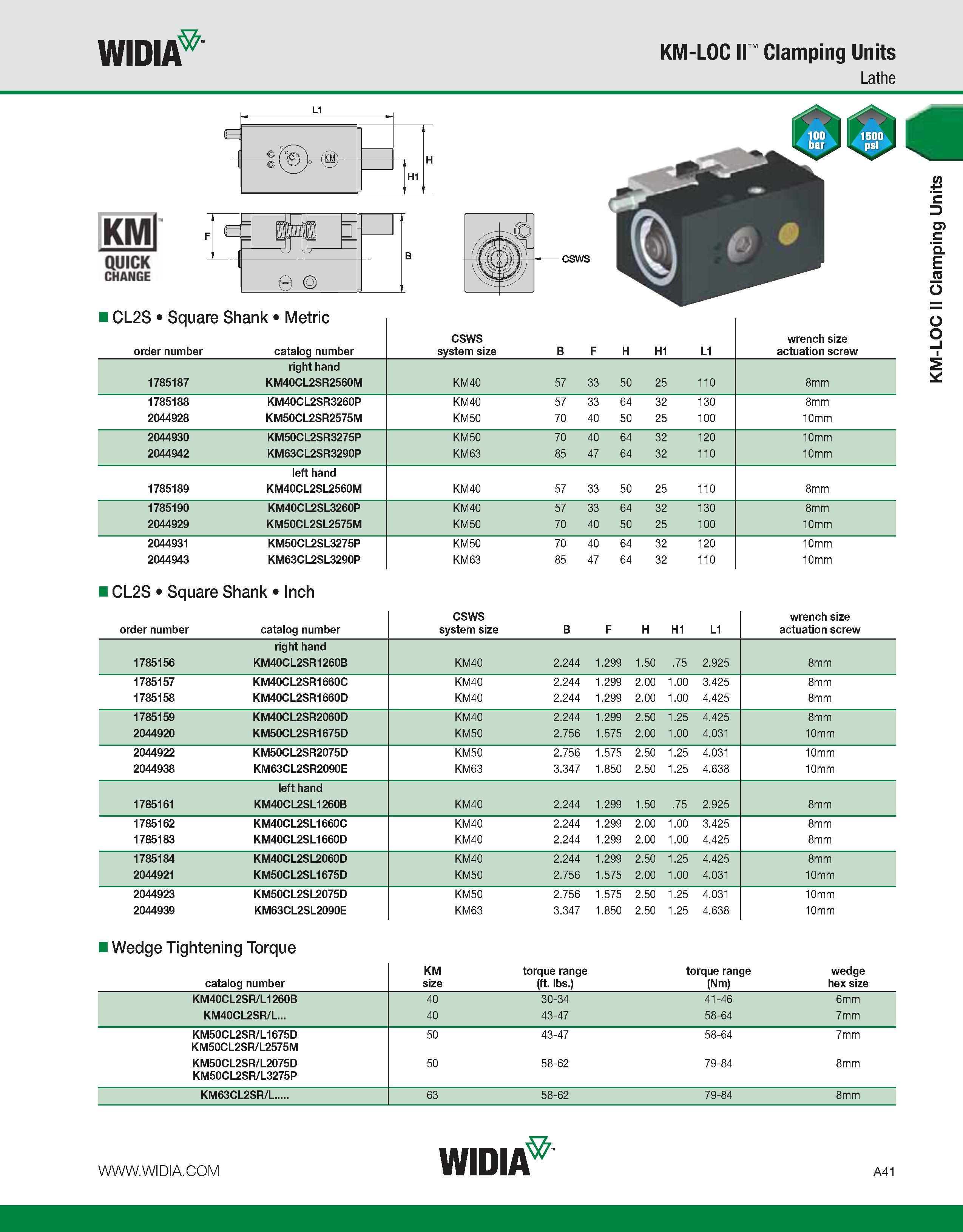

WIDIA KM-LOC II Clamping Units Lathe LA KMl QUICK CHANGE CSWS ICL2S Square Shank Metric order number catalog number CSWS system size B F H H1 L1 wrench size actuation screw 1785187 right hand KM40CL2SR2560M KM40 57 33 50 25 110 8mm 1785188 2044928 KM40CL2SR3260P KM50CL2SR2575M KM40 KM50 57 70 33 40 64 50 32 25 130 100 8mm 10mm 2044930 2044942 KM50CL2SR3275P KM63CL2SR3290P KM50 KM63 70 85 40 47 64 64 32 32 120 110 10mm 10mm 1785189 left hand KM40CL2SL2560M KM40 57 33 50 25 110 8mm 1785190 2044929 KM40CL2SL3260P KM50CL2SL2575M KM40 KM50 57 70 33 40 64 50 32 25 130 100 8mm 10mm 2044931 2044943 KM50CL2SL3275P KM63CL2SL3290P KM50 KM63 70 85 40 47 64 64 32 32 120 110 10mm 10mm CL2S Square Shank Inch order number catalog number CSWS system size B F H H1 L1 wrench size actuation screw 1785156 right hand KM40CL2SR1260B KM40 2.244 1.299 1.50 .75 2.925 8mm 1785157 KM40CL2SR1660C KM40 2.244 1.299 2.00 1.00 3.425 8mm 1785158 KM40CL2SR1660D KM40 2.244 1.299 2.00 1.00 4.425 8mm 1785159 KM40CL2SR2060D KM40 2.244 1.299 2.50 1.25 4.425 8mm 2044920 KM50CL2SR1675D KM50 2.756 1.575 2.00 1.00 4.031 10mm 2044922 KM50CL2SR2075D KM50 2.756 1.575 2.50 1.25 4.031 10mm 2044938 KM63CL2SR2090E KM63 3.347 1.850 2.50 1.25 4.638 10mm 1785161 left hand KM40CL2SL1260B KM40 2.244 1.299 1.50 .75 2.925 8mm 1785162 KM40CL2SL1660C KM40 2.244 1.299 2.00 1.00 3.425 8mm 1785183 KM40CL2SL1660D KM40 2.244 1.299 2.00 1.00 4.425 8mm 1785184 KM40CL2SL2060D KM40 2.244 1.299 2.50 1.25 4.425 8mm 2044921 KM50CL2SL1675D KM50 2.756 1.575 2.00 1.00 4.031 10mm 2044923 KM50CL2SL2075D KM50 2.756 1.575 2.50 1.25 4.031 10mm 2044939 KM63CL2SL2090E KM63 3.347 1.850 2.50 1.25 4.638 10mm Wedge Tightening Torque catalog number KM size torque range (ft. lbs.) torque range (Nm) wedge hex size KM40CL2SR/L1260B 40 30-34 41-46 6mm KM40CL2SR/L... 40 43-47 58-64 7mm KM50CL2SR/L1675D KM50CL2SR/L2575M 50 43-47 58-64 7mm KM50CL2SR/L2075D KM50CL2SR/L3275P 50 58-62 79-84 8mm KM63CL2SR/L 63 58-62 79-84 8mm KM-LOC II Clamping Units
