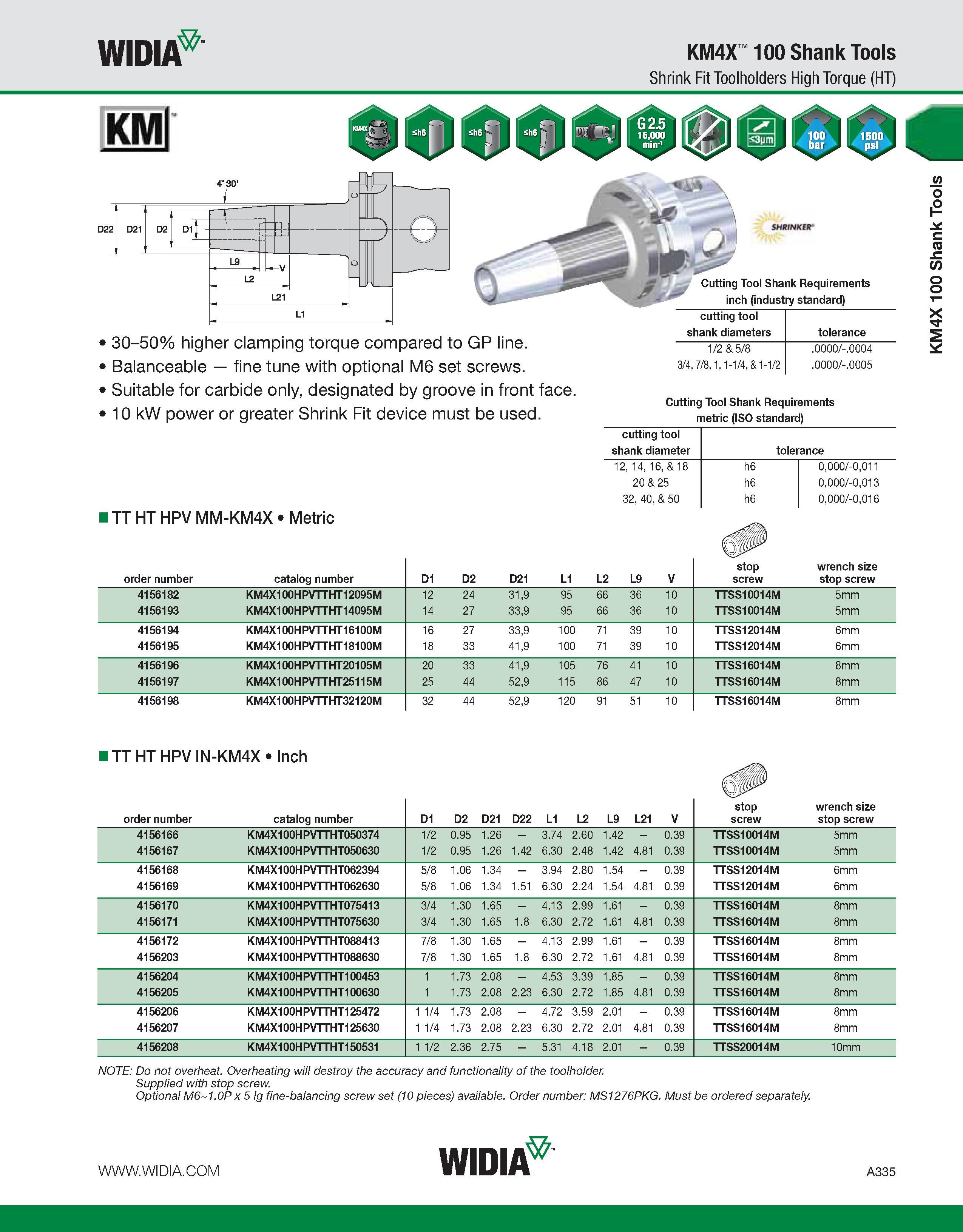

WIDIA KM4X 100 Shank Tools Shrink Fit Toolholders High Torque (HT) KMl Cutting Tool Shank Requirements inch (industry standard) 30-50% higher clamping torque compared to GP line. Balanceable fine tune with optional M6 set screws. Suitable for carbide only, designated by groove in front face. 10 kW power or greater Shrink Fit device must be used. cutting tool shank diameters tolerance 1/2 & 5/8 .0000/-.0004 3/4, 7/8, 1, 1-1/4, & 1-1/2 .0000/-.0005 Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 I TT HT HPV MM-KM4X Metric order number catalog number D1 D2 D21 L1 L2 L9 V stop screw wrench size stop screw 4156182 KM4X100HPVTTHT12095M 12 24 31,9 95 66 36 10 TTSS10014M 5mm 4156193 KM4X100HPVTTHT14095M 14 27 33,9 95 66 36 10 TTSS10014M 5mm 4156194 KM4X100HPVTTHT16100M 16 27 33,9 100 71 39 10 TTSS12014M 6mm 4156195 KM4X100HPVTTHT18100M 18 33 41,9 100 71 39 10 TTSS12014M 6mm 4156196 KM4X100HPVTTHT20105M 20 33 41,9 105 76 41 10 TTSS16014M 8mm 4156197 KM4X100HPVTTHT25115M 25 44 52,9 115 86 47 10 TTSS16014M 8mm 4156198 KM4X100HPVTTHT32120M 32 44 52,9 120 91 51 10 TTSS16014M 8mm TT HT HPV IN-KM4X Inch order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V stop screw wrench size stop screw 4156166 KM4X100HPVTTHT050374 1/2 0.95 1.26 3.74 2.60 1.42 0.39 TTSS10014M 5mm 4156167 KM4X100HPVTTHT050630 1/2 0.95 1.26 1.42 6.30 2.48 1.42 4.81 0.39 TTSS10014M 5mm 4156168 KM4X100HPVTTHT062394 5/8 1.06 1.34 3.94 2.80 1.54 0.39 TTSS12014M 6mm 4156169 KM4X100HPVTTHT062630 5/8 1.06 1.34 1.51 6.30 2.24 1.54 4.81 0.39 TTSS12014M 6mm 4156170 KM4X100HPVTTHT075413 3/4 1.30 1.65 4.13 2.99 1.61 0.39 TTSS16014M 8mm 4156171 KM4X100HPVTTHT075630 3/4 1.30 1.65 1.8 6.30 2.72 1.61 4.81 0.39 TTSS16014M 8mm 4156172 KM4X100HPVTTHT088413 7/8 1.30 1.65 4.13 2.99 1.61 0.39 TTSS16014M 8mm 4156203 KM4X100HPVTTHT088630 7/8 1.30 1.65 1.8 6.30 2.72 1.61 4.81 0.39 TTSS16014M 8mm 4156204 KM4X100HPVTTHT100453 1 1.73 2.08 4.53 3.39 1.85 0.39 TTSS16014M 8mm 4156205 KM4X100HPVTTHT100630 1 1.73 2.08 2.23 6.30 2.72 1.85 4.81 0.39 TTSS16014M 8mm 4156206 KM4X100HPVTTHT125472 1 1/4 1.73 2.08 4.72 3.59 2.01 0.39 TTSS16014M 8mm 4156207 KM4X100HPVTTHT125630 1 1/4 1.73 2.08 2.23 6.30 2.72 2.01 4.81 0.39 TTSS16014M 8mm 4156208 KM4X100HPVTTHT150531 1 1/2 2.36 2.75 5.31 4.18 2.01 0.39 TTSS20014M 10mm NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Optional M6 1.0P x 5 lg fine-balancing screw set (10 pieces) available. Order number: MS1276PKG. Must be ordered separately. KM4X 100 Shank Tools
