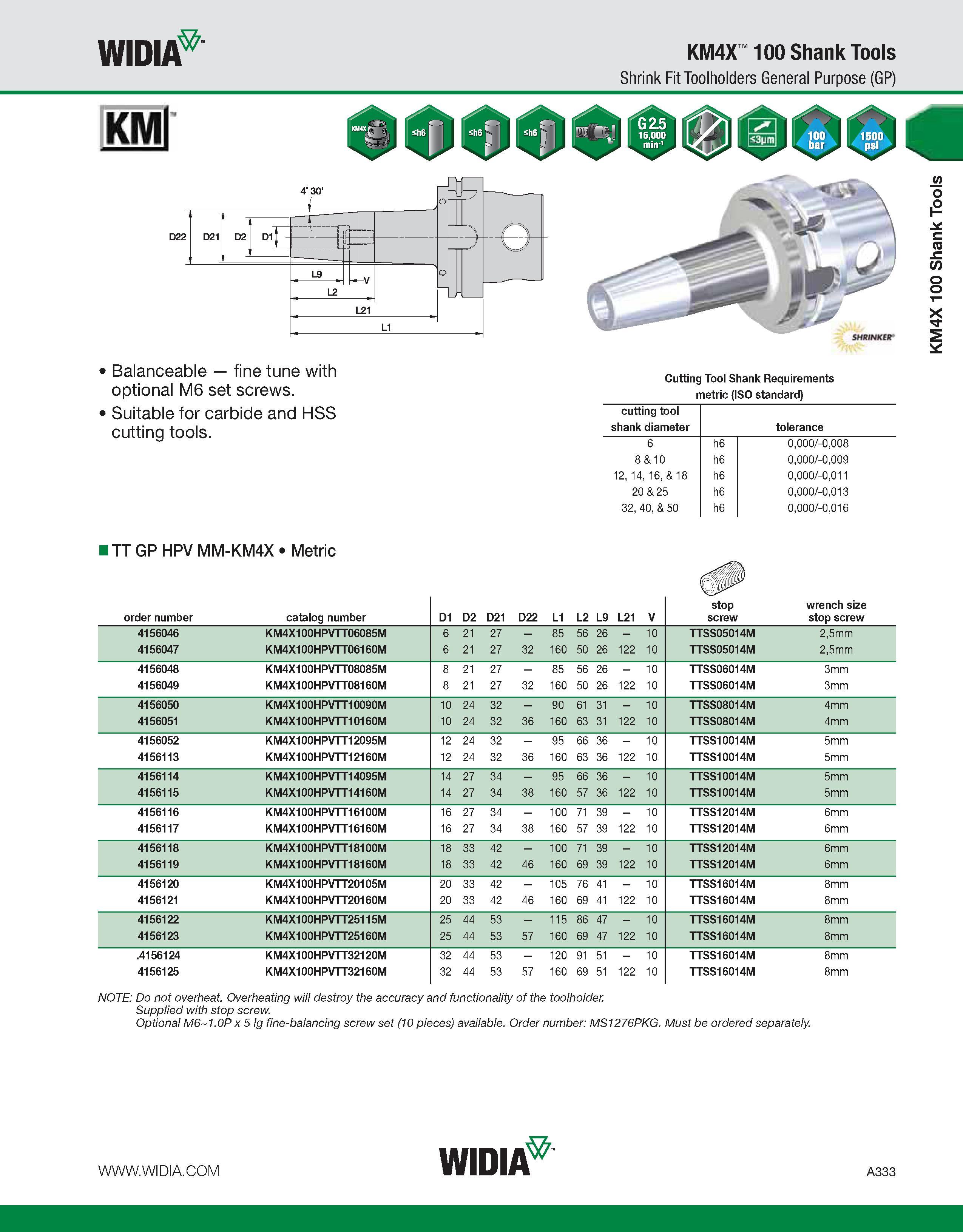

WIDIA KMj Balanceable - fine tune with optional M6 set screws. Suitable for carbide and HSS cutting tools. KM4X 100 Shank Tools Shrink Fit Toolholders General Purpose (GP) Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32, 40, & 50 h6 0,000/-0,016 I TT GP HPV MM-KM4X Metric order number catalog number D1 D2 D21 D22 L1 L2 L9 L21 V stop screw wrench size stop screw 4156046 KM4X100HPVTT06085M 6 21 27 - 85 56 26 - 10 TTSS05014M 2,5mm 4156047 KM4X100HPVTT06160M 6 21 27 32 160 50 26 122 10 TTSS05014M 2,5mm 4156048 KM4X100HPVTT08085M 8 21 27 - 85 56 26 - 10 TTSS06014M 3mm 4156049 KM4X100HPVTT08160M 8 21 27 32 160 50 26 122 10 TTSS06014M 3mm 4156050 KM4X100HPVTT10090M 10 24 32 - 90 61 31 - 10 TTSS08014M 4mm 4156051 KM4X100HPVTT10160M 10 24 32 36 160 63 31 122 10 TTSS08014M 4mm 4156052 KM4X100HPVTT12095M 12 24 32 - 95 66 36 - 10 TTSS10014M 5mm 4156113 KM4X100HPVTT12160M 12 24 32 36 160 63 36 122 10 TTSS10014M 5mm 4156114 KM4X100HPVTT14095M 14 27 34 - 95 66 36 - 10 TTSS10014M 5mm 4156115 KM4X100HPVTT14160M 14 27 34 38 160 57 36 122 10 TTSS10014M 5mm 4156116 KM4X100HPVTT16100M 16 27 34 - 100 71 39 - 10 TTSS12014M 6mm 4156117 KM4X100HPVTT16160M 16 27 34 38 160 57 39 122 10 TTSS12014M 6mm 4156118 KM4X100HPVTT18100M 18 33 42 - 100 71 39 - 10 TTSS12014M 6mm 4156119 KM4X100HPVTT18160M 18 33 42 46 160 69 39 122 10 TTSS12014M 6mm 4156120 KM4X100HPVTT20105M 20 33 42 - 105 76 41 - 10 TTSS16014M 8mm 4156121 KM4X100HPVTT20160M 20 33 42 46 160 69 41 122 10 TTSS16014M 8mm 4156122 KM4X100HPVTT25115M 25 44 53 - 115 86 47 - 10 TTSS16014M 8mm 4156123 KM4X100HPVTT25160M 25 44 53 57 160 69 47 122 10 TTSS16014M 8mm .4156124 KM4X100HPVTT32120M 32 44 53 - 120 91 51 - 10 TTSS16014M 8mm 4156125 KM4X100HPVTT32160M 32 44 53 57 160 69 51 122 10 TTSS16014M 8mm NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. Supplied with stop screw. Optional M6 1.0P x 5 lg fine-balancing screw set (10 pieces) available. Order number: MS1276PKG. Must be ordered separately. KM4X 100 Shank Tools
