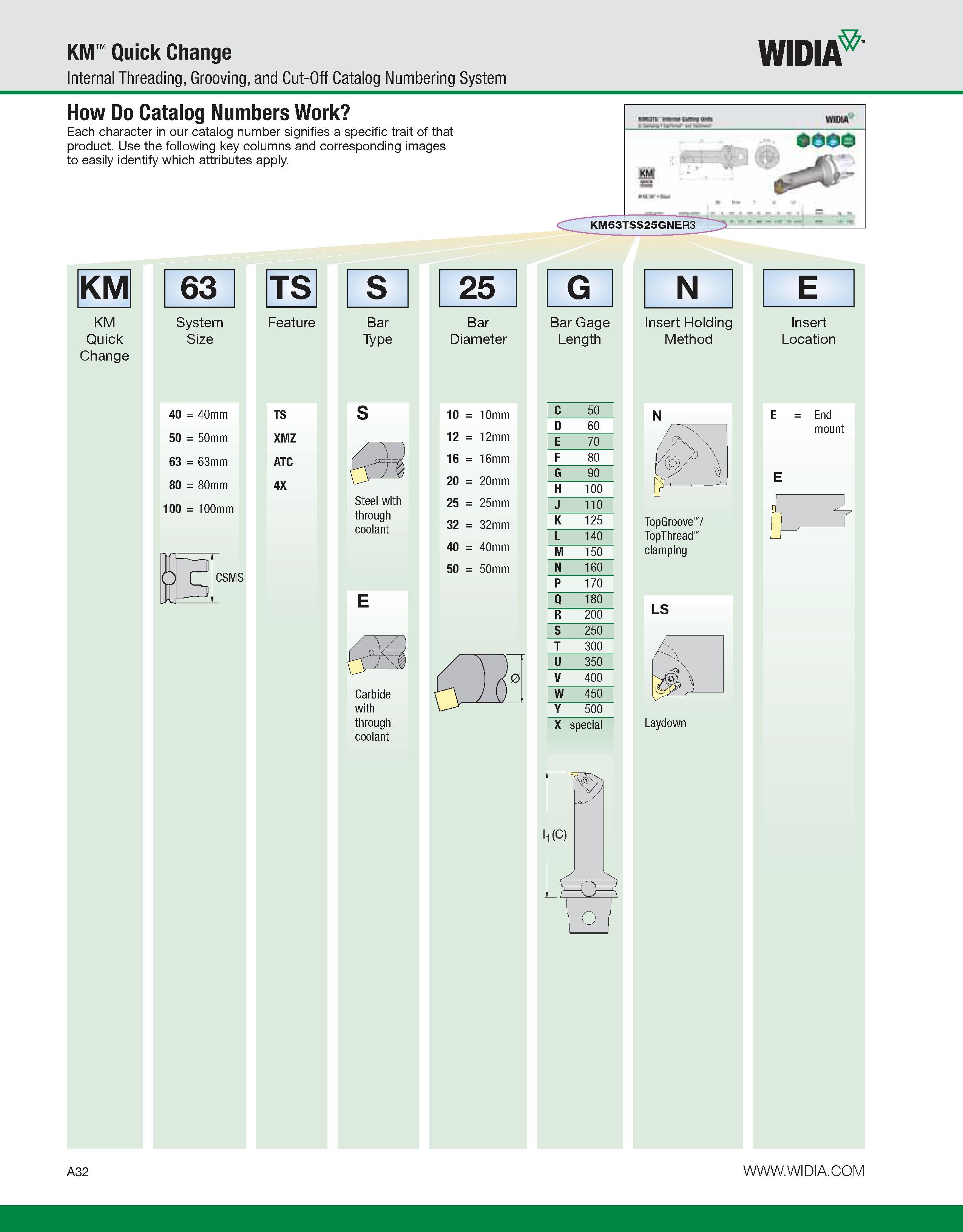

KM Quick Change Internal Threading, Grooving, and Cut-Off Catalog Numbering System WIDIA How Do Catalog Numbers Work Each character in our catalog number signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. Wll hHEHH IMDH wm Si HU a ".Vp KM63TSS25GNER3 KM 63 TS S KM Quick Change System Size Feature Bar Type 25 Bar Diameter G Bar Gage Length N Insert Holding Method E Insert Location 40 = 40mm 50 = 50mm 63 = 63mm 80 = 80mm 100 = 100mm CSMS TS XMZ ATC 4X S Steel with through coolant E Carbide with through coolant 10 = 10mm 12 = 12mm 16 = 16mm 20 = 20mm 25 = 25mm 32 = 32mm 40 = 40mm 50 = 50mm C 50 D 60 E 70 F 80 G 90 H 100 J 110 K 125 L 140 M 150 N 160 P 170 Q 180 R 200 S 250 T 300 U 350 V 400 W 450 Y 500 X special TopGroove / TopThread clamping LS End mount Laydown h(C) E N E A32
