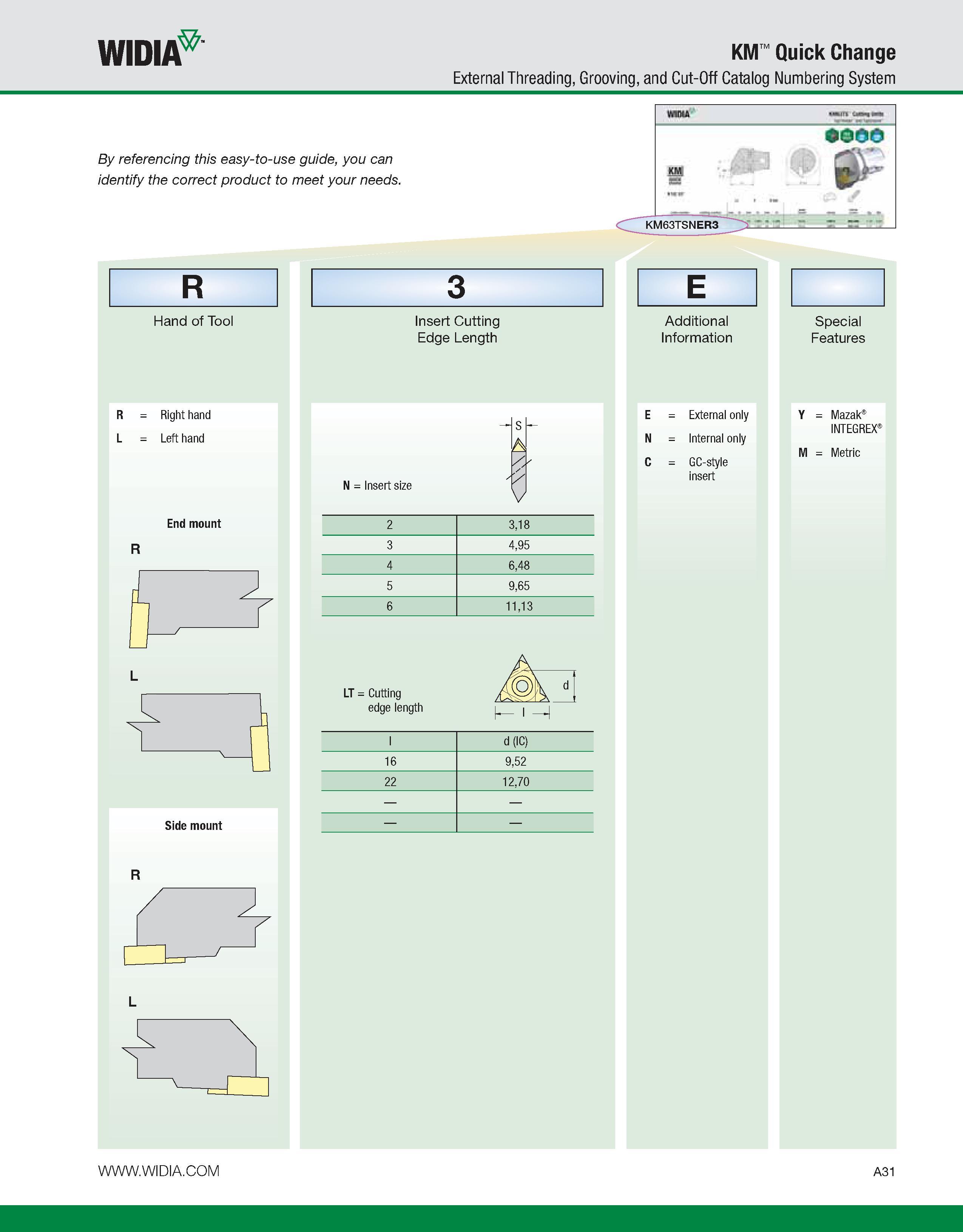

WIDIA KM Quick Change External Threading, Grooving, and Cut-Off Catalog Numbering System By referencing this easy-to-use guide, you can identify the correct product to meet your needs. fcWKl 'Wtl ; MM1 as W“ KM63TSNER3 R Hand of Tool R = Right hand L = Left hand End mount R Side mount L 3 Insert Cutting Edge Length , S . A / N = Insert size X V 2 3,18 3 4,95 4 6,48 5 9,65 6 11,13 LT = Cutting edge length A ilk7. k- I -A l d (IC) 16 9,52 22 12,70 E Additional Information E = External only N = Internal only C = GC-style insert Special Features Y = Mazak INTEGREX M = Metric A31
