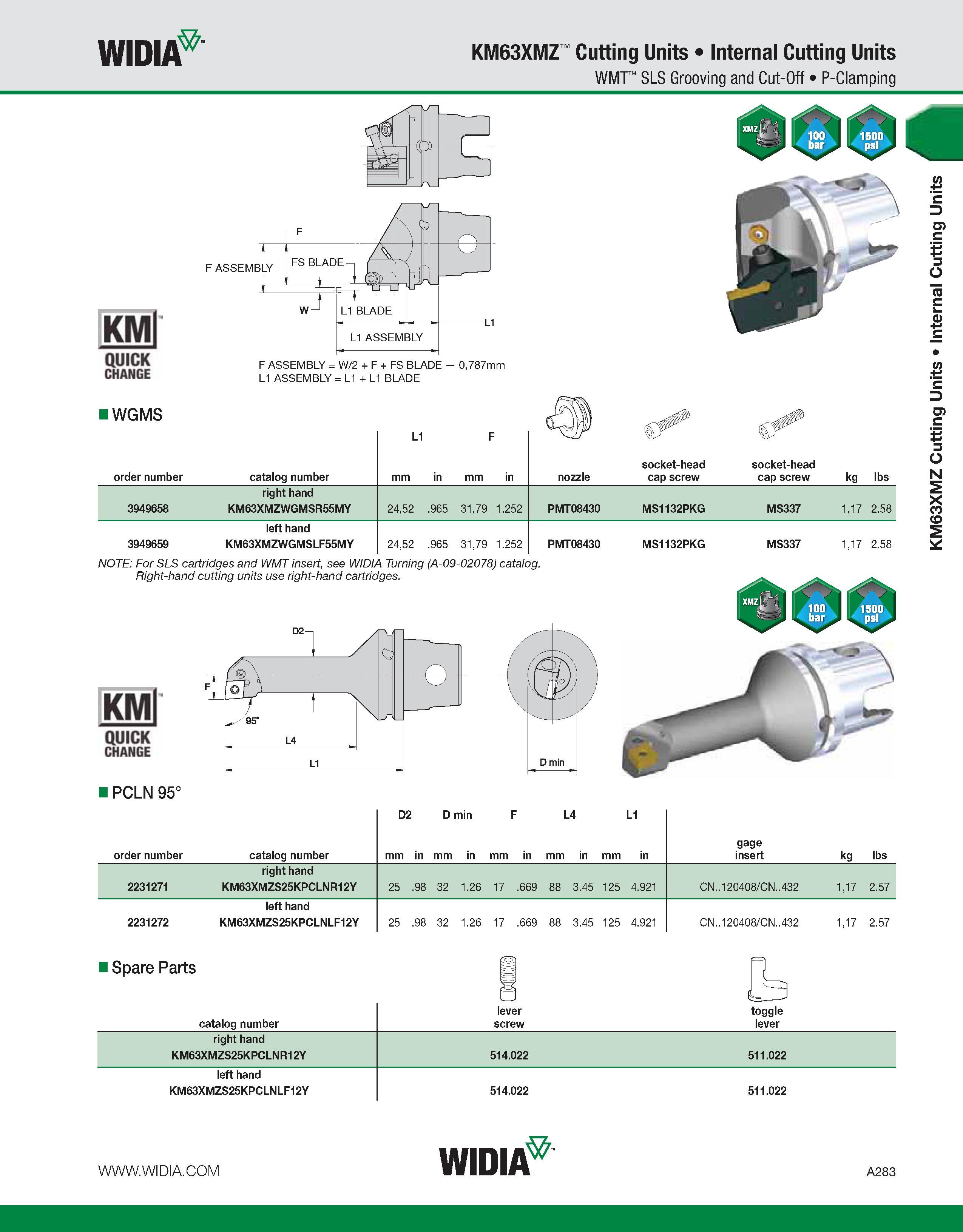

WIDIA KM63XMZ Cutting Units Internal Cutting Units WMT SLS Grooving and Cut-Off P-Clamping KMl QUICK CHANGE F ASSEMBLY = W/2 + F + FS BLADE - 0,787mm L1 ASSEMBLY = L1 + L1 BLADE IWGMS L1 F l%-r order number catalog number mm in mm in nozzle socket-head cap screw socket-head cap screw kg lbs right hand 3949658 KM63XMZWGMSR55MY 24,52 .965 31,79 1.252 PMT08430 MS1132PKG MS337 1,17 2.58 3949659 left hand KM63XMZWGMSLF55MY 24,52 .965 31,79 1.252 PMT08430 MS1132PKG MS337 1,17 2.58 NOTE: For SLS cartridges and WMT insert, see WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. KMl QUICK CHANGE PCLN 95° order number catalog number D2 D min F L4 L1 mm in mm in mm in mm in mm in gage insert kg lbs right hand 2231271 KM63XMZS25KPCLNR12Y 25 .98 32 1.26 17 .669 88 3.45 125 4.921 CN..120408/CN..432 1,17 2.57 left hand 2231272 KM63XMZS25KPCLNLF12Y Spare Parts catalog number 25 .98 32 1.26 17 .669 88 3.45 125 4.921 lever screw CN..120408/CN..432 1,17 2.57 Os toggle lever right hand KM63XMZS25KPCLNR12Y 514.022 511.022 left hand KM63XMZS25KPCLNLF12Y 514.022 511.022 WIDIA A83 KM63XMZ Cutting Units Internal Cutting Units
