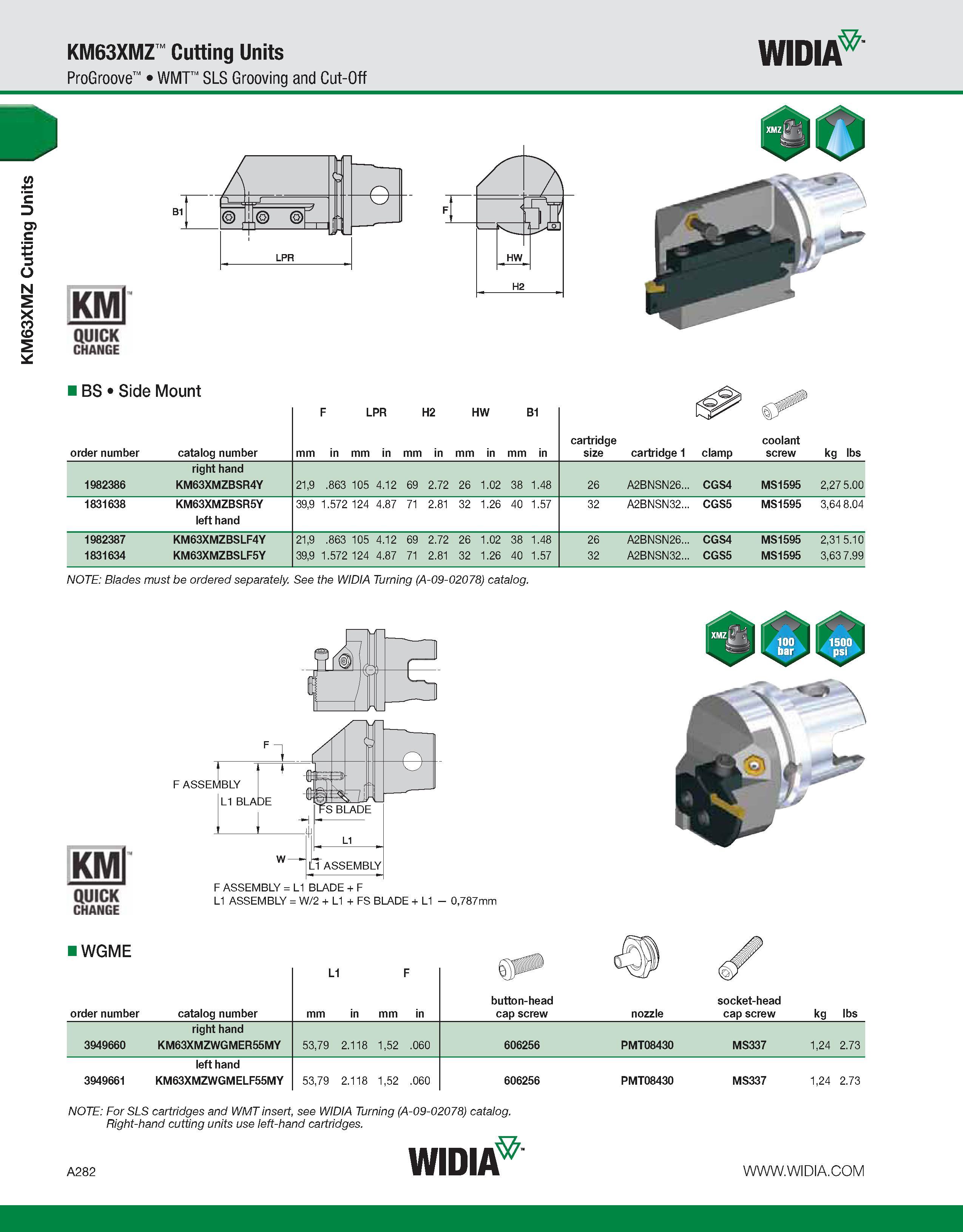

KM63XMZ Cutting Units KM63XMZ Cutting Units ProGroove WMT SLS Grooving and Cut-Off WIDIA KMl QUICK CHANGE HWt H2 IBS Side Mount F LPR H2 HW B1 order number catalog number mm in mm in mm in mm in mm in cartridge size cartridge 1 clamp coolant screw kg lbs 1982386 right hand KM63XMZBSR4Y 21,9 .863 105 4.12 69 2.72 26 1.02 38 1.48 26 A2BNSN26... CGS4 MS1595 2,27 5.00 1831638 KM63XMZBSR5Y left hand 39,9 1.572 124 4.87 71 2.81 32 1.26 40 1.57 32 A2BNSN32... CGS5 MS1595 3,64 8.04 1982387 KM63XMZBSLF4Y 21,9 .863 105 4.12 69 2.72 26 1.02 38 1.48 26 A2BNSN26... CGS4 MS1595 2,31 5.10 1831634 KM63XMZBSLF5Y 39,9 1.572 124 4.87 71 2.81 32 1.26 40 1.57 32 A2BNSN32... CGS5 MS1595 3,63 7.99 NOTE: Blades must be ordered separately. See the WIDIA Turning (A-09-02078) catalog. KMl QUICK CHANGE L1 ASSEMBLY = W/2 + L1 + FS BLADE + L1 - 0,787mm IWGME L1 F order number catalog number mm in mm in button-head cap screw nozzle socket-head cap screw kg lbs right hand 3949660 KM63XMZWGMER55MY 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,24 2.73 3949661 left hand KM63XMZWGMELF55MY 53,79 2.118 1,52 .060 606256 PMT08430 MS337 1,24 2.73 NOTE: For SLS cartridges and WMT insert, see WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. A282 WIDIA
