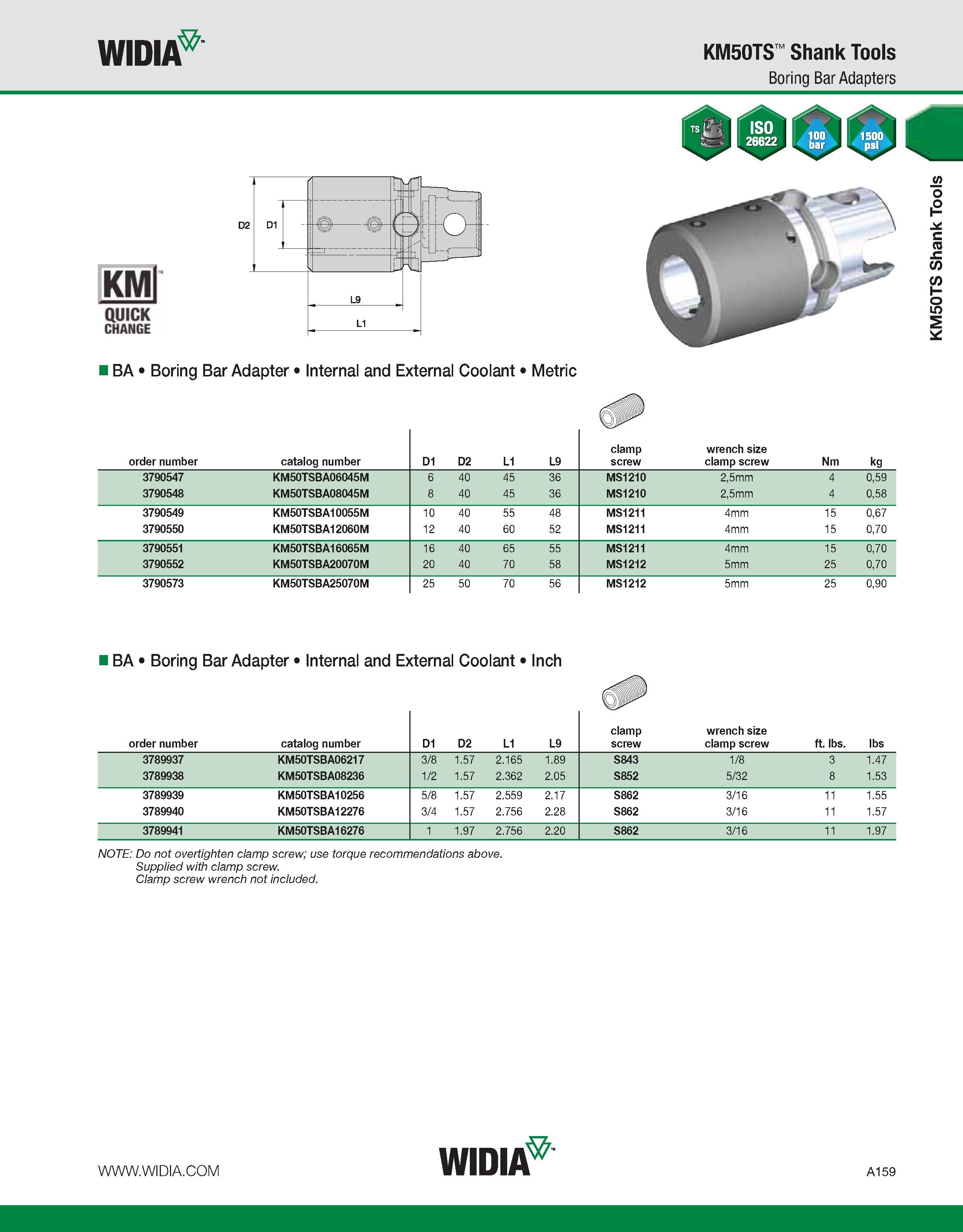

WIDIA KM50TS Shank Tools Boring Bar Adapters KMl QUICK CHANGE I BA Boring Bar Adapter Internal and External Coolant Metric order number catalog number D1 D2 L1 L9 clamp screw wrench size clamp screw Nm kg 3790547 KM50TSBA06045M 6 40 45 36 MS1210 2,5mm 4 0,59 3790548 KM50TSBA08045M 8 40 45 36 MS1210 2,5mm 4 0,58 3790549 KM50TSBA10055M 10 40 55 48 MS1211 4mm 15 0,67 3790550 KM50TSBA12060M 12 40 60 52 MS1211 4mm 15 0,70 3790551 KM50TSBA16065M 16 40 65 55 MS1211 4mm 15 0,70 3790552 KM50TSBA20070M 20 40 70 58 MS1212 5mm 25 0,70 3790573 KM50TSBA25070M 25 50 70 56 MS1212 5mm 25 0,90 i BA Boring Bar Adapter Internal and External Coolant Inch order number catalog number D1 D2 L1 L9 clamp screw wrench size clamp screw ft. lbs. lbs 3789937 KM50TSBA06217 3/8 1.57 2.165 1.89 S843 1/8 3 1.47 3789938 KM50TSBA08236 1/2 1.57 2.362 2.05 S852 5/32 8 1.53 3789939 KM50TSBA10256 5/8 1.57 2.559 2.17 S862 3/16 11 1.55 3789940 KM50TSBA12276 3/4 1.57 2.756 2.28 S862 3/16 11 1.57 3789941 KM50TSBA16276 1 1.97 2.756 2.20 S862 3/16 11 1.97 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. KM50TS Shank Tools
