166 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.A156

Каталог WIDIA 2011 Инструментальная оснастка Стр. A156 0166 ENG Lab2u

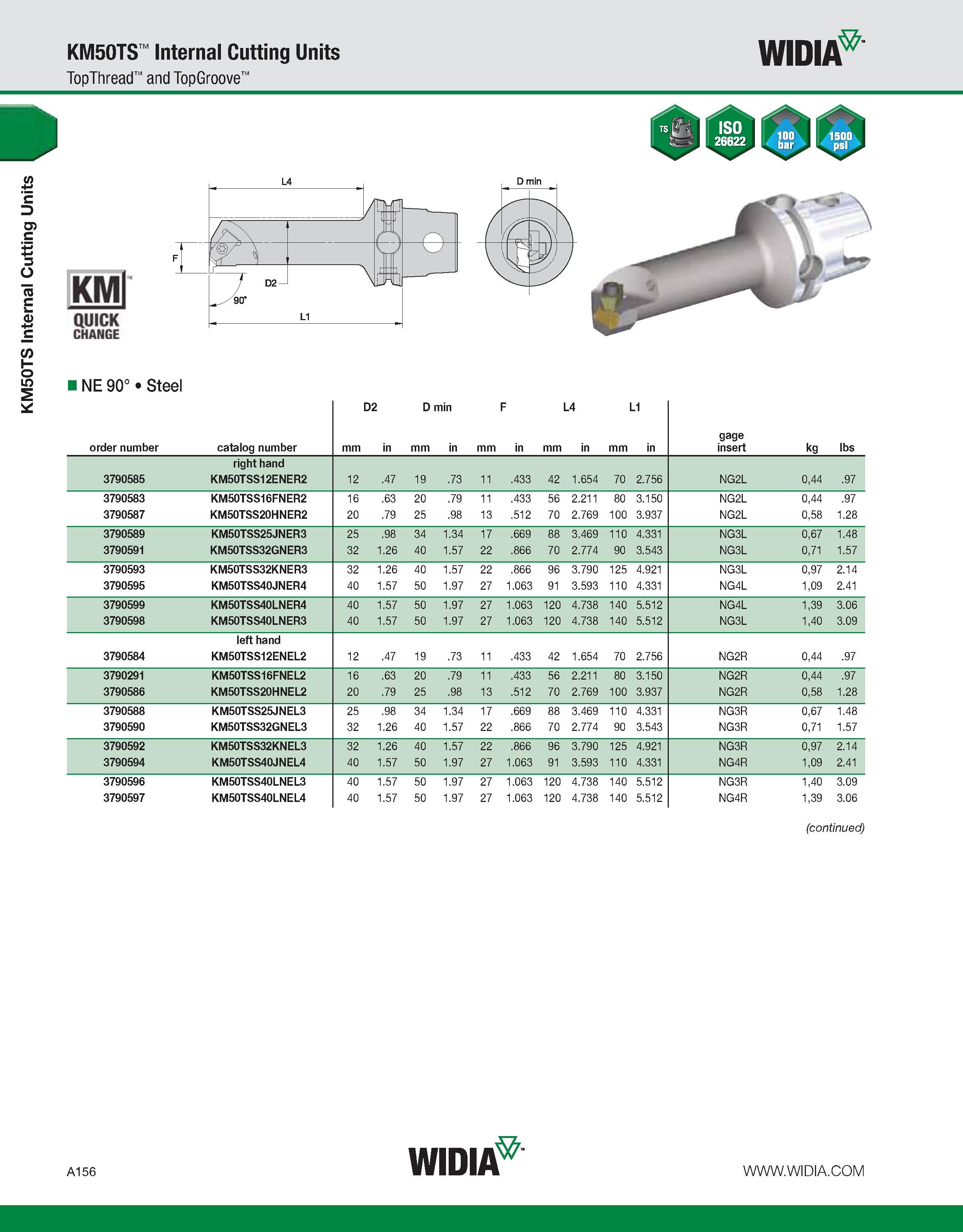

KM50TS Internal Cutting Units KM50TS Internal Cutting Units TopThread and TopGroove WIDIA KMl QUICK CHANGE NE 90° Steel order number catalog number mm D2 in D min mm in mm F in mm L4 in mm L1 in gage insert kg lbs right hand 3790585 KM50TSS12ENER2 12 .47 19 .73 11 .433 42 1.654 70 2.756 NG2L 0,44 .97 3790583 KM50TSS16FNER2 16 .63 20 .79 11 .433 56 2.211 80 3.150 NG2L 0,44 .97 3790587 KM50TSS20HNER2 20 .79 25 .98 13 .512 70 2.769 100 3.937 NG2L 0,58 1.28 3790589 KM50TSS25JNER3 25 .98 34 1.34 17 .669 88 3.469 110 4.331 NG3L 0,67 1.48 3790591 KM50TSS32GNER3 32 1.26 40 1.57 22 .866 70 2.774 90 3.543 NG3L 0,71 1.57 3790593 KM50TSS32KNER3 32 1.26 40 1.57 22 .866 96 3.790 125 4.921 NG3L 0,97 2.14 3790595 KM50TSS40JNER4 40 1.57 50 1.97 27 1.063 91 3.593 110 4.331 NG4L 1,09 2.41 3790599 KM50TSS40LNER4 40 1.57 50 1.97 27 1.063 120 4.738 140 5.512 NG4L 1,39 3.06 3790598 KM50TSS40LNER3 40 1.57 50 1.97 27 1.063 120 4.738 140 5.512 NG3L 1,40 3.09 left hand 3790584 KM50TSS12ENEL2 12 .47 19 .73 11 .433 42 1.654 70 2.756 NG2R 0,44 .97 3790291 KM50TSS16FNEL2 16 .63 20 .79 11 .433 56 2.211 80 3.150 NG2R 0,44 .97 3790586 KM50TSS20HNEL2 20 .79 25 .98 13 .512 70 2.769 100 3.937 NG2R 0,58 1.28 3790588 KM50TSS25JNEL3 25 .98 34 1.34 17 .669 88 3.469 110 4.331 NG3R 0,67 1.48 3790590 KM50TSS32GNEL3 32 1.26 40 1.57 22 .866 70 2.774 90 3.543 NG3R 0,71 1.57 3790592 KM50TSS32KNEL3 32 1.26 40 1.57 22 .866 96 3.790 125 4.921 NG3R 0,97 2.14 3790594 KM50TSS40JNEL4 40 1.57 50 1.97 27 1.063 91 3.593 110 4.331 NG4R 1,09 2.41 3790596 KM50TSS40LNEL3 40 1.57 50 1.97 27 1.063 120 4.738 140 5.512 NG3R 1,40 3.09 3790597 KM50TSS40LNEL4 40 1.57 50 1.97 27 1.063 120 4.738 140 5.512 NG4R 1,39 3.06 (continued) A156 WIDIA
