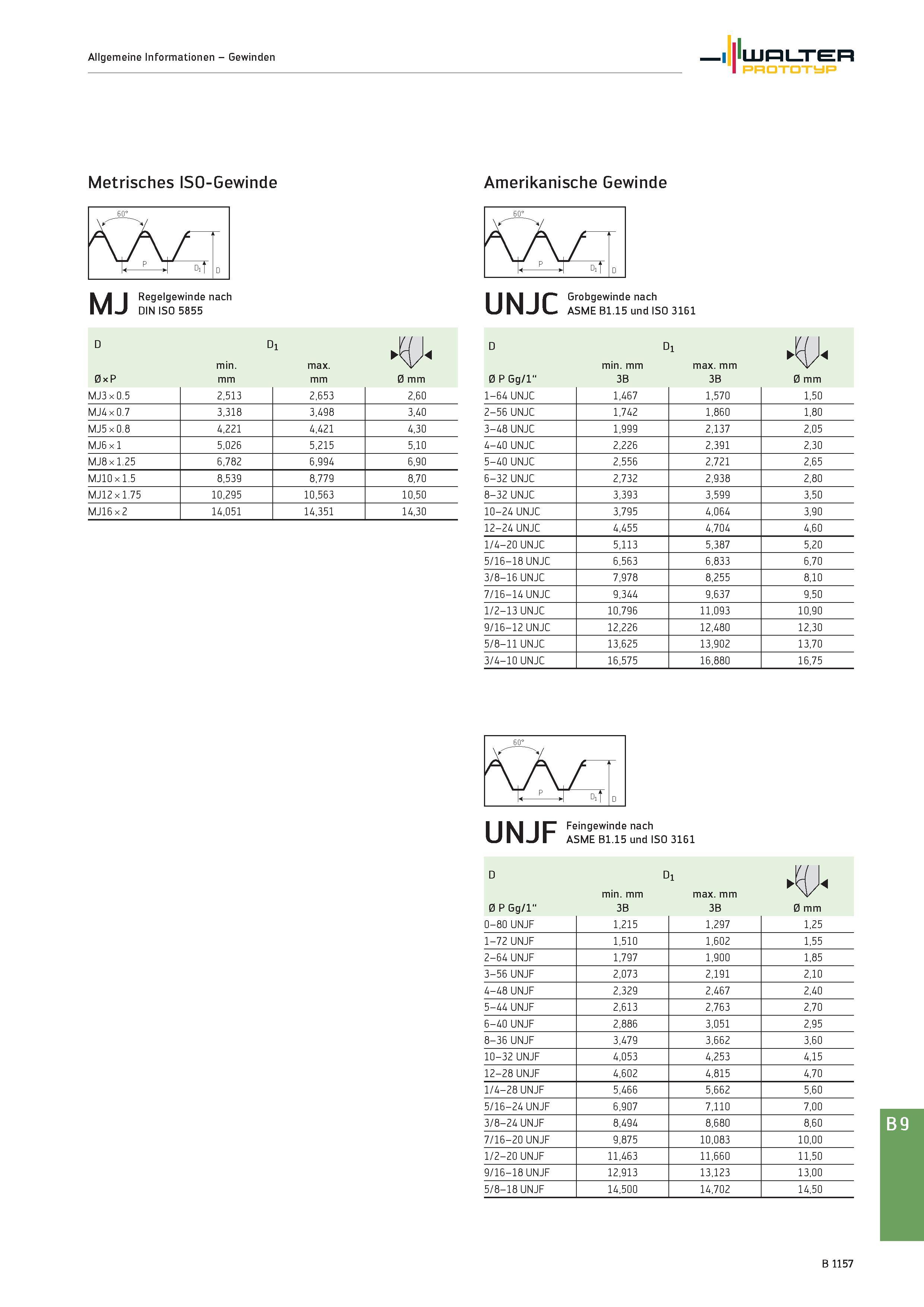

Allgemeine Informationen - Gewinden Walter Prototyp Metrisches ISO-Gewinde Amerikanische Gewinde MJ Regelgewinde nach DIN ISO 5855 UNJC Grobgewinde nach ASME B1.15 und ISO 3161 D D 1 D D 1 0 X P min. mm max. mm 0 mm 0 P Gg/1" min. mm 3B max. mm 3B 0 mm MJ3 x 0.5 2,513 2,653 2,60 1-64 UNJC 1,467 1,570 1,50 MJ4 x 0.7 3,318 3,498 3,40 2-56 UNJC 1,742 1,860 1,80 MJ5 x 0.8 4,221 4,421 4,30 3-48 UNJC 1,999 2,137 2,05 MJ6 x 1 5,026 5,215 5,10 4-40 UNJC 2,226 2,391 2,30 MJ8 x 1.25 6,782 6,994 6,90 5-40 UNJC 2,556 2,721 2,65 MJ10 x 1.5 8,539 8,779 8,70 6-32 UNJC 2,732 2,938 2,80 MJ12 x 1.75 10,295 10,563 10,50 8-32 UNJC 3,393 3,599 3,50 MJ16x2 14,051 14,351 14,30 10-24 UNJC 3,795 4,064 3,90 12-24 UNJC 4,455 4,704 4,60 1/4-20 UNJC 5,113 5,387 5,20 5/16-18 UNJC 6,563 6,833 6,70 3/8-16 UNJC 7,978 8,255 8,10 7/16-14 UNJC 9,344 9,637 9,50 1/2-13 UNJC 10,796 11,093 10,90 9/16-12 UNJC 12,226 12,480 12,30 5/8-11 UNJC 13,625 13,902 13,70 3/4-10 UNJC 16,575 16,880 16,75 Kl I C Feingewinde nach UNJF ASME B1.15 und ISO 3161 D D 1 0 mm 0 P Gg/1" min. mm 3B max. mm 3B 0-80 UNJF 1,215 1,297 1,25 1-72 UNJF 1,510 1,602 1,55 2-64 UNJF 1,797 1,900 1,85 3-56 UNJF 2,073 2,191 2,10 4-48 UNJF 2,329 2,467 2,40 5-44 UNJF 2,613 2,763 2,70 6-40 UNJF 2,886 3,051 2,95 8-36 UNJF 3,479 3,662 3,60 10-32 UNJF 4,053 4,253 4,15 12-28 UNJF 4,602 4,815 4,70 1/4-28 UNJF 5,466 5,662 5,60 5/16-24 UNJF 6,907 7,110 7,00 3/8-24 UNJF 8,494 8,680 8,60 7/16-20 UNJF 9,875 10,083 10,00 1/2-20 UNJF 11,463 11,660 11,50 9/16-18 UNJF 12,913 13,123 13,00 5/8-18 UNJF 14,500 14,702 14,50 B 1157
