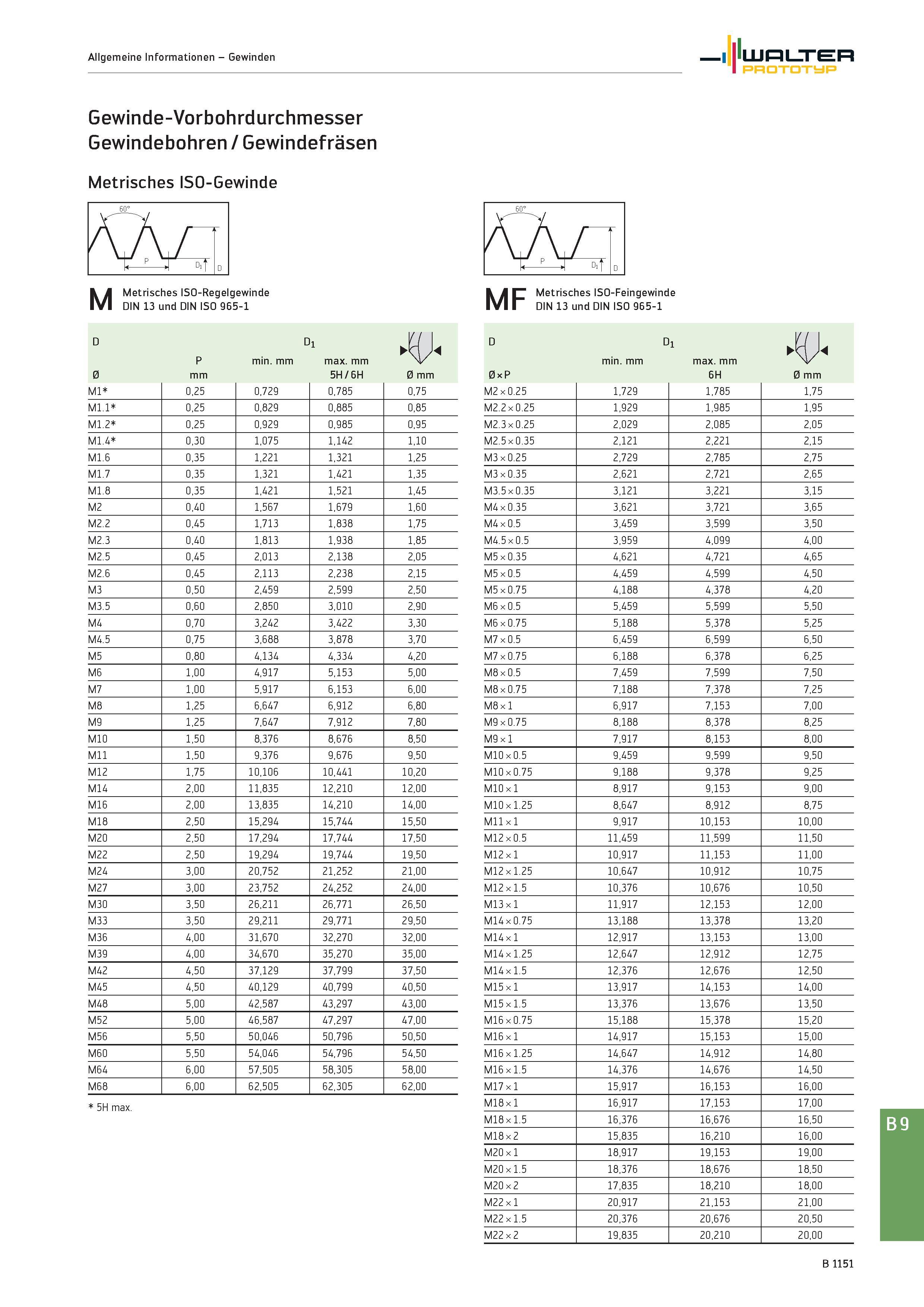

Allgemeine Informationen - Gewinden Walter Prototyp Gewinde-Vorbohrdurchmesser Gewindebohren / Gewindefräsen Metrisches ISO-Gewinde M Metrisches ISO-Regelgewinde DIN 13 und DIN ISO 965-1 MF Metrisches ISO-Feingewinde DIN 13 und DIN ISO 965-1 D D 1 D D 1 0 P mm min. mm max. mm 5H / 6H 0 mm 0 x P min. mm max. mm 6H 0 mm M1 0,25 0,729 0,785 0,75 M2 x 0.25 1,729 1,785 1,75 M1.1 0,25 0,829 0,885 0,85 M2.2 x 0.25 1,929 1,985 1,95 M1.2 0,25 0,929 0,985 0,95 M2.3 x 0.25 2,029 2,085 2,05 M1.4 0,30 1,075 1,142 1,10 M2.5 x 0.35 2,121 2,221 2,15 M1.6 0,35 1,221 1,321 1,25 M3 x 0.25 2,729 2,785 2,75 M1.7 0,35 1,321 1,421 1,35 M3 x 0.35 2,621 2,721 2,65 M1.8 0,35 1,421 1,521 1,45 M3.5 x 0.35 3,121 3,221 3,15 M2 0,40 1,567 1,679 1,60 M4 x 0.35 3,621 3,721 3,65 M2.2 0,45 1,713 1,838 1,75 M4 x 0.5 3,459 3,599 3,50 M2.3 0,40 1,813 1,938 1,85 M4.5 x 0.5 3,959 4,099 4,00 M2.5 0,45 2,013 2,138 2,05 M5 x 0.35 4,621 4,721 4,65 M2.6 0,45 2,113 2,238 2,15 M5 x 0.5 4,459 4,599 4,50 M3 0,50 2,459 2,599 2,50 M5 x 0.75 4,188 4,378 4,20 M3.5 0,60 2,850 3,010 2,90 M6 x 0.5 5,459 5,599 5,50 M4 0,70 3,242 3,422 3,30 M6 x 0.75 5,188 5,378 5,25 M4.5 0,75 3,688 3,878 3,70 M7 x 0.5 6,459 6,599 6,50 M5 0,80 4,134 4,334 4,20 M7 x 0.75 6,188 6,378 6,25 M6 1,00 4,917 5,153 5,00 M8 x 0.5 7,459 7,599 7,50 M7 1,00 5,917 6,153 6,00 M8 x 0.75 7,188 7,378 7,25 M8 1,25 6,647 6,912 6,80 M8 x 1 6,917 7,153 7,00 M9 1,25 7,647 7,912 7,80 M9 x 0.75 8,188 8,378 8,25 M10 1,50 8,376 8,676 8,50 M9 x 1 7,917 8,153 8,00 M11 1,50 9,376 9,676 9,50 M10 x 0.5 9,459 9,599 9,50 M12 1,75 10,106 10,441 10,20 M10 x 0.75 9,188 9,378 9,25 M14 2,00 11,835 12,210 12,00 M10 x 1 8,917 9,153 9,00 M16 2,00 13,835 14,210 14,00 M10 x 1.25 8,647 8,912 8,75 M18 2,50 15,294 15,744 15,50 M11 x 1 9,917 10,153 10,00 M20 2,50 17,294 17,744 17,50 M12 x 0.5 11,459 11,599 11,50 M22 2,50 19,294 19,744 19,50 M12 x 1 10,917 11,153 11,00 M24 3,00 20,752 21,252 21,00 M12 x 1.25 10,647 10,912 10,75 M27 3,00 23,752 24,252 24,00 M12 x 1.5 10,376 10,676 10,50 M30 3,50 26,211 26,771 26,50 M13 x 1 11,917 12,153 12,00 M33 3,50 29,211 29,771 29,50 M14 x 0.75 13,188 13,378 13,20 M36 4,00 31,670 32,270 32,00 M14 x 1 12,917 13,153 13,00 M39 4,00 34,670 35,270 35,00 M14 x 1.25 12,647 12,912 12,75 M42 4,50 37,129 37,799 37,50 M14 x 1.5 12,376 12,676 12,50 M45 4,50 40,129 40,799 40,50 M15 x 1 13,917 14,153 14,00 M48 5,00 42,587 43,297 43,00 M15 x 1.5 13,376 13,676 13,50 M52 5,00 46,587 47,297 47,00 M16 x 0.75 15,188 15,378 15,20 M56 5,50 50,046 50,796 50,50 M16 x 1 14,917 15,153 15,00 M60 5,50 54,046 54,796 54,50 M16 x 1.25 14,647 14,912 14,80 M64 6,00 57,505 58,305 58,00 M16 x 1.5 14,376 14,676 14,50 M68 6,00 62,505 62,305 62,00 M17 x 1 15,917 16,153 16,00 5H max. M18 x 1 16,917 17,153 17,00 M18 x 1.5 16,376 16,676 16,50 M18 x 2 15,835 16,210 16,00 M20 x 1 18,917 19,153 19,00 M20 x 1.5 18,376 18,676 18,50 M20 x 2 17,835 18,210 18,00 M22 x 1 20,917 21,153 21,00 M22 x 1.5 20,376 20,676 20,50 M22 x 2 19,835 20,210 20,00 B 1151
