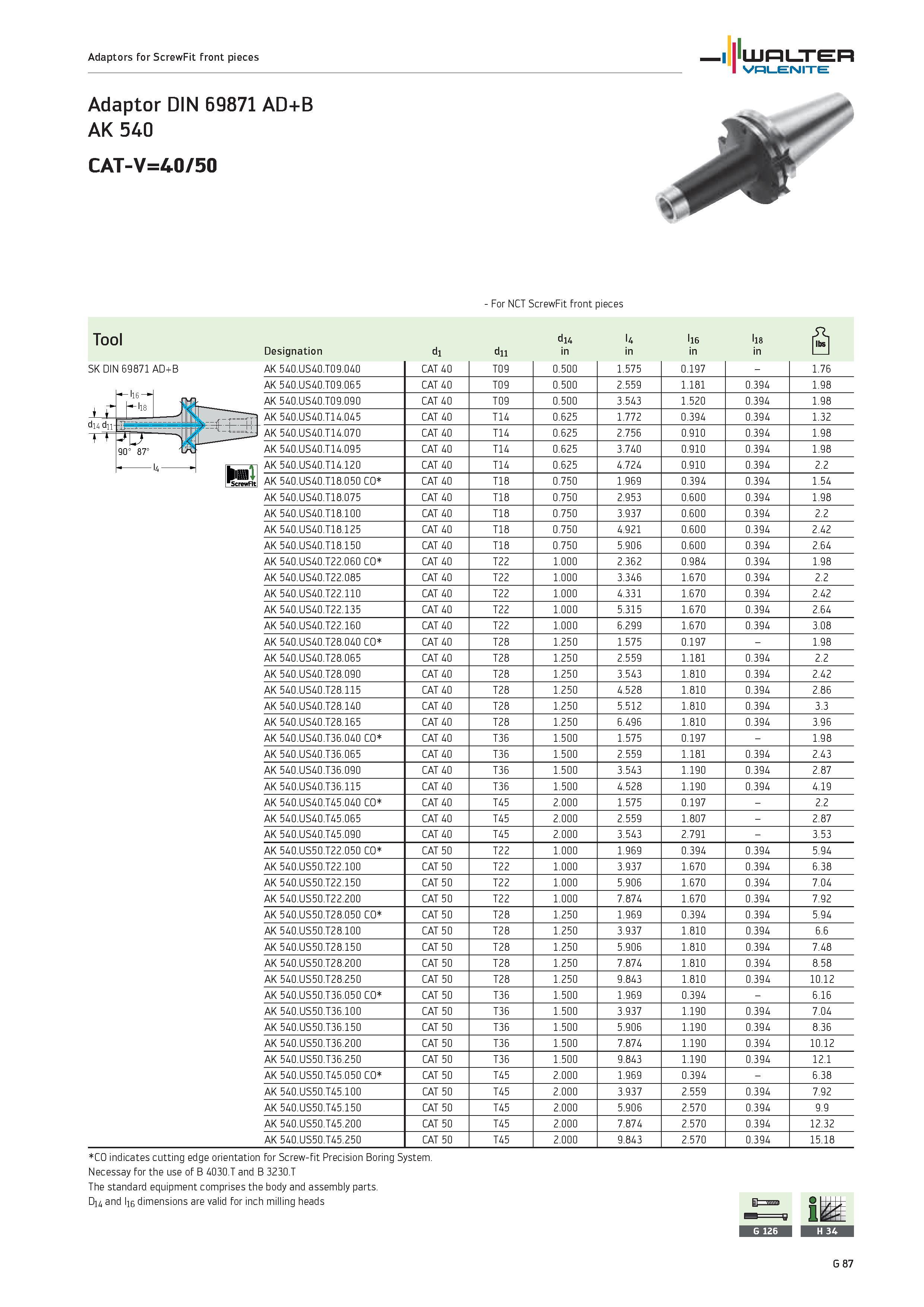

Adaptors for ScrewFit front pieces WALTER Valenite Adaptor DIN 6987i AD+B AK 540 CAT-V=40/50 For NCT ScrewFit front pieces Tool SK DIN 69871 AD+B -li8 di4 dii t t 90° 87° 4 di4 l4 li6 li8 ft Designation di dii in AK 540.US40.T09.040 CAT 40 T09 0.500 1.575 0.197 1.76 AK 540.US40.T09.065 CAT 40 T09 0.500 2.559 1.181 0.394 1.98 AK 540.US40.T09.090 CAT 40 T09 0.500 3.543 1.520 0.394 1.98 AK 540.US40.T14.045 CAT 40 T14 0.625 1.772 0.394 0.394 1.32 AK 540.US40.T14.070 CAT 40 T14 0.625 2.756 0.910 0.394 1.98 AK 540.US40.T14.095 CAT 40 T14 0.625 3.740 0.910 0.394 1.98 AK 540.US40.T14.120 CAT 40 T14 0.625 4.724 0.910 0.394 2.2 AK 540.US40.T18.050 CAT 40 T18 0.750 1.969 0.394 0.394 1.54 AK 540.US40.T18.075 CAT 40 T18 0.750 2.953 0.600 0.394 1.98 AK 540.US40.T18.100 CAT 40 T18 0.750 3.937 0.600 0.394 2.2 AK 540.US40.T18.125 CAT 40 T18 0.750 4.921 0.600 0.394 2.42 AK 540.US40.T18.150 CAT 40 T18 0.750 5.906 0.600 0.394 2.64 AK 540.US40.T22.060 CAT 40 T22 1.000 2.362 0.984 0.394 1.98 AK 540.US40.T22.085 CAT 40 T22 1.000 3.346 1.670 0.394 2.2 AK 540.US40.T22.110 CAT 40 T22 1.000 4.331 1.670 0.394 2.42 AK 540.US40.T22.135 CAT 40 T22 1.000 5.315 1.670 0.394 2.64 AK 540.US40.T22.160 CAT 40 T22 1.000 6.299 1.670 0.394 3.08 AK 540.US40.T28.040 CAT 40 T28 1.250 1.575 0.197 1.98 AK 540.US40.T28.065 CAT 40 T28 1.250 2.559 1.181 0.394 2.2 AK 540.US40.T28.090 CAT 40 T28 1.250 3.543 1.810 0.394 2.42 AK 540.US40.T28.115 CAT 40 T28 1.250 4.528 1.810 0.394 2.86 AK 540.US40.T28.140 CAT 40 T28 1.250 5.512 1.810 0.394 3.3 AK 540.US40.T28.165 CAT 40 T28 1.250 6.496 1.810 0.394 3.96 AK 540.US40.T36.040 CAT 40 T36 1.500 1.575 0.197 1.98 AK 540.US40.T36.065 CAT 40 T36 1.500 2.559 1.181 0.394 2.43 AK 540.US40.T36.090 CAT 40 T36 1.500 3.543 1.190 0.394 2.87 AK 540.US40.T36.115 CAT 40 T36 1.500 4.528 1.190 0.394 4.19 AK 540.US40.T45.040 CAT 40 T45 2.000 1.575 0.197 2.2 AK 540.US40.T45.065 CAT 40 T45 2.000 2.559 1.807 2.87 AK 540.US40.T45.090 CAT 40 T45 2.000 3.543 2.791 3.53 AK 540.US50.T22.050 CAT 50 T22 1.000 1.969 0.394 0.394 5.94 AK 540.US50.T22.100 CAT 50 T22 1.000 3.937 1.670 0.394 6.38 AK 540.US50.T22.150 CAT 50 T22 1.000 5.906 1.670 0.394 7.04 AK 540.US50.T22.200 CAT 50 T22 1.000 7.874 1.670 0.394 7.92 AK 540.US50.T28.050 CAT 50 T28 1.250 1.969 0.394 0.394 5.94 AK 540.US50.T28.100 CAT 50 T28 1.250 3.937 1.810 0.394 6.6 AK 540.US50.T28.150 CAT 50 T28 1.250 5.906 1.810 0.394 7.48 AK 540.US50.T28.200 CAT 50 T28 1.250 7.874 1.810 0.394 8.58 AK 540.US50.T28.250 CAT 50 T28 1.250 9.843 1.810 0.394 10.12 AK 540.US50.T36.050 CAT 50 T36 1.500 1.969 0.394 6.16 AK 540.US50.T36.100 CAT 50 T36 1.500 3.937 1.190 0.394 7.04 AK 540.US50.T36.150 CAT 50 T36 1.500 5.906 1.190 0.394 8.36 AK 540.US50.T36.200 CAT 50 T36 1.500 7.874 1.190 0.394 10.12 AK 540.US50.T36.250 CAT 50 T36 1.500 9.843 1.190 0.394 12.1 AK 540.US50.T45.050 CAT 50 T45 2.000 1.969 0.394 6.38 AK 540.US50.T45.100 CAT 50 T45 2.000 3.937 2.559 0.394 7.92 AK 540.US50.T45.150 CAT 50 T45 2.000 5.906 2.570 0.394 9.9 AK 540.US50.T45.200 CAT 50 T45 2.000 7.874 2.570 0.394 12.32 AK 540.US50.T45.250 CAT 50 T45 2.000 9.843 2.570 0.394 15.18 indicates cutting edge orientation for Screw-fit Precision Boring System. Necessay for the use of B 4030.T and B 3230.T The standard equipment comprises the body and assembly parts. Di4 and li6 dimensions are valid for inch milling heads G 87
