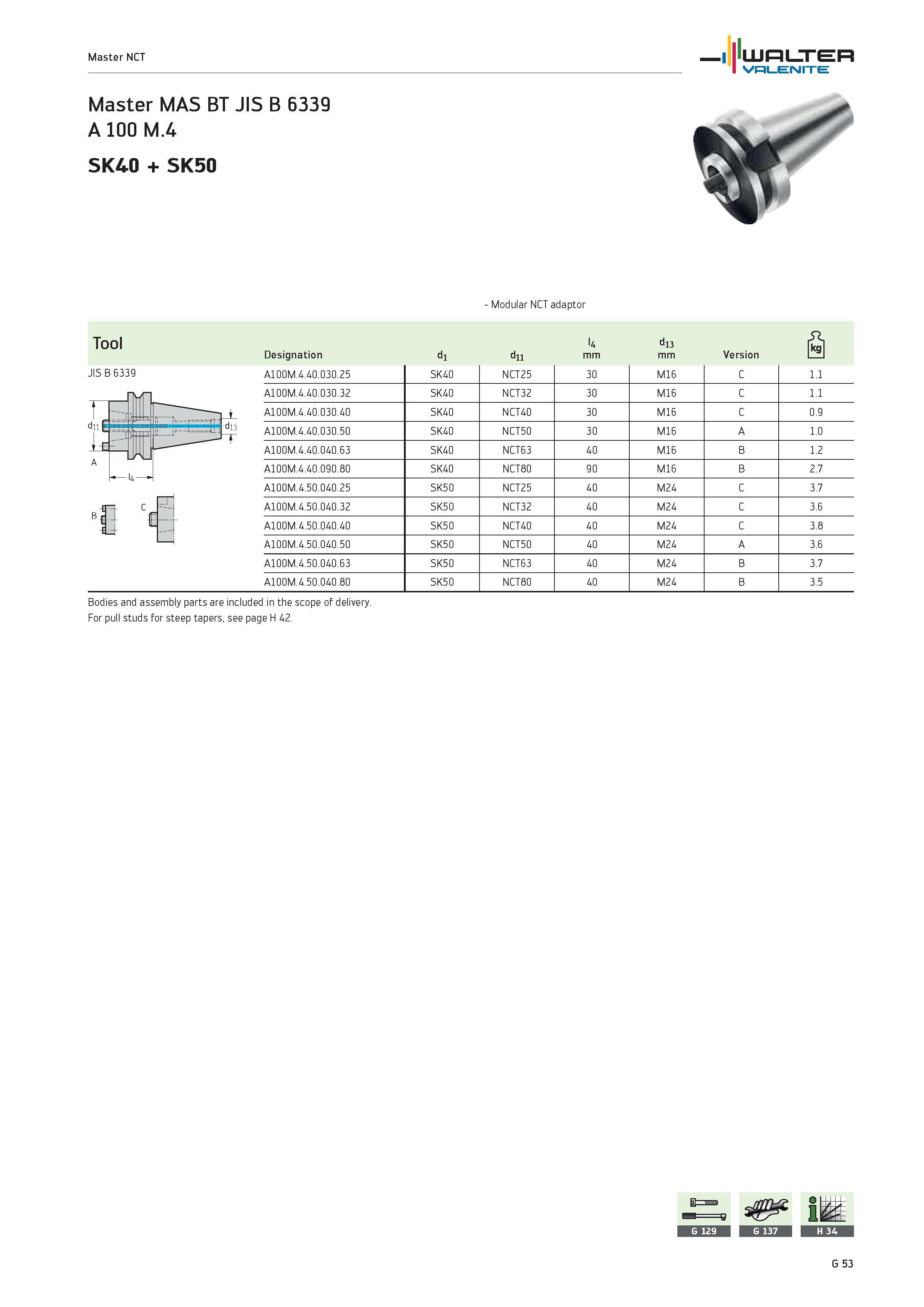

WALTER Valenite Master NCT Master MAS BT JIS B 6339 A 100 M.4 SK40 + SK50 Modular NCT adaptor Tool JIS B 6339 Designation d1 d11 l4 mm d13 mm Version S A100M.4.40.030.25 SK40 NCT25 30 M16 C 1.1 A100M.4.40.030.32 SK40 NCT32 30 M16 C 1.1 A100M.4.40.030.40 SK40 NCT40 30 M16 C 0.9 A100M.4.40.030.50 SK40 NCT50 30 M16 A 1.0 A100M.4.40.040.63 SK40 NCT63 40 M16 B 1.2 A100M.4.40.090.80 SK40 NCT80 90 M16 B 2.7 A100M.4.50.040.25 SK50 NCT25 40 M24 C 3.7 A100M.4.50.040.32 SK50 NCT32 40 M24 C 3.6 A100M.4.50.040.40 SK50 NCT40 40 M24 C 3.8 A100M.4.50.040.50 SK50 NCT50 40 M24 A 3.6 A100M.4.50.040.63 SK50 NCT63 40 M24 B 3.7 A100M.4.50.040.80 SK50 NCT80 40 M24 B 3.5 Bodies and assembly parts are included in the scope of delivery. For pull studs for steep tapers, see page H 42.
