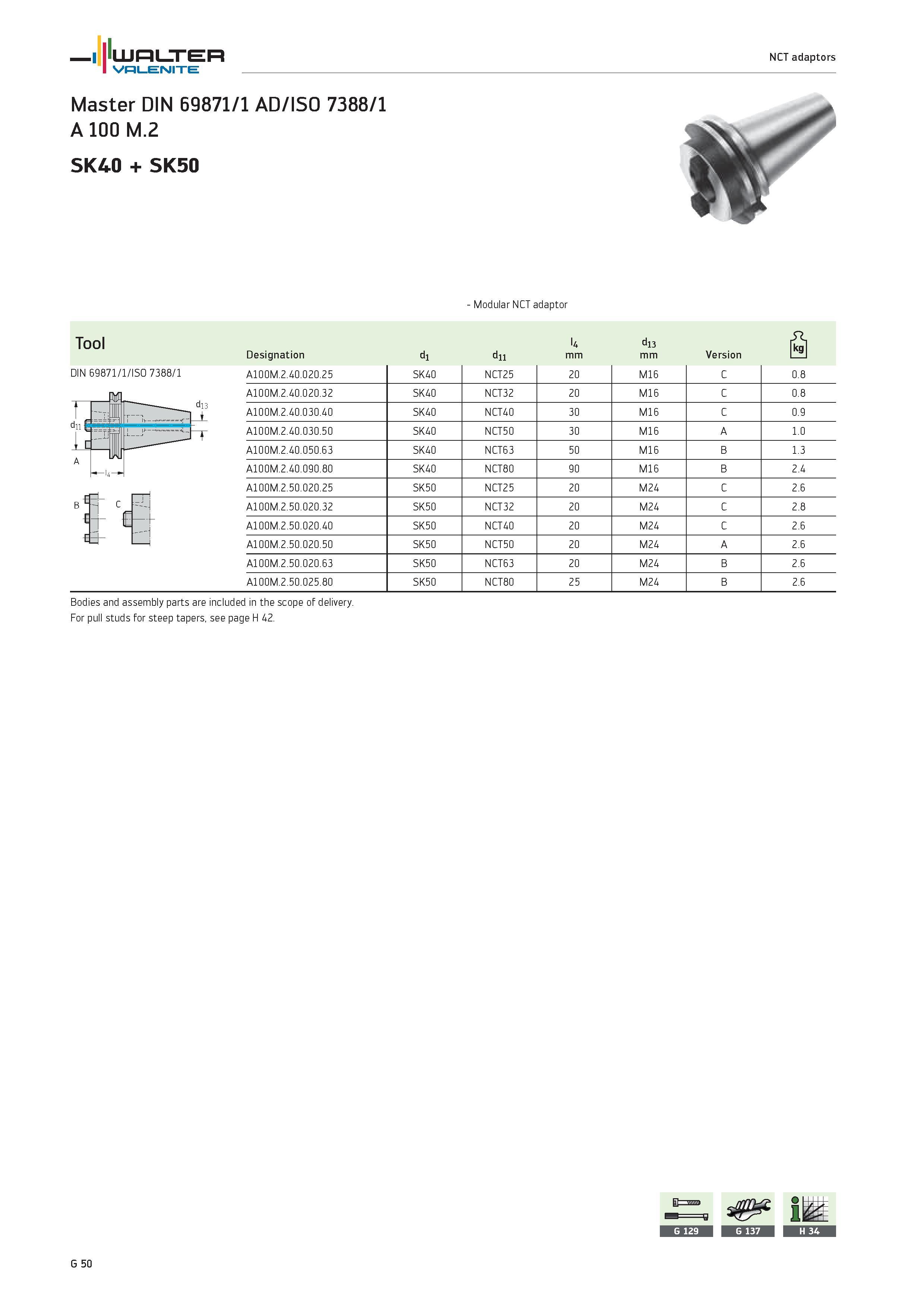

WALTER Valenite NCT adaptors Master DIN 69871/1 AD/ISO 7388/1 A 100 M.2 SK40 + SK50 Modular NCT adaptor Tool DIN 69871/1/ISO 7388/1 Designation d1 d11 l4 mm d13 mm Version S A100M.2.40.020.25 SK40 NCT25 20 M16 C 0.8 A100M.2.40.020.32 SK40 NCT32 20 M16 C 0.8 A100M.2.40.030.40 SK40 NCT40 30 M16 C 0.9 A100M.2.40.030.50 SK40 NCT50 30 M16 A 1.0 A100M.2.40.050.63 SK40 NCT63 50 M16 B 1.3 A100M.2.40.090.80 SK40 NCT80 90 M16 B 2.4 A100M.2.50.020.25 SK50 NCT25 20 M24 C 2.6 A100M.2.50.020.32 SK50 NCT32 20 M24 C 2.8 A100M.2.50.020.40 SK50 NCT40 20 M24 C 2.6 A100M.2.50.020.50 SK50 NCT50 20 M24 A 2.6 A100M.2.50.020.63 SK50 NCT63 20 M24 B 2.6 A100M.2.50.025.80 SK50 NCT80 25 M24 B 2.6 Bodies and assembly parts are included in the scope of delivery. For pull studs for steep tapers, see page H 42. G 50
