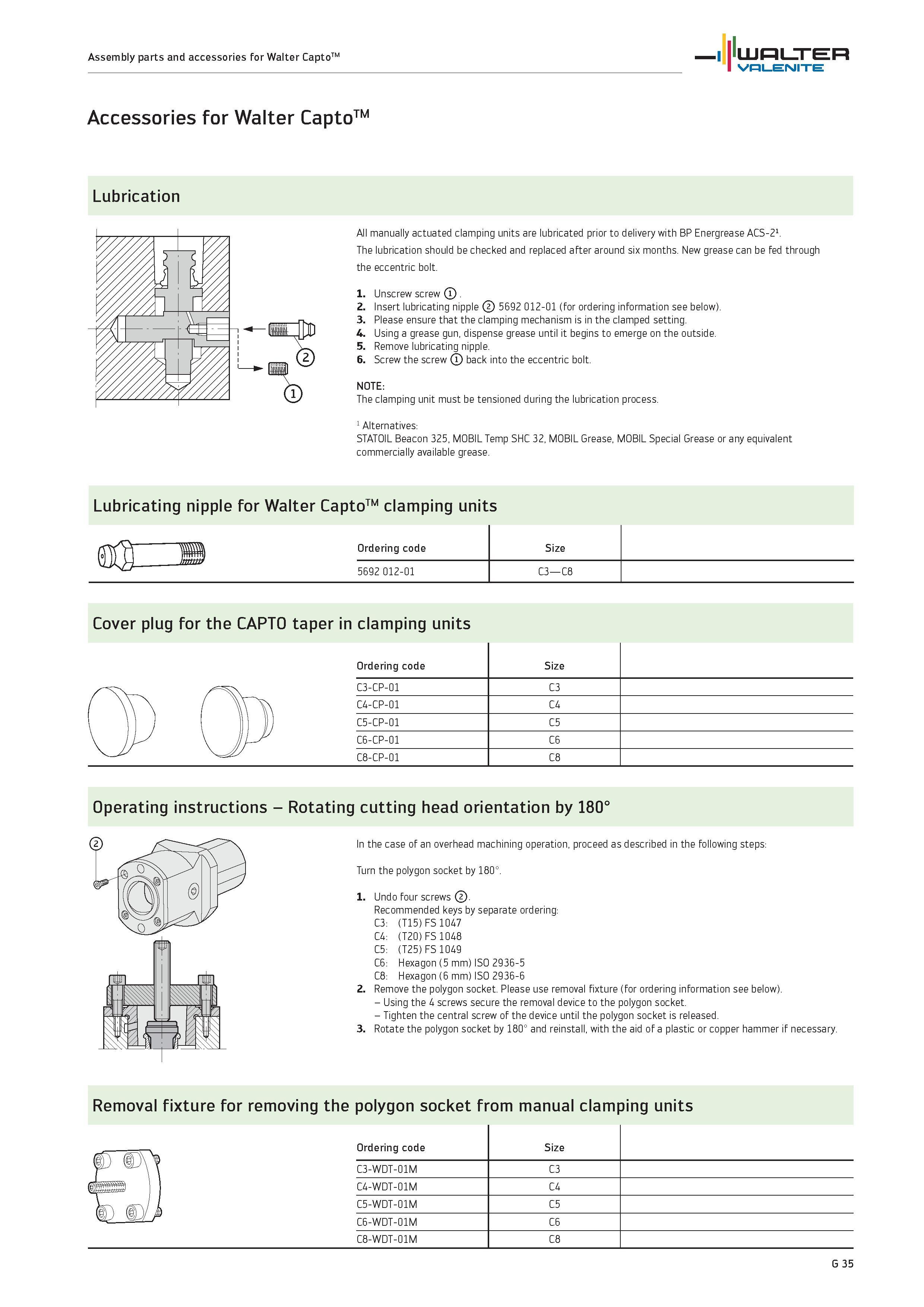

Assembly parts and accessories for Walter CaptoTM WALTER Valenite Accessories for Walter CaptoTM Lubrication 1 ill % All manually actuated clamping units are lubricated prior to delivery with BP Energrease ACS-21. The lubrication should be checked and replaced after around six months. New grease can be fed through the eccentric bolt. 1. Unscrew screw 2. Insert lubricating nipple 5692 012-01 (for ordering information see below). 3. Please ensure that the clamping mechanism is in the clamped setting. 4. Using a grease gun, dispense grease until it begins to emerge on the outside. 5. Remove lubricating nipple. 6. Screw the screw back into the eccentric bolt. NOTE The clamping unit must be tensioned during the lubrication process. 1 Alternatives STATOIL Beacon 325, MOBIL Temp SHC 32, MOBIL Grease, MOBIL Special Grease or any equivalent commercially available grease. Lubricating nipple for Walter CaptoTM clamping units \WSil Ordering code Size 5692 012-01 C3 C8 Cover plug for the CAPTO taper in clamping units Ordering code Size C3-CP-01 C3 / W / \T C4-CP-01 C4 W j ( 111) C5-CP-01 C5 ) jjlC6-CP-01 C6 C8-CP-01 C8 Operating instructions Rotating cutting head orientation by 180° In the case of an overhead machining operation, proceed as described in the following steps Turn the polygon socket by 180°. 1. Undo four screws Recommended keys by separate ordering C3 (T15) FS 1047 C4 (T20) FS 1048 C5 (T25) FS 1049 C6 Hexagon (5 mm) ISO 2936-5 C8 Hexagon (6 mm) ISO 2936-6 2. Remove the polygon socket. Please use removal fixture (for ordering information see below). Using the 4 screws secure the removal device to the polygon socket. Tighten the central screw of the device until the polygon socket is released. 3. Rotate the polygon socket by 180° and reinstall, with the aid of a plastic or copper hammer if necessary. Removal fixture for removing the polygon socket from manual clamping units id nv D ID/ Ordering code Size I C3-WDT-01M C3 C4-WDT-01M C4 I C5-WDT-01M C5 C6-WDT-01M C6 C8-WDT-01M C8 G 35
