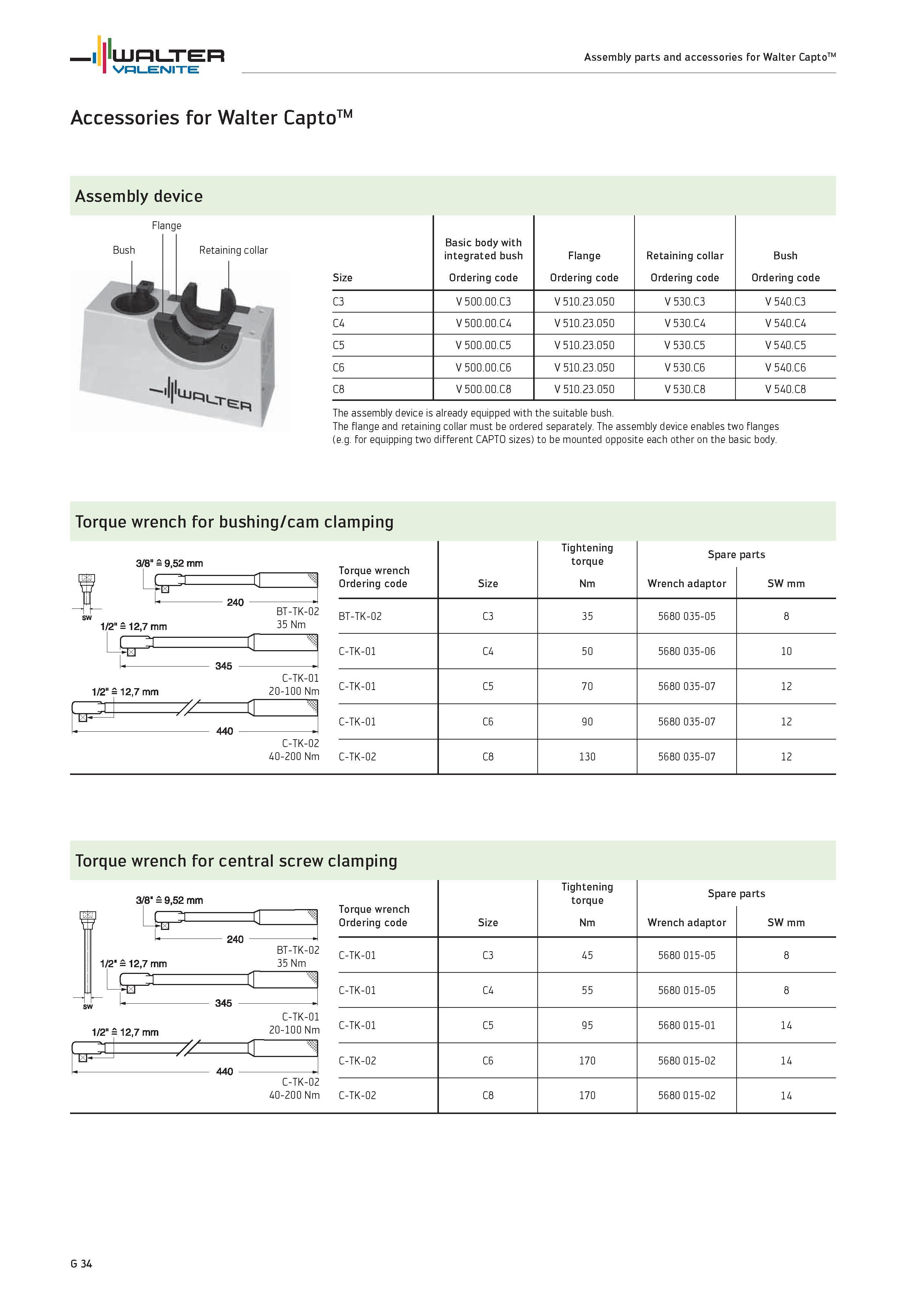

WALTER Assembly parts and accessories for Walter CaptoTM Valenite Accessories for Walter Capto TM Assembly device Flange Retaining collar Size Basic body with integrated bush Ordering code Flange Ordering code Retaining collar Ordering code Bush Ordering code C3 V 500.00.C3 V 510.23.050 V 530.C3 V 540.C3 C4 V 500.00.C4 V 510.23.050 V 530.C4 V 540.C4 C5 V 500.00.C5 V 510.23.050 V 530.C5 V 540.C5 C6 V 500.00.C6 V 510.23.050 V 530.C6 V 540.C6 C8 V 500.00.C8 V 510.23.050 V 530.C8 V 540.C8 The assembly device is already equipped with the suitable bush. The flange and retaining collar must be ordered separately. The assembly device enables two flanges (e.g. for equipping two different CAPTO sizes) to be mounted opposite each other on the basic body. Torque wrench for bushing/cam clamping 3/8" 9,52 mm 240 1/2" 12,7 mm 3= 345 1/2" 12,7 mm LJ 440 BT-TK-02 35 Nm C-TK-01 20-100 Nm C-TK-02 Torque wrench Ordering code Size Tightening torque Nm Spare Wrench adaptor parts SW mm BT-TK-02 C3 35 5680 035-05 8 C-TK-01 C4 50 5680 035-06 10 C-TK-01 C5 70 5680 035-07 12 C-TK-01 C6 90 5680 035-07 12 C-TK-02 C8 130 5680 035-07 12 Torque wrench for central screw clamping 3/81 9,52 mm rn ( “i n Torque wrench Yff 1 lu n Ordering code L 240 -J Size Tightening torque Nm Spare Wrench adaptor parts SW mm BT-TK-02 C-TK-01 1/2' 12,7 mm 35 Nm C3 45 5680 015-05 8 0 3 c-TK-01 SW 345 C4 55 5680 015-05 8 C-TK-01 1/2" 12,7 mm 20-100 Nm C-TK-01 C5 95 5680 015-01 14 t r // '% 1 C-TK-02 440 J C6 170 5680 015-02 14 C-TK-02 40-200 Nm C-TK-02 C8 170 5680 015-02 14 G 34
