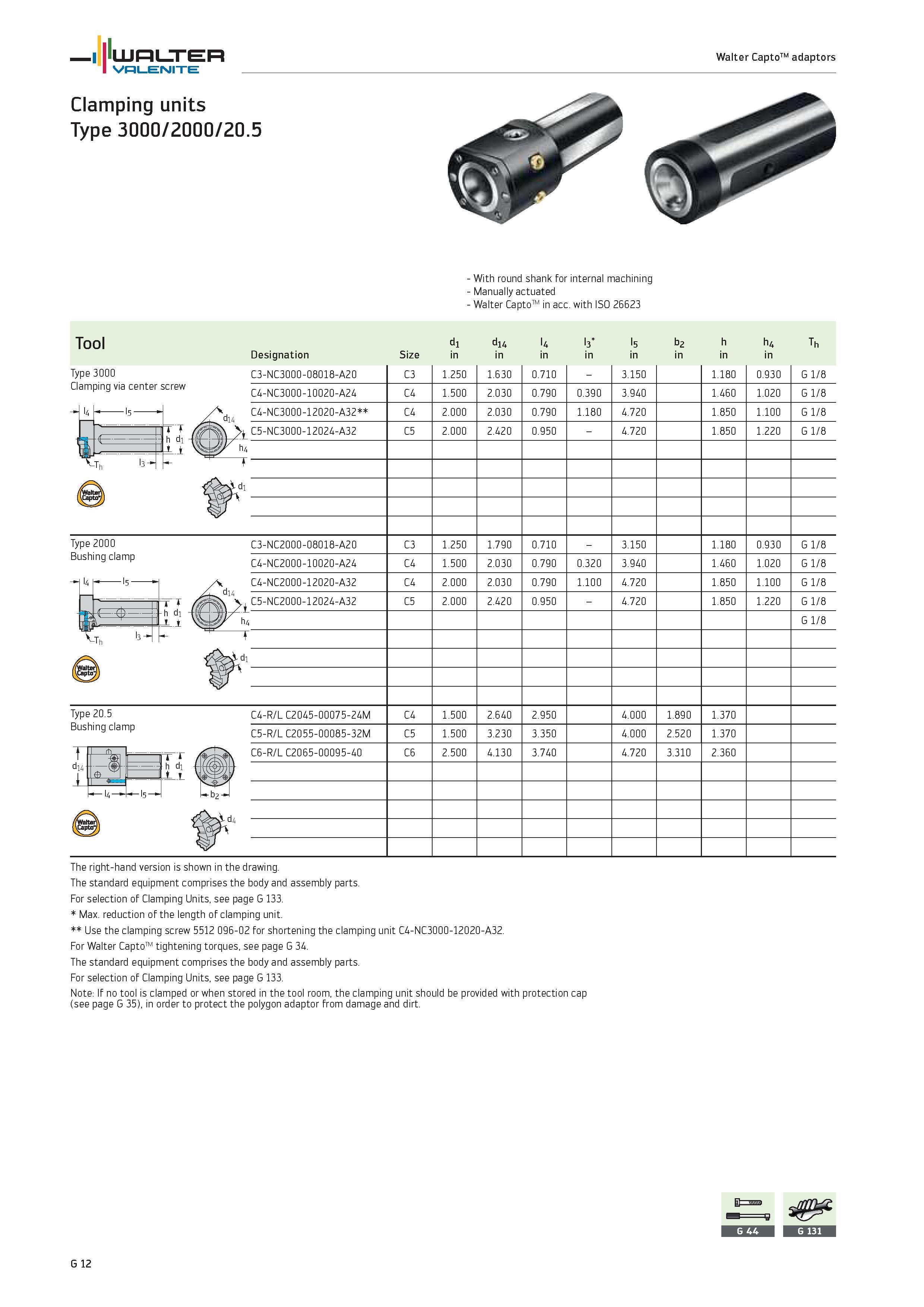

WALTER Valenite Walter CaptoTM adaptors Clamping units Type 3000/2000/20.5 Type 3000 Clamping via center screw With round shank for internal machining Manually actuated Walter CaptoTM in acc. with ISO 26623 Tool 14 d1 o l4 l3 l5 b2 h h4 Th Designation Size in C3-NC3000-08018-A20 C4-NC3000-10020-A24 C4-NC3000-12020-A32 C5-NC3000-12024-A32 h4 C3 C4 C4 C5 1.250 1.500 2.000 2.000 1.630 2.030 2.030 2.420 0.710 0.790 0.790 0.950 0.390 1.180 3.150 3.940 4.720 4.720 1.180 1.460 1.850 1.850 0.930 1.020 1.100 1.220 G 1/8 G 1/8 G 1/8 G 1/8 Type 2000 Bushing clamp C3-NC2000-08018-A20 C3 1.250 1.790 0.710 3.150 1.180 0.930 G 1/8 C4-NC2000-10020-A24 C4 1.500 2.030 0.790 0.320 3.940 1.460 1.020 G 1/8 C4-NC2000-12020-A32 C4 2.000 2.030 0.790 1.100 4.720 1.850 1.100 G 1/8 C5-NC2000-12024-A32 C5 2.000 2.420 0.950 4.720 1.850 1.220 G 1/8 G 1/8 Type 20.5 Bushing clamp ,rr h d i l4 l5 1 C4-R/L C2045-00075-24M C4 1.500 2.640 2.950 4.000 1.890 1.370 C5-R/L C2055-00085-32M C5 1.500 3.230 3.350 4.000 2.520 1.370 C6-R/L C2065-00095-40 C6 2.500 4.130 3.740 4.720 3.310 2.360 The right-hand version is shown in the drawing. The standard equipment comprises the body and assembly parts. For selection of Clamping Units, see page G 133. Max. reduction of the length of clamping unit. Use the clamping screw 5512 096-02 for shortening the clamping unit C4-NC3000-12020-A32. For Walter CaptoTM tightening torques, see page G 34. The standard equipment comprises the body and assembly parts. For selection of Clamping Units, see page G 133. Note If no tool is clamped or when stored in the tool room, the clamping unit should be provided with protection cap (see page G 35), in order to protect the polygon adaptor from damage and dirt. G 12
