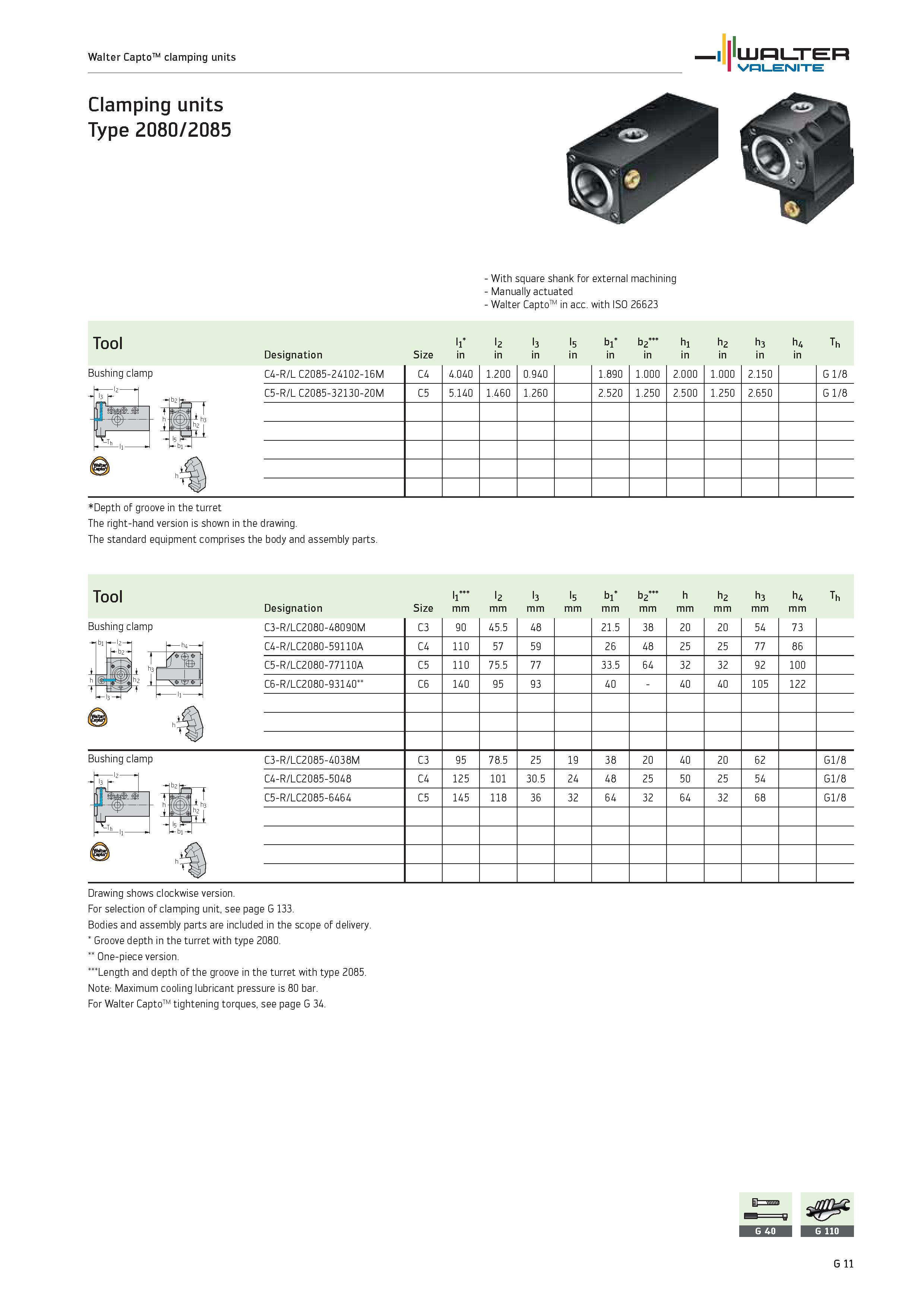

Walter CaptoTM clamping units WALTER Valenite Clamping units Type 2080/2085 Bushing clamp MJ With square shank for external machining Manually actuated Walter CaptoTM in acc. with ISO 26623 Tool li l2 l3 l5 b1 b2 h1 h2 h3 h4 Th Designation Size in C4-R/L C2085-24102-16M C4 4.040 1.200 0.940 1.890 1.000 2.000 1.000 2.150 G 1/8 C5-R/L C2085-32130-20M C5 5.140 1.460 1.260 2.520 1.250 2.500 1.250 2.650 G 1/8 Depth of groove in the turret The right-hand version is shown in the drawing. The standard equipment comprises the body and assembly parts. l5 Tool Bushing clamp Designation Size l“ mm l2 mm l3 mm l5 mm bi mm b2 mm h mm h2 mm h3 mm h4 mm Th C3-R/LC2080-48090M C3 90 45.5 48 21.5 38 20 20 54 73 C4-R/LC2080-59110A C4 110 57 59 26 48 25 25 77 86 C5-R/LC2080-77110A C5 110 75.5 77 33.5 64 32 32 92 100 C6-R/LC2080-93140 C6 140 95 93 40 40 40 105 122 C3-R/LC2085-4038M C3 95 78.5 25 19 38 20 40 20 62 G1/8 C4-R/LC2085-5048 C4 125 101 30.5 24 48 25 50 25 54 G1/8 C5-R/LC2085-6464 C5 145 118 36 32 64 32 64 32 68 G1/8 Bushing clamp -l2 l3 Drawing shows clockwise version. For selection of clamping unit, see page G 133. Bodies and assembly parts are included in the scope of delivery. Groove depth in the turret with type 2080. One-piece version. Length and depth of the groove in the turret with type 2085. Note Maximum cooling lubricant pressure is 80 bar. For Walter CaptoTM tightening torques, see page G 34. G 11
