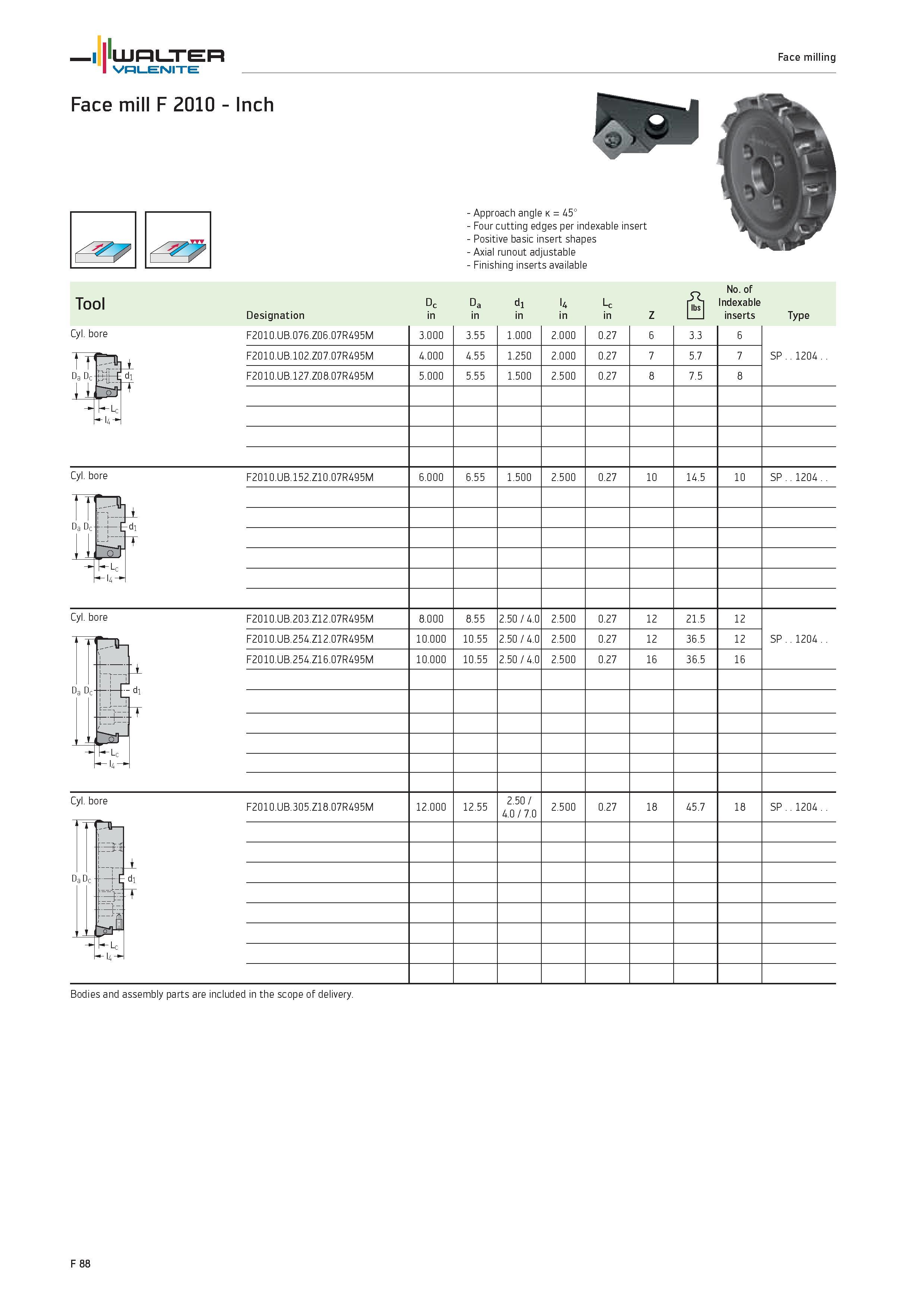

WALTER Valenite Face milling Face mill F 2010 Inch Approach angle k 45° Four cutting edges per indexable insert Positive basic insert shapes Axial runout adjustable Finishing inserts available No. of Tool Dc Da d1 U Lc M ndexable Designation in Z 1 inserts Type Cyl. bore T Da Dc ii F2010.UB.076.Z06.07R495M 3.000 3.55 1.000 2.000 0.27 6 3.3 6 SP..1204 F2010.UB.102.Z07.07R495M 4.000 4.55 1.250 2.000 0.27 7 5.7 7 F2010.UB.127.Z08.07R495M 5.000 5.55 1.500 2.500 0.27 8 7.5 8 F2010.UB.152.Z10.07R495M 6.000 6.55 1.500 2.500 0.27 10 14.5 10 SP..1204 F2010.UB.203.Z12.07R495M 8.000 8.55 2.50 / 4.0 2.500 0.27 12 21.5 12 SP..1204 F2010.UB.254.Z12.07R495M 10.000 10.55 2.50 / 4.0 2.500 0.27 12 36.5 12 F2010.UB.254.Z16.07R495M 10.000 10.55 2.50 / 4.0 2.500 0.27 16 36.5 16 F2010.UB.305.Z18.07R495M 12.000 12.55 2.50 / 4.0 / 7.0 2.500 0.27 18 45.7 18 SP..1204 Cyl. bore Cyl. bore ;zm± Lp d1 Cyl. bore fdi L-T Bodies and assembly parts are included in the scope of delivery. L UU a -'c L F 88
