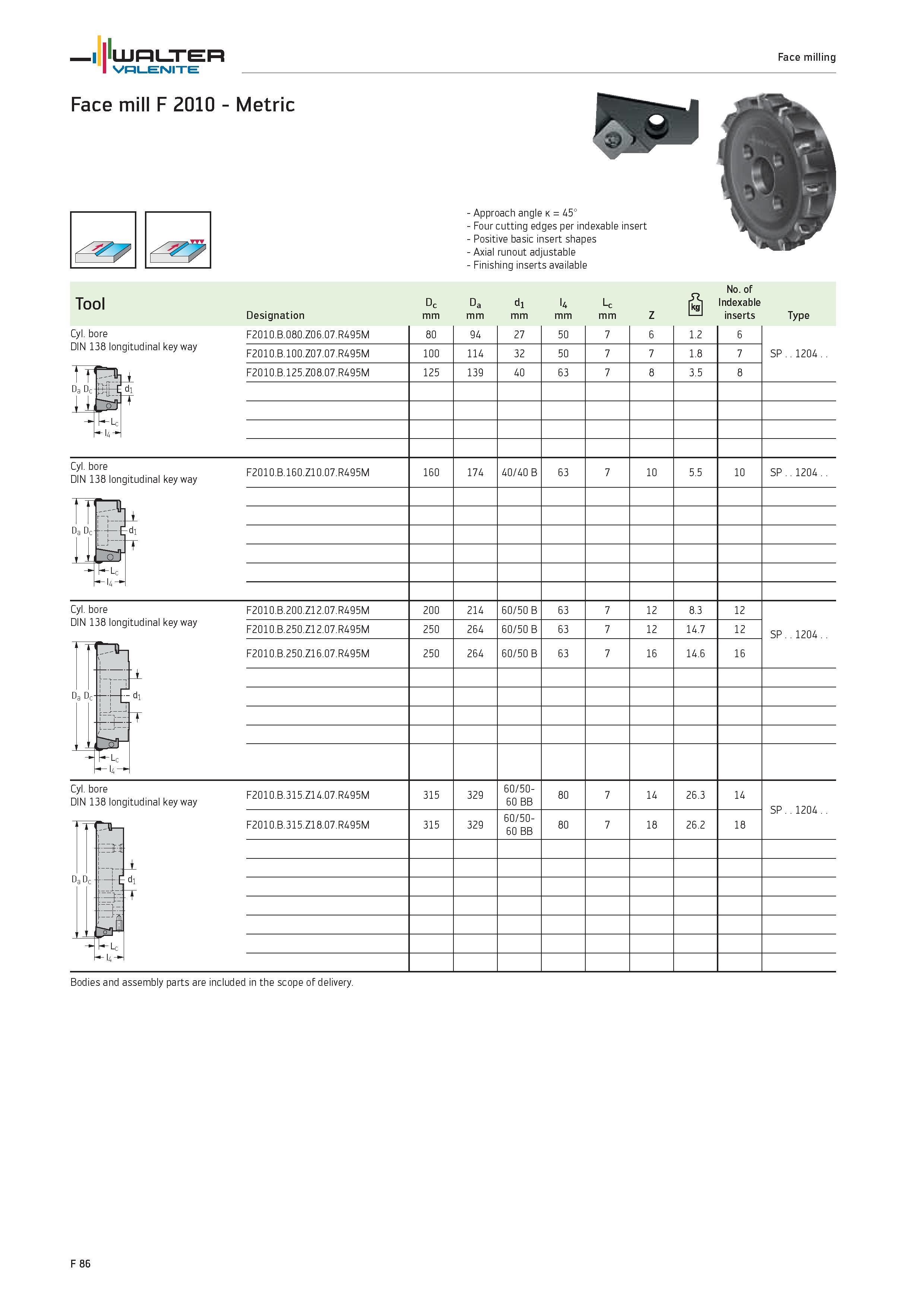

WALTER Valenite Face milling Face mill F 2010 Metric Cyl. bore DIN 138 longitudinal key way T Da Dc ii Approach angle k 45° Four cutting edges per indexable insert Positive basic insert shapes Axial runout adjustable Finishing inserts available No. of Tool Dc Da di u Lc kg lndexable Designation mm Z 1 1 inserts Type F2010.B.080.Z06.07.R495M 80 94 27 50 7 6 1.2 6 SP..1204 F2010.B.100.Z07.07.R495M 100 114 32 50 7 7 1.8 7 F2010.B.125.Z08.07.R495M 125 139 40 63 7 8 3.5 8 F2010.B.160.Z10.07.R495M 160 174 40/40 B 63 7 10 5.5 10 SP..1204 F2010.B.200.Z12.07.R495M 200 214 60/50 B 63 7 12 8.3 12 SP..1204 F2010.B.250.Z12.07.R495M 250 264 60/50 B 63 7 12 14.7 12 F2010.B.250.Z16.07.R495M 250 264 60/50 B 63 7 16 14.6 16 F2010.B.315.Z14.07.R495M 315 329 60/5060 BB 80 7 14 26.3 14 SP..1204 F2010.B.315.Z18.07.R495M 315 329 60/5060 BB 80 7 18 26.2 18 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way :zm± -i F d1 Cyl. bore DIN 138 longitudinal key way 11 "I 1 Da Dc B i JZT- v 3 VLc -l4 Bodies and assembly parts are included in the scope of delivery. L ac F 86
