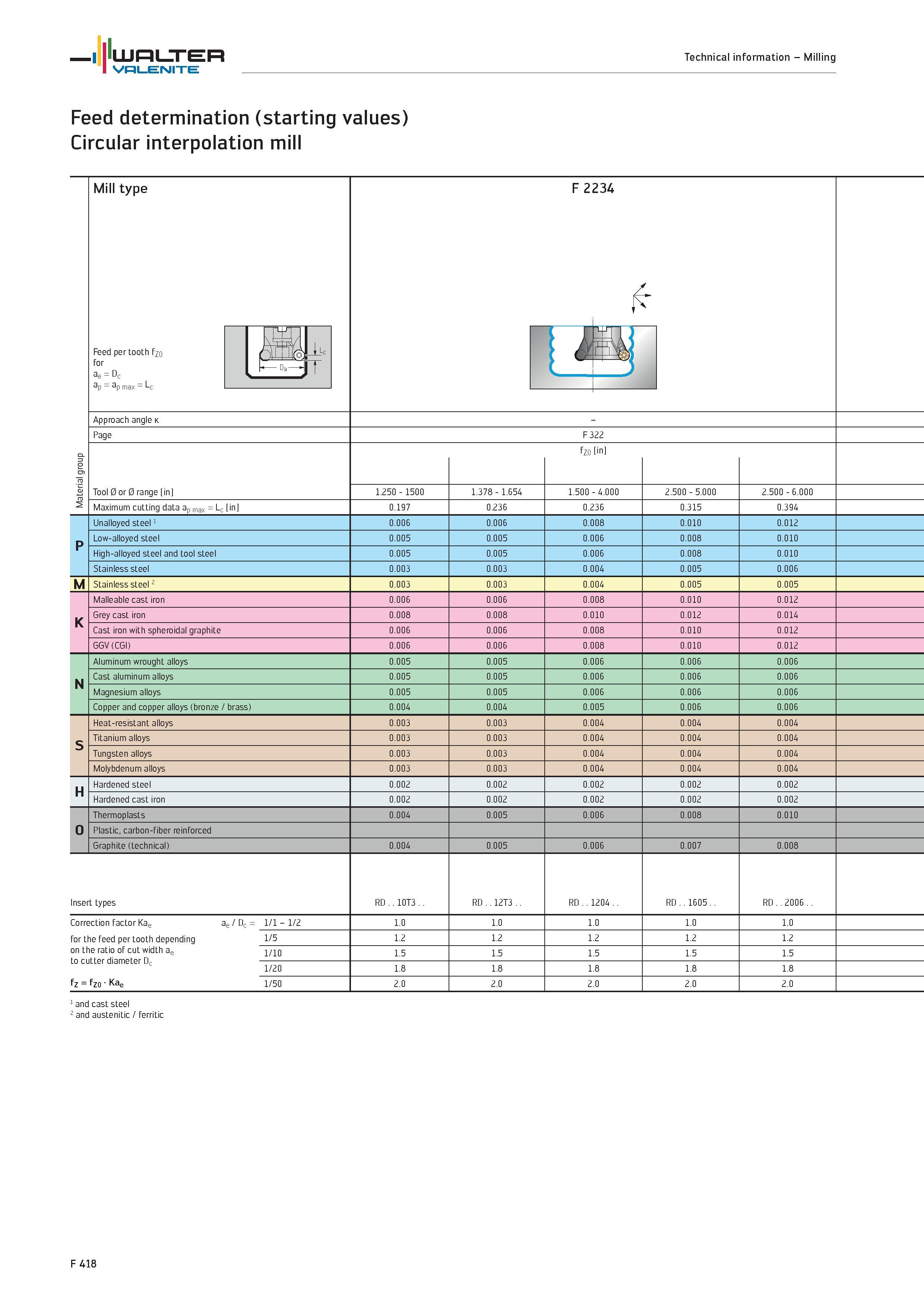

WALTER Valenite Technical information Milling Feed determination (starting values) Circular interpolation mill Material group Mill type F 2 234 Feed per tooth fzo for ae Dc ap ap max Lc (S' 1 LC r J TW Da t Approach angle k Page F 322 Tool 0 or 0 range in fz0 in 1.250 1500 1.378 1.654 1.500 4.000 2.500 5.000 2.500 6.000 Maximum cutting data ap max Lc in 0.197 0.236 0.236 0.315 0.394 p Unalloyed steel 1 0.006 0.006 0.008 0.010 0.012 Low-alloyed steel 0.005 0.005 0.006 0.008 0.010 High-alloyed steel and tool steel 0.005 0.005 0.006 0.008 0.010 Stainless steel 0.003 0.003 0.004 0.005 0.006 M Stainless steel 2 0.003 0.003 0.004 0.005 0.005 K Malleable cast iron 0.006 0.006 0.008 0.010 0.012 Grey cast iron 0.008 0.008 0.010 0.012 0.014 Cast iron with spheroidal graphite 0.006 0.006 0.008 0.010 0.012 GGV (CGI) 0.006 0.006 0.008 0.010 0.012 N Aluminum wrought alloys 0.005 0.005 0.006 0.006 0.006 Cast aluminum alloys 0.005 0.005 0.006 0.006 0.006 Magnesium alloys 0.005 0.005 0.006 0.006 0.006 Copper and copper alloys (bronze / brass) 0.004 0.004 0.005 0.006 0.006 S Heat-resistant alloys 0.003 0.003 0.004 0.004 0.004 Titanium alloys 0.003 0.003 0.004 0.004 0.004 Tungsten alloys 0.003 0.003 0.004 0.004 0.004 Molybdenum alloys 0.003 0.003 0.004 0.004 0.004 H Hardened steel 0.002 0.002 0.002 0.002 0.002 Hardened cast iron 0.002 0.002 0.002 0.002 0.002 O Thermoplasts 0.004 0.005 0.006 0.008 0.010 Plastic, carbon-fiber reinforced Graphite (technical) 0.004 0.005 0.006 0.007 0.008 Insert types RD 10T3 RD 12T3 4 CM D R RD 1605 RD 2006 Correction factor Kae ae / Dc for the feed per tooth depending on the ratio of cut width ae to cutter diameter Dc fZ fZ0 Kae 1/1 1/2 1.0 1.0 1.0 1.0 1.0 1/5 1.2 1.2 1.2 1.2 1.2 1/10 1.5 1.5 1.5 1.5 1.5 1/20 1.8 1.8 1.8 1.8 1.8 1/50 2.0 2.0 2.0 2.0 2.0 1 and cast steel 2 and austenitic / ferritic F 418
