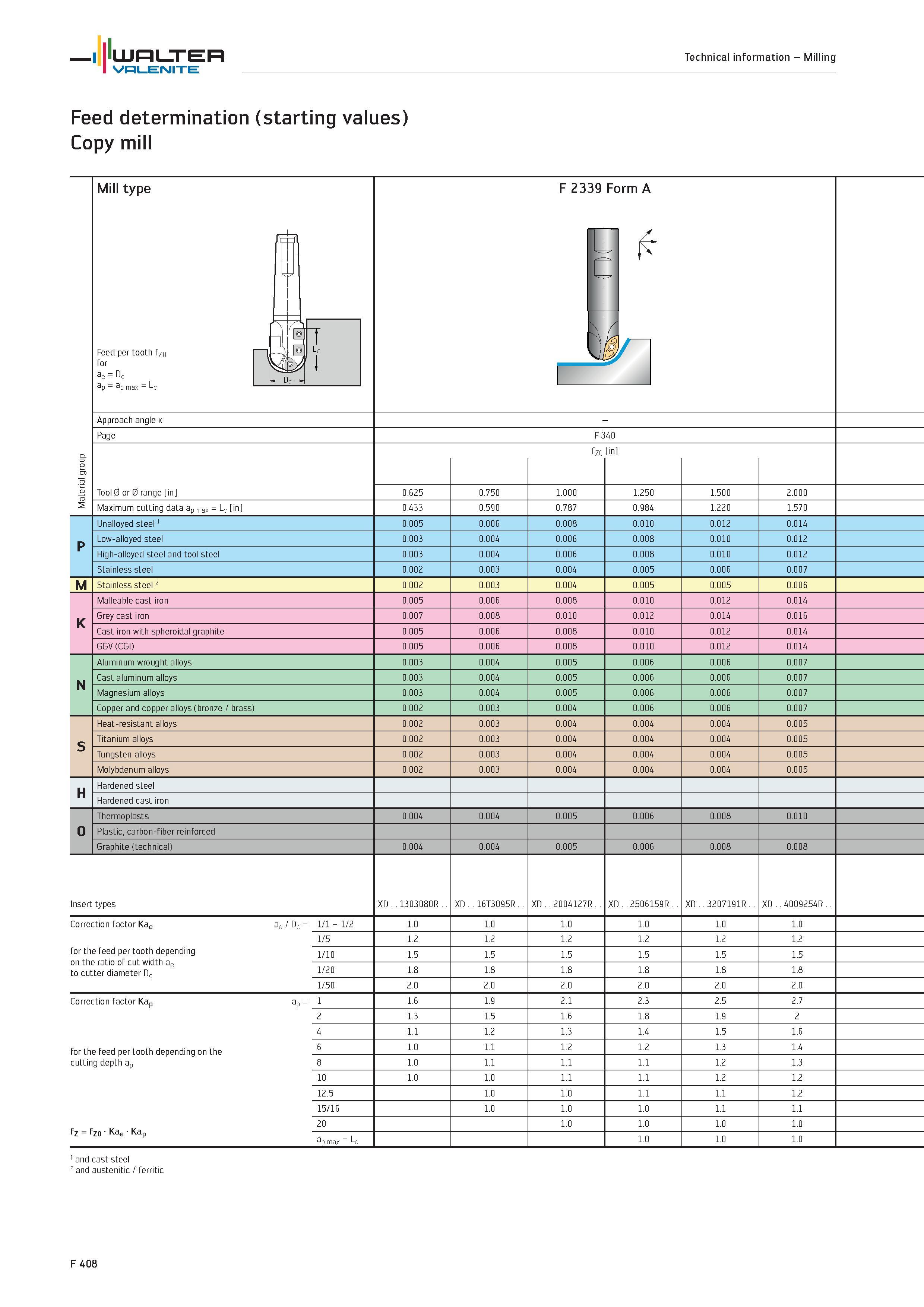

WALTER Technical information Milling Valenite Feed determination (starting values) Copy mill Material group Mill type F 2339 Form A r J 1 Feed per tooth fzo for ae Dc ap ap max Lc D ( c Lc Approach angle k Page F 340 Tool 0 or 0 range in fZ0 in 0.625 0.750 1.000 1.250 1.500 2.000 Maximum cutting data ap max Lc in 0.433 0.590 0.787 0.984 1.220 1.570 p Unalloyed steel 1 0.005 0.006 0.008 0.010 0.012 0.014 Low-alloyed steel 0.003 0.004 0.006 0.008 0.010 0.012 High-alloyed steel and tool steel 0.003 0.004 0.006 0.008 0.010 0.012 Stainless steel 0.002 0.003 0.004 0.005 0.006 0.007 M Stainless steel 2 0.002 0.003 0.004 0.005 0.005 0.006 K Malleable cast iron 0.005 0.006 0.008 0.010 0.012 0.014 Grey cast iron 0.007 0.008 0.010 0.012 0.014 0.016 Cast iron with spheroidal graphite 0.005 0.006 0.008 0.010 0.012 0.014 GGV (CGI) 0.005 0.006 0.008 0.010 0.012 0.014 N Aluminum wrought alloys 0.003 0.004 0.005 0.006 0.006 0.007 Cast aluminum alloys 0.003 0.004 0.005 0.006 0.006 0.007 Magnesium alloys 0.003 0.004 0.005 0.006 0.006 0.007 Copper and copper alloys (bronze / brass) 0.002 0.003 0.004 0.006 0.006 0.007 S Heat-resistant alloys 0.002 0.003 0.004 0.004 0.004 0.005 Titanium alloys 0.002 0.003 0.004 0.004 0.004 0.005 Tungsten alloys 0.002 0.003 0.004 0.004 0.004 0.005 Molybdenum alloys 0.002 0.003 0.004 0.004 0.004 0.005 H Hardened steel Hardened cast iron O Thermoplasts 0.004 0.004 0.005 0.006 0.008 0.010 Plastic, carbon-fiber reinforced Graphite (technical) 0.004 0.004 0.005 0.006 0.008 0.008 Insert types XD 1303080R XD 16T3095R XD 2004127R XD 2506159R XD 3207191R XD 4009254R Correction factor Kae ae / Dc for the feed per tooth depending on the ratio of cut width ae to cutter diameter Dc 1/1 1/2 1.0 1.0 1.0 1.0 1.0 1.0 1/5 1.2 1.2 1.2 1.2 1.2 1.2 1/10 1.5 1.5 1.5 1.5 1.5 1.5 1/20 1.8 1.8 1.8 1.8 1.8 1.8 1/50 2.0 2.0 2.0 2.0 2.0 2.0 Correction factor Kap ap for the feed per tooth depending on the cutting depth ap fz fzo Kae Kap 1 1.6 1.9 2.1 2.3 2.5 2.7 2 1.3 1.5 1.6 1.8 1.9 2 4 1.1 1.2 1.3 1.4 1.5 1.6 6 1.0 1.1 1.2 1.2 1.3 1.4 8 1.0 1.1 1.1 1.1 1.2 1.3 10 1.0 1.0 1.1 1.1 1.2 1.2 12.5 1.0 1.0 1.1 1.1 1.2 15/16 1.0 1.0 1.0 1.1 1.1 20 1.0 1.0 1.0 1.0 ap max Lc 1.0 1.0 1.0 1 and cast steel 2 and austenitic / ferritic F 408
