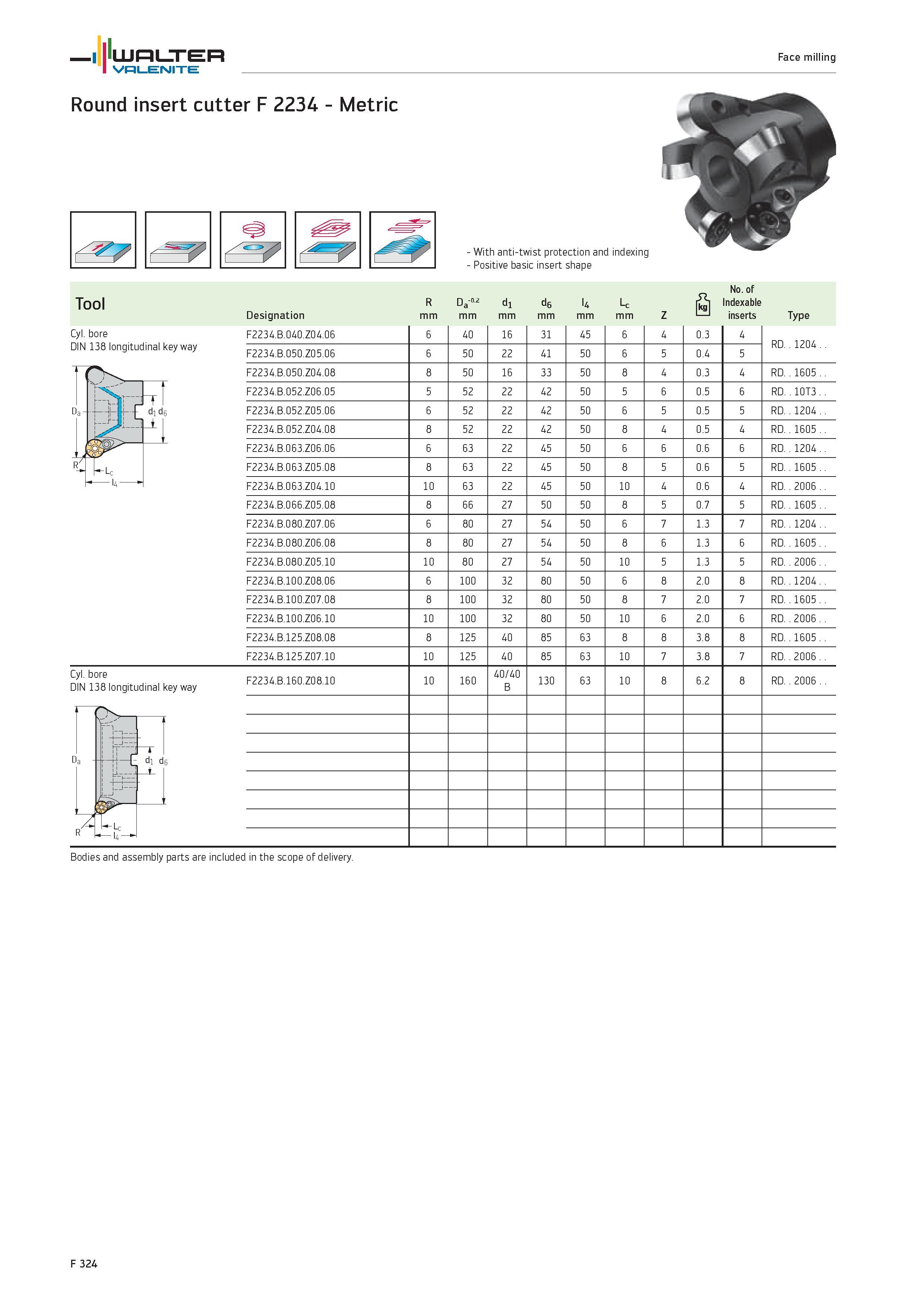

WALTER Valenite Face milling L Round insert cutter F 2234 Metric "7 With anti-twist protection and indexing Positive basic insert shape No. of Tool R Da-02 di da l4 Lc kgl Inttablf Designation mm Z 1 1 inserts Type Cyl. bore DIN 138 longitudinal key way F2234.B.040.Z04.06 6 40 16 31 45 6 4 0.3 4 RD. 1204 F2234.B.050.Z05.06 6 50 22 41 50 6 5 0.4 5 F2234.B.050.Z04.08 8 50 16 33 50 8 4 0.3 4 RD. 1605 F2234.B.052.Z06.05 5 52 22 42 50 5 6 0.5 6 RD. 10T3.. F2234.B.052.Z05.06 6 52 22 42 50 6 5 0.5 5 RD. 1204 F2234.B.052.Z04.08 8 52 22 42 50 8 4 0.5 4 RD. 1605 F2234.B.063.Z06.06 6 63 22 45 50 6 6 0.6 6 RD. 1204 F2234.B.063.Z05.08 8 63 22 45 50 8 5 0.6 5 RD. 1605 F2234.B.063.Z04.10 10 63 22 45 50 10 4 0.6 4 RD. 2006 F2234.B.066.Z05.08 8 66 27 50 50 8 5 0.7 5 RD. 1605 F2234.B.080.Z07.06 6 80 27 54 50 6 7 1.3 7 RD. 1204 F2234.B.080.Z06.08 8 80 27 54 50 8 6 1.3 6 RD. 1605 F2234.B.080.Z05.10 10 80 27 54 50 10 5 1.3 5 RD. 2006 F2234.B.100.Z08.06 6 100 32 80 50 6 8 2.0 8 RD. 1204 F2234.B.100.Z07.08 8 100 32 80 50 8 7 2.0 7 RD. 1605 F2234.B.100.Z06.10 10 100 32 80 50 10 6 2.0 6 RD. 2006 F2234.B.125.Z08.08 8 125 40 85 63 8 8 3.8 8 RD. 1605 F2234.B.125.Z07.10 10 125 40 85 63 10 7 3.8 7 RD. 2006 F2234.B.160.Z08.10 10 160 40/40 B 130 63 10 8 6.2 8 RD. 2006 Cyl. bore DIN 138 longitudinal key way di de -L 1 1 Lc l4 Bodies and assembly parts are included in the scope of delivery. u R F 324
