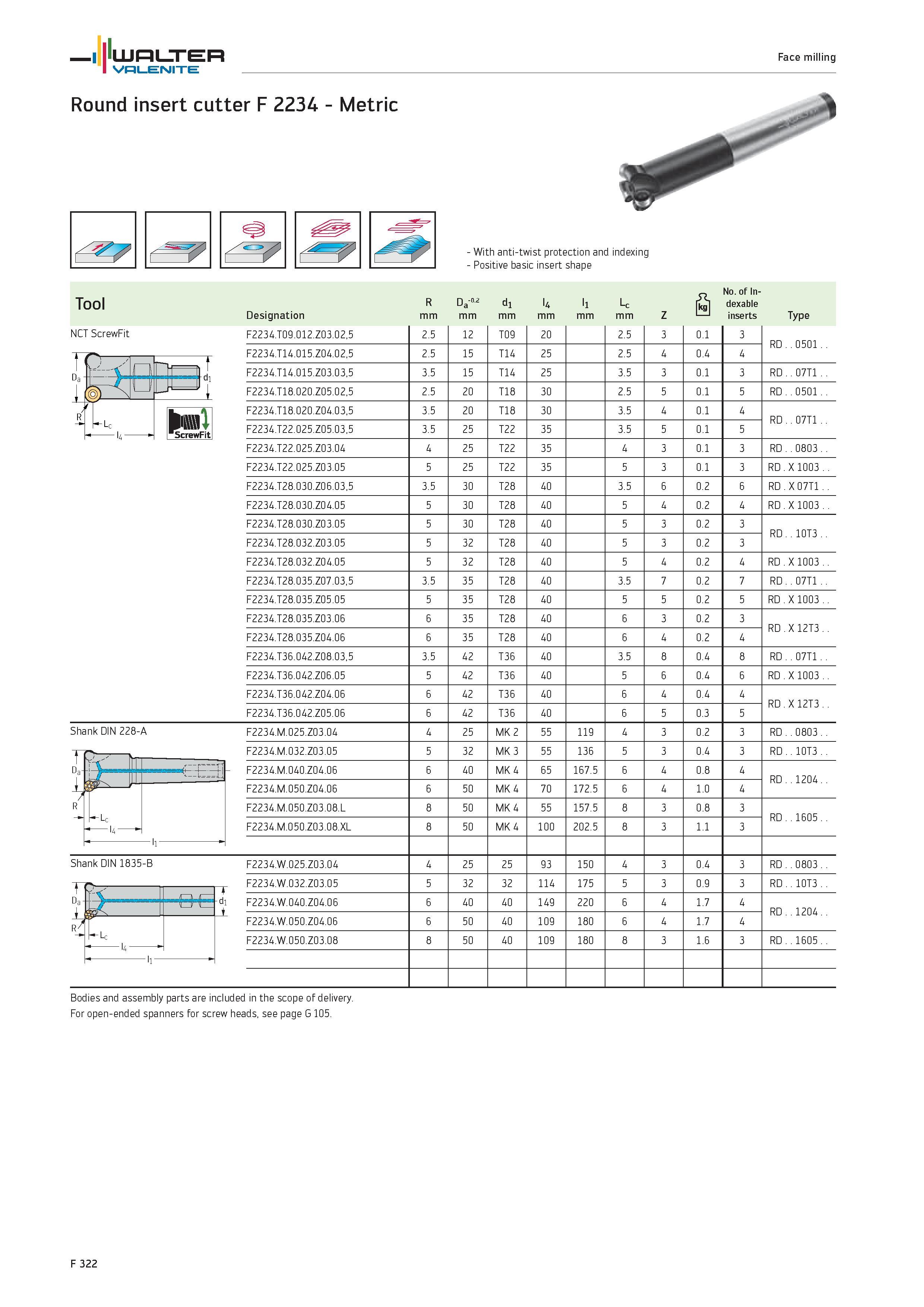

WALTER Valenite Face milling Round insert cutter F 2234 Metric Tool NCT ScrewFit ttt- "7 With anti-twist protection and indexing Positive basic insert shape No. of In- Designation R mm Da-02 mm d1 mm U mm l1 mm Lc mm Z kg dexable inserts Type F2234.T09.012.Z03.02,5 2.5 12 T09 20 2.5 3 0.1 3 RD .0501 F2234.T14.015.Z04.02,5 2.5 15 T14 25 2.5 4 0.4 4 F2234.T14.015.Z03.03,5 3.5 15 T14 25 3.5 3 0.1 3 RD 07T1 F2234.T18.020.Z05.02,5 2.5 20 T18 30 2.5 5 0.1 5 RD .0501 F2234.T18.020.Z04.03,5 3.5 20 T18 30 3.5 4 0.1 4 RD 07T1 F2234.T22.025.Z05.03,5 3.5 25 T22 35 3.5 5 0.1 5 F2234.T22.025.Z03.04 4 25 T22 35 4 3 0.1 3 RD .0803 F2234.T22.025.Z03.05 5 25 T22 35 5 3 0.1 3 RD X 1003 F2234.T28.030.Z06.03,5 3.5 30 T28 40 3.5 6 0.2 6 RD X07T1 F2234.T28.030.Z04.05 5 30 T28 40 5 4 0.2 4 RD X 1003 F2234.T28.030.Z03.05 5 30 T28 40 5 3 0.2 3 RD 10T3 F2234.T28.032.Z03.05 5 32 T28 40 5 3 0.2 3 F2234.T28.032.Z04.05 5 32 T28 40 5 4 0.2 4 RD X 1003 F2234.T28.035.Z07.03,5 3.5 35 T28 40 3.5 7 0.2 7 RD 07T1 F2234.T28.035.Z05.05 5 35 T28 40 5 5 0.2 5 RD X 1003 F2234.T28.035.Z03.06 6 35 T28 40 6 3 0.2 3 RD X12T3 F2234.T28.035.Z04.06 6 35 T28 40 6 4 0.2 4 F2234.T36.042.Z08.03,5 3.5 42 T36 40 3.5 8 0.4 8 RD 07T1 F2234.T36.042.Z06.05 5 42 T36 40 5 6 0.4 6 RD X 1003 F2234.T36.042.Z04.06 6 42 T36 40 6 4 0.4 4 RD X12T3 F2234.T36.042.Z05.06 6 42 T36 40 6 5 0.3 5 F2234.M.025.Z03.04 4 25 MK 2 55 119 4 3 0.2 3 RD .0803 F2234.M.032.Z03.05 5 32 MK 3 55 136 5 3 0.4 3 RD 10T3 F2234.M.040.Z04.06 6 40 MK 4 65 167.5 6 4 0.8 4 RD .1204 F2234.M.050.Z04.06 6 50 MK 4 70 172.5 6 4 1.0 4 F2234.M.050.Z03.08.L 8 50 MK 4 55 157.5 8 3 0.8 3 RD 1605 F2234.M.050.Z03.08.XL 8 50 MK 4 100 202.5 8 3 1.1 3 F2234.W.025.Z03.04 4 25 25 93 150 4 3 0.4 3 RD .0803.. F2234.W.032.Z03.05 5 32 32 114 175 5 3 0.9 3 RD 10T3 F2234.W.040.Z04.06 6 40 40 149 220 6 4 1.7 4 RD .1204 F2234.W.050.Z04.06 6 50 40 109 180 6 4 1.7 4 F2234.W.050.Z03.08 8 50 40 109 180 8 3 1.6 3 RD 1605 Shank DIN 228-A Sha nk DIN 1835-B t y-< J I i r/ -Lc 11 Bodies and assembly parts are included in the scope of delivery. For open-ended spanners for screw heads, see page G 105. F 322
