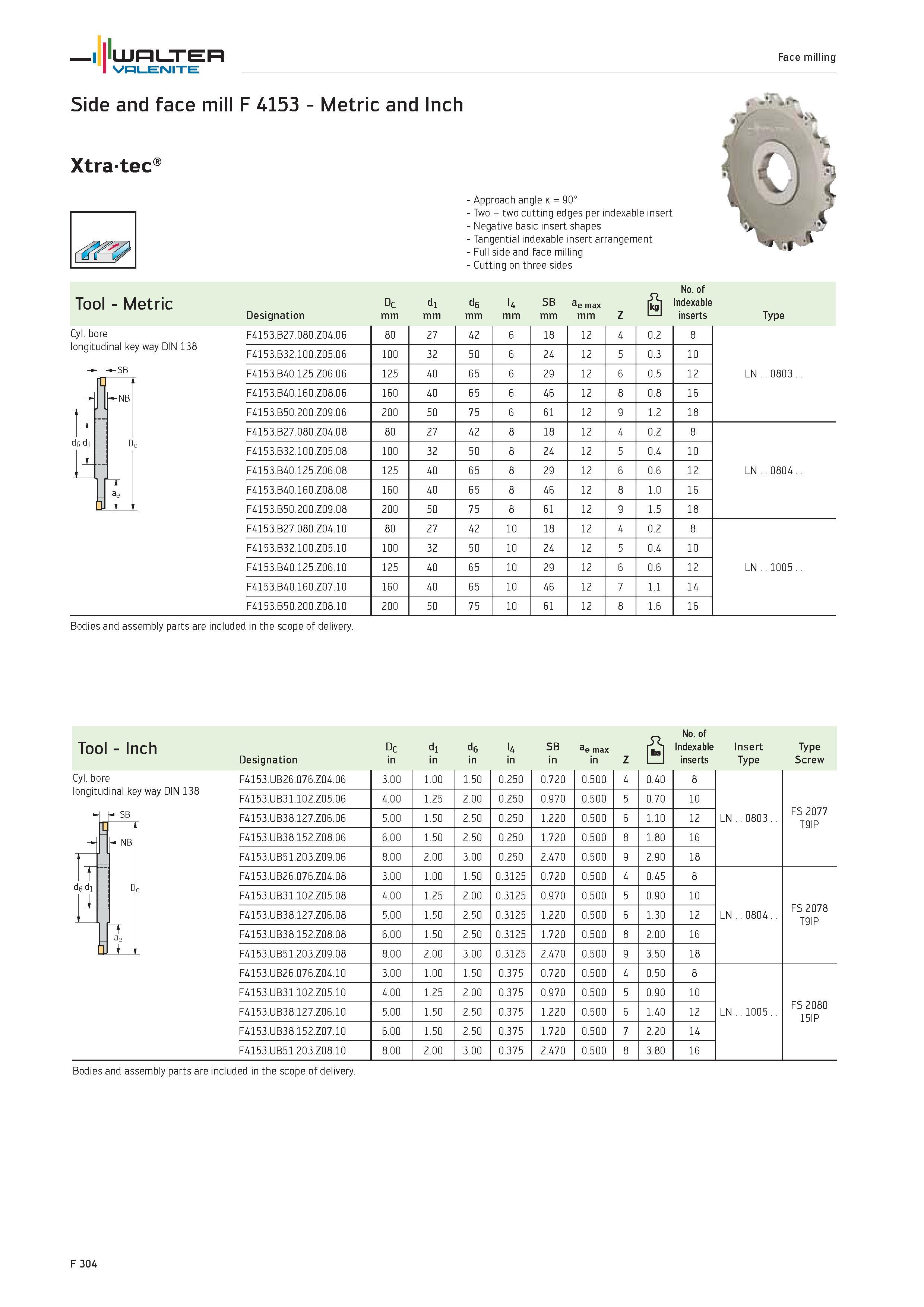

WALTER Valenite Face milling Side and face mill F 4153 Metric and Inch Xtratec Tool Metric Cyl. bore longitudinal key way DIN 138 Approach angle k 90° Two + two cutting edges per indexable insert Negative basic insert shapes Tangential indexable insert arrangement Full side and face milling Cutting on three sides Designation Dc mm d1 mm d6 mm l4 mm SB mm ae max mm Z S No. of ndexable inserts Type F4153.B27.080.Z04.06 80 27 42 6 18 12 4 0.2 8 F4153.B32.100.Z05.06 100 32 50 6 24 12 5 0.3 10 F4153.B40.125.Z06.06 125 40 65 6 29 12 6 0.5 12 LN .0803.. F4153.B40.160.Z08.06 160 40 65 6 46 12 8 0.8 16 F4153.B50.200.Z09.06 200 50 75 6 61 12 9 1.2 18 F4153.B27.080.Z04.08 80 27 42 8 18 12 4 0.2 8 F4153.B32.100.Z05.08 100 32 50 8 24 12 5 0.4 10 F4153.B40.125.Z06.08 125 40 65 8 29 12 6 0.6 12 LN .0804.. F4153.B40.160.Z08.08 160 40 65 8 46 12 8 1.0 16 F4153.B50.200.Z09.08 200 50 75 8 61 12 9 1.5 18 F4153.B27.080.Z04.10 80 27 42 10 18 12 4 0.2 8 F4153.B32.100.Z05.10 100 32 50 10 24 12 5 0.4 10 F4153.B40.125.Z06.10 125 40 65 10 29 12 6 0.6 12 LN .1005.. F4153.B40.160.Z07.10 160 40 65 10 46 12 7 1.1 14 F4153.B50.200.Z08.10 200 50 75 10 61 12 8 1.6 16 Bodies and assembly parts are included in the scope of delivery. Tool Inch DC d1 d6 l4 SB ae max No. of S Indexable Insert Type Designation in Z 1 inserts Type Screw Cyl. bore longitudinal key way DIN 138 -NB It d6 di Dc li ae i 1 F4153.UB26.076.Z04.06 3.00 1.00 1.50 0.250 0.720 0.500 4 0.40 8 LN .0803.. FS 2077 T9IP F4153.UB31.102.Z05.06 4.00 1.25 2.00 0.250 0.970 0.500 5 0.70 10 F4153.UB38.127.Z06.06 5.00 1.50 2.50 0.250 1.220 0.500 6 1.10 12 F4153.UB38.152.Z08.06 6.00 1.50 2.50 0.250 1.720 0.500 8 1.80 16 F4153.UB51.203.Z09.06 8.00 2.00 3.00 0.250 2.470 0.500 9 2.90 18 F4153.UB26.076.Z04.08 3.00 1.00 1.50 0.3125 0.720 0.500 4 0.45 8 LN .0804.. FS 2078 T9IP F4153.UB31.102.Z05.08 4.00 1.25 2.00 0.3125 0.970 0.500 5 0.90 10 F4153.UB38.127.Z06.08 5.00 1.50 2.50 0.3125 1.220 0.500 6 1.30 12 F4153.UB38.152.Z08.08 6.00 1.50 2.50 0.3125 1.720 0.500 8 2.00 16 F4153.UB51.203.Z09.08 8.00 2.00 3.00 0.3125 2.470 0.500 9 3.50 18 F4153.UB26.076.Z04.10 3.00 1.00 1.50 0.375 0.720 0.500 4 0.50 8 LN .1005.. FS 2080 15IP F4153.UB31.102.Z05.10 4.00 1.25 2.00 0.375 0.970 0.500 5 0.90 10 F4153.UB38.127.Z06.10 5.00 1.50 2.50 0.375 1.220 0.500 6 1.40 12 F4153.UB38.152.Z07.10 6.00 1.50 2.50 0.375 1.720 0.500 7 2.20 14 F4153.UB51.203.Z08.10 8.00 2.00 3.00 0.375 2.470 0.500 8 3.80 16 Bodies and assembly parts are included in the scope of delivery. SB F 304
