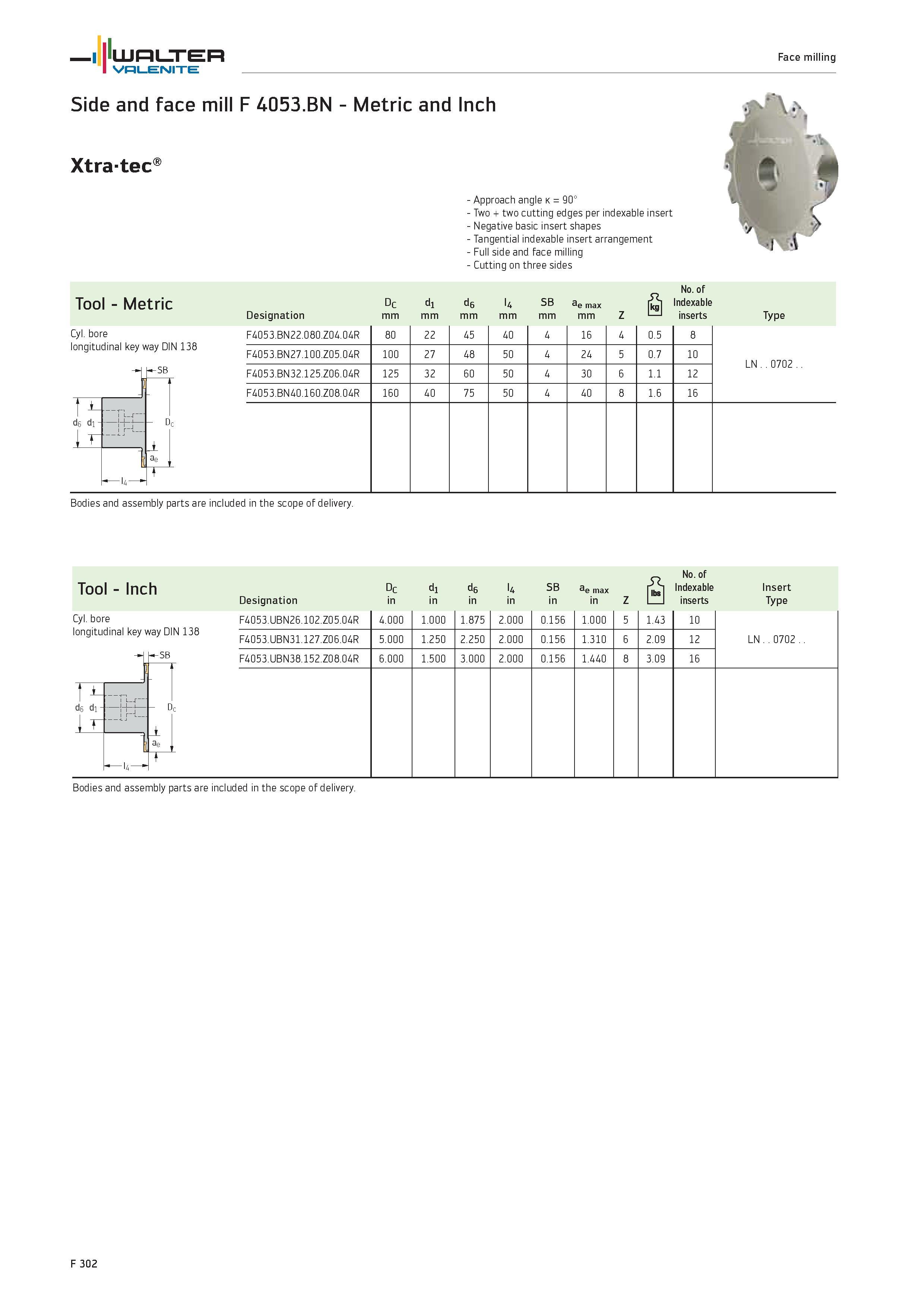

WALTER Valenite Face milling Side and face mill F 4053.BN Metric and Inch Xtratec Tool Metric Cyl. bore longitudinal key way DIN 138 Approach angle k 90° Two + two cutting edges per indexable insert Negative basic insert shapes Tangential indexable insert arrangement Full side and face milling Cutting on three sides Designation Dc mm d1 mm d6 mm l4 mm SB mm ae max mm Z S No. of ndexable inserts Type F4053.BN22.080.Z04.04R 80 22 45 40 4 16 4 0.5 8 F4053.BN27.100.Z05.04R 100 27 48 50 4 24 5 0.7 10 LN 0702 F4053.BN32.125.Z06.04R 125 32 60 50 4 30 6 1.1 12 F4053.BN40.160.Z08.04R 160 40 75 50 4 40 8 1.6 16 Bodies and assembly parts are included in the scope of delivery. Tool Inch DC d1 d6 u SB ae max No. of S Indexable Insert Designation in Z 1 inserts Type Cyl. bore longitudinal key way DIN 138 F4053.UBN26.102.Z05.04R 4.000 1.000 1.875 2.000 0.156 1.000 5 1.43 10 F4053.UBN31.127.Z06.04R 5.000 1.250 2.250 2.000 0.156 1.310 6 2.09 12 LN 0702 F4053.UBN38.152.Z08.04R 6.000 1.500 3.000 2.000 0.156 1.440 8 3.09 16 Bodies and assembly parts are included in the scope of delivery. F 302
