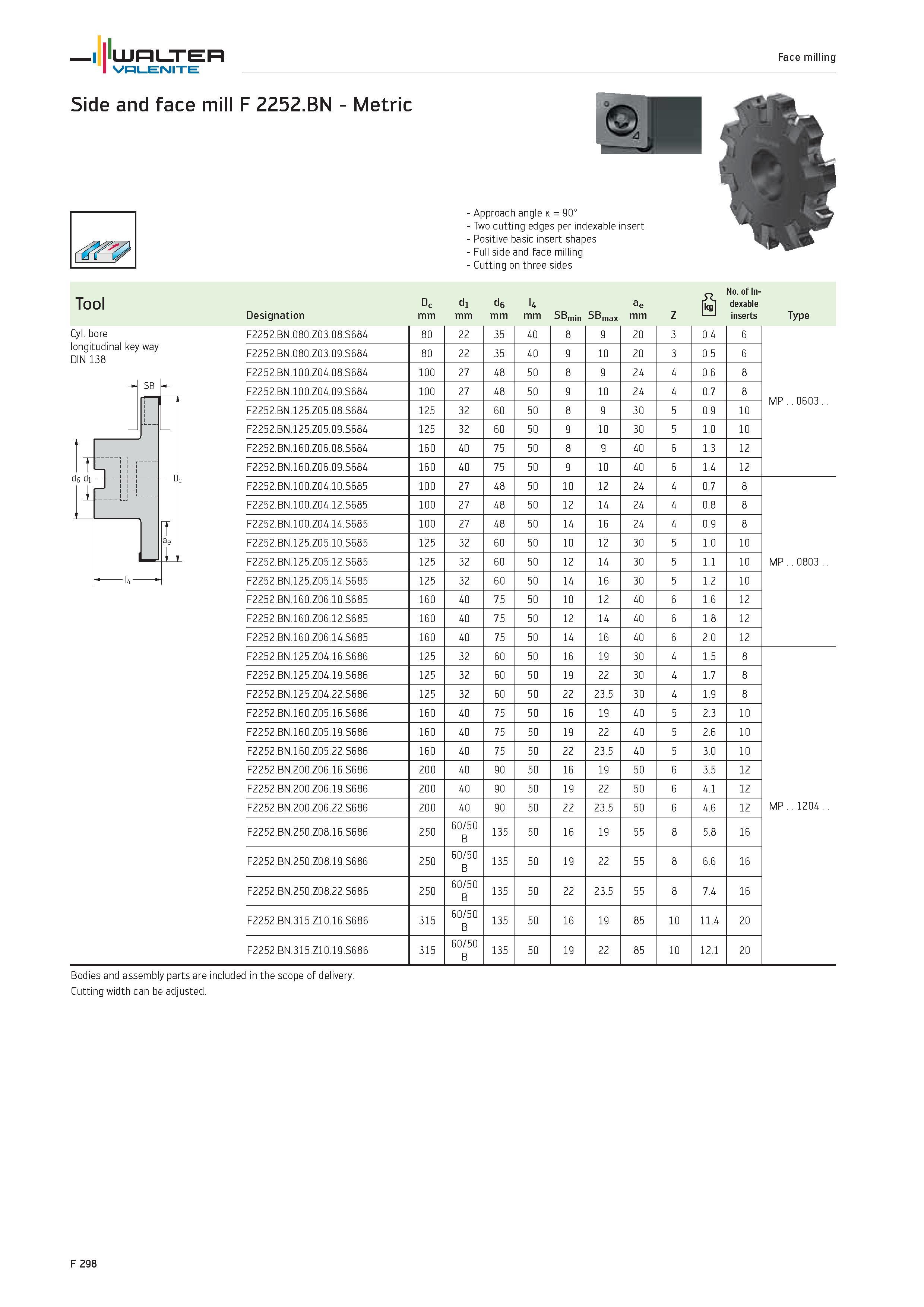

WALTER Valenite Face milling Side and face mill F 2252.BN Metric Tool Cyl. bore longitudinal key way DIN 138 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes Full side and face milling Cutting on three sides Designation Dc mm di mm da mm U mm SBmin SBmax ae mm Z S No. of Indexable inserts Type F2252.BN.080.Z03.08.S684 80 22 35 40 8 9 20 3 0.4 6 F2252.BN.080.Z03.09.S684 80 22 35 40 9 10 20 3 0.5 6 F2252.BN.100.Z04.08.S684 100 27 48 50 8 9 24 4 0.6 8 F2252.BN.100.Z04.09.S684 100 27 48 50 9 10 24 4 0.7 8 MP 0603 F2252.BN.125.Z05.08.S684 125 32 60 50 8 9 30 5 0.9 10 F2252.BN.125.Z05.09.S684 125 32 60 50 9 10 30 5 1.0 10 F2252.BN.160.Z06.08.S684 160 40 75 50 8 9 40 6 1.3 12 F2252.BN.160.Z06.09.S684 160 40 75 50 9 10 40 6 1.4 12 F2252.BN.100.Z04.10.S685 100 27 48 50 10 12 24 4 0.7 8 F2252.BN.100.Z04.12.S685 100 27 48 50 12 14 24 4 0.8 8 F2252.BN.100.Z04.14.S685 100 27 48 50 14 16 24 4 0.9 8 F2252.BN.125.Z05.10.S685 125 32 60 50 10 12 30 5 1.0 10 F2252.BN.125.Z05.12.S685 125 32 60 50 12 14 30 5 1.1 10 MP 0803 F2252.BN.125.Z05.14.S685 125 32 60 50 14 16 30 5 1.2 10 F2252.BN.160.Z06.10.S685 160 40 75 50 10 12 40 6 1.6 12 F2252.BN.160.Z06.12.S685 160 40 75 50 12 14 40 6 1.8 12 F2252.BN.160.Z06.14.S685 160 40 75 50 14 16 40 6 2.0 12 F2252.BN.125.Z04.16.S686 125 32 60 50 16 19 30 4 1.5 8 F2252.BN.125.Z04.19.S686 125 32 60 50 19 22 30 4 1.7 8 F2252.BN.125.Z04.22.S686 125 32 60 50 22 23.5 30 4 1.9 8 F2252.BN.160.Z05.16.S686 160 40 75 50 16 19 40 5 2.3 10 F2252.BN.160.Z05.19.S686 160 40 75 50 19 22 40 5 2.6 10 F2252.BN.160.Z05.22.S686 160 40 75 50 22 23.5 40 5 3.0 10 F2252.BN.200.Z06.16.S686 200 40 90 50 16 19 50 6 3.5 12 F2252.BN.200.Z06.19.S686 200 40 90 50 19 22 50 6 4.1 12 F2252.BN.200.Z06.22.S686 200 40 90 50 22 23.5 50 6 4.6 12 MP 1204 F2252.BN.250.Z08.16.S686 250 60/50 B 135 50 16 19 55 8 5.8 16 F2252.BN.250.Z08.19.S686 250 60/50 B 135 50 19 22 55 8 6.6 16 F2252.BN.250.Z08.22.S686 250 60/50 B 135 50 22 23.5 55 8 7.4 16 F2252.BN.315.Z10.16.S686 315 60/50 B 135 50 16 19 85 10 11.4 20 F2252.BN.315.Z10.19.S686 315 60/50 B 135 50 19 22 85 10 12.1 20 Bodies and assembly parts are included in the scope of delivery. Cutting width can be adjusted. F 298
