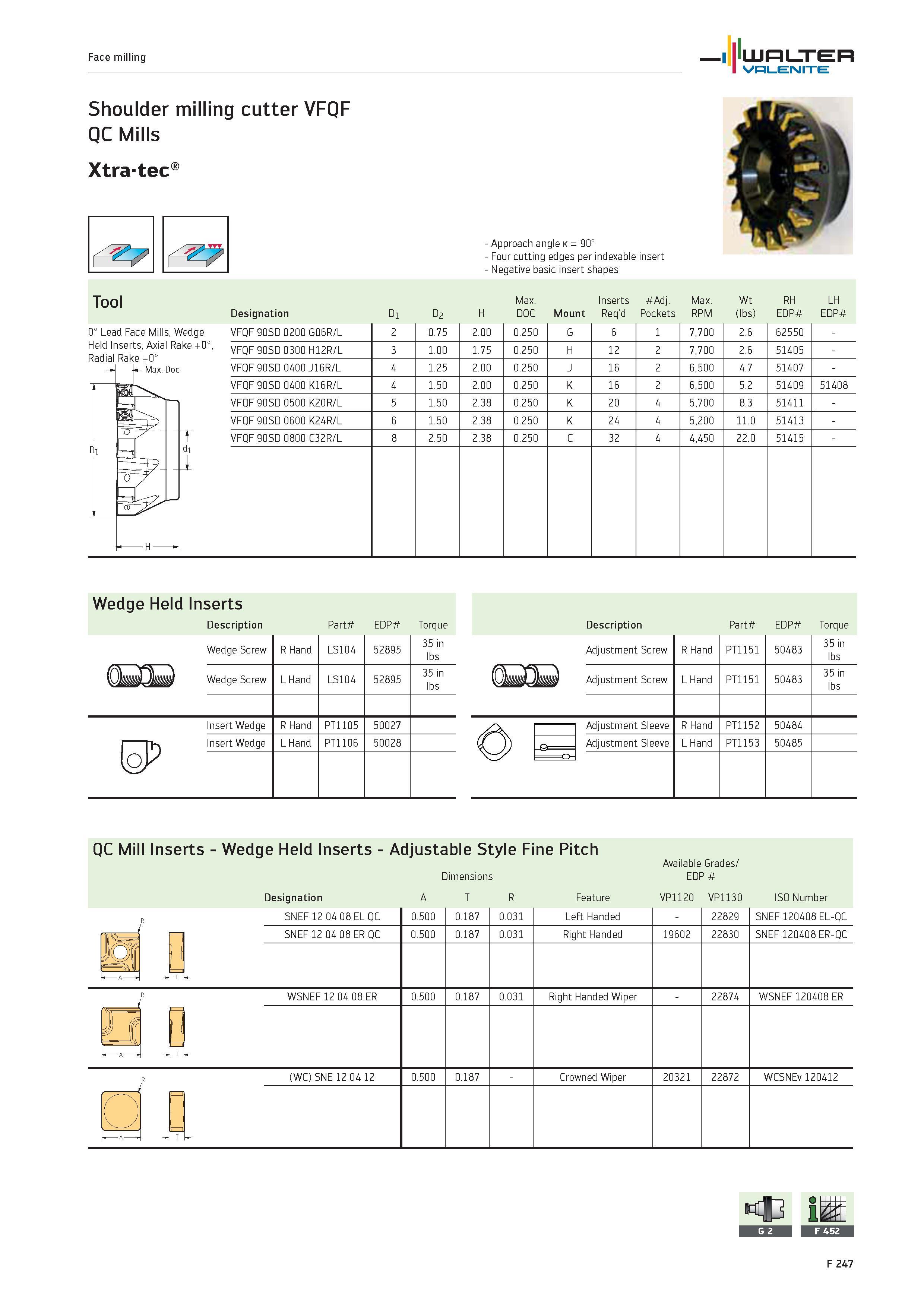

Face milling WALTER Valenite Shoulder milling cutter VFQF QC Mills Xtra-tec Approach angle k 90° Four cutting edges per indexable insert Negative basic insert shapes Tool Max. Inserts Adj. Max. Wt RH LH Designation D1 D2 H DOC Mount Req'd Pockets RPM (lbs) EDP EDP 0° Lead Face Mills, Wedge Held Inserts, Axial Rake +0°, Radial Rake +0° VFQF 90SD 0200 G06R/L 2 0.75 2.00 0.250 G 6 1 7,700 2.6 62550 VFQF 90SD 0300 H12R/L 3 1.00 1.75 0.250 H 12 2 7,700 2.6 51405 VFQF 90SD 0400 J16R/L 4 1.25 2.00 0.250 J 16 2 6,500 4.7 51407 VFQF 90SD 0400 K16R/L 4 1.50 2.00 0.250 K 16 2 6,500 5.2 51409 51408 VFQF 90SD 0500 K20R/L 5 1.50 2.38 0.250 K 20 4 5,700 8.3 51411 VFQF 90SD 0600 K24R/L 6 1.50 2.38 0.250 K 24 4 5,200 11.0 51413 VFQF 90SD 0800 C32R/L 8 2.50 2.38 0.250 C 32 4 4,450 22.0 51415 Wedge Held Inserts Description Part EDP Torque Description Part EDP Torque Wedge Screw R Hand LS104 52895 35 in lbs (QWlDW Wedge Screw L Hand LS104 52895 35 in lbs Insert Wedge R Hand PT1105 50027 1 I k Insert Wedge L Hand PT1106 50028 qP Adjustment Screw R Hand PT1151 50483 35 in lbs Adjustment Screw L Hand PT1151 50483 35 in lbs Adjustment Sleeve R Hand PT1152 50484 Adjustment Sleeve L Hand PT1153 50485 QC Mill Inserts Wedge Held Inserts Adjustable Style Fine Pitch Dimensions Designation A T R SNEF 12 04 08 EL QC SNEF 12 04 08 ER QC 0.500 0.500 0.187 0.187 0.031 0.031 Feature Left Handed Available Grades/ EDP VP1120 VP1130 ISO Number Right Handed 19602 22829 22830 SNEF120408EL-QC SNEF120408ER-QC n n WSNEF 12 04 08 ER 0.500 0.187 0.031 Right Handed Wiper 22874 WSNEF 120408 ER HI (WC) SNE 12 04 12 0.500 0.187 Crowned Wiper 20321 22872 WCSNEv 120412 A A A
