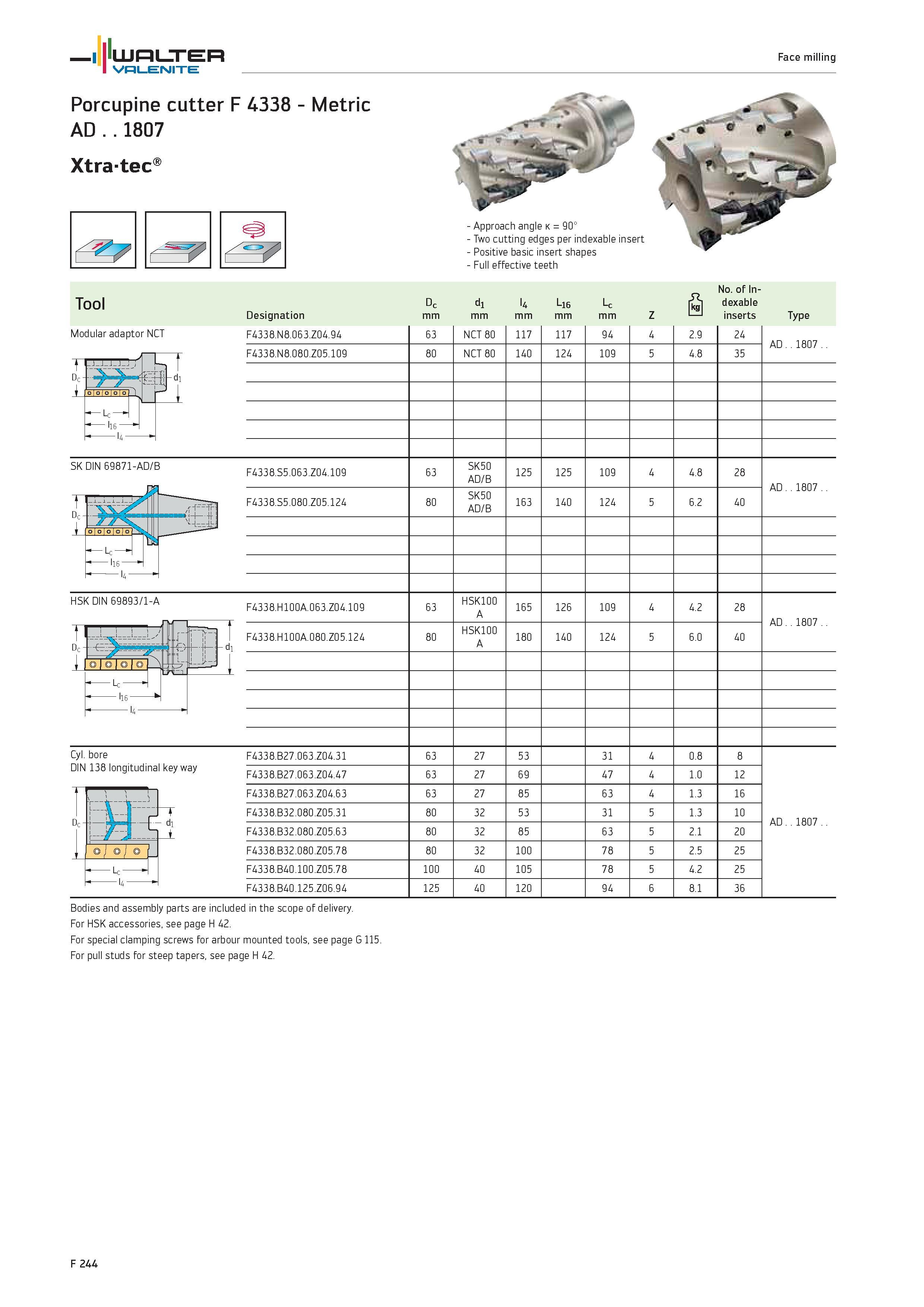

WALTER Valenite Face milling Porcupine cutter F 4338 Metric AD 1807 Xtra-tec "7 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes Full effective teeth No. of In- Tool Dc d1 l4 L16 Lc Ikgl dexable Designation mm Z inserts Type Modular adaptor NCT F4338.N8.063.Z04.94 63 NCT 80 117 117 94 4 2.9 24 AD .1807.. F4338.N8.080.Z05.109 80 NCT 80 140 124 109 5 4.8 35 F4338.S5.063.Z04.109 63 SK50 AD/B 125 125 109 4 4.8 28 AD .1807.. F4338.S5.080.Z05.124 80 SK50 AD/B 163 140 124 5 6.2 40 F4338.H100A.063.Z04.109 63 HSK100 A 165 126 109 4 4.2 28 AD .1807.. F4338.H100A.080.Z05.124 80 HSK100 A 180 140 124 5 6.0 40 F4338.B27.063.Z04.31 63 27 53 31 4 0.8 8 AD .1807.. F4338.B27.063.Z04.47 63 27 69 47 4 1.0 12 F4338.B27.063.Z04.63 63 27 85 63 4 1.3 16 F4338.B32.080.Z05.31 80 32 53 31 5 1.3 10 F4338.B32.080.Z05.63 80 32 85 63 5 2.1 20 F4338.B32.080.Z05.78 80 32 100 78 5 2.5 25 F4338.B40.100.Z05.78 100 40 105 78 5 4.2 25 F4338.B40.125.Z06.94 125 40 120 94 6 8.1 36 SK DIN 69871-AD/B HSK DIN 69893/1-A Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. For HSK accessories, see page H 42. For special clamping screws for arbour mounted tools, see page G 115. For pull studs for steep tapers, see page H 42. L D L F 244
