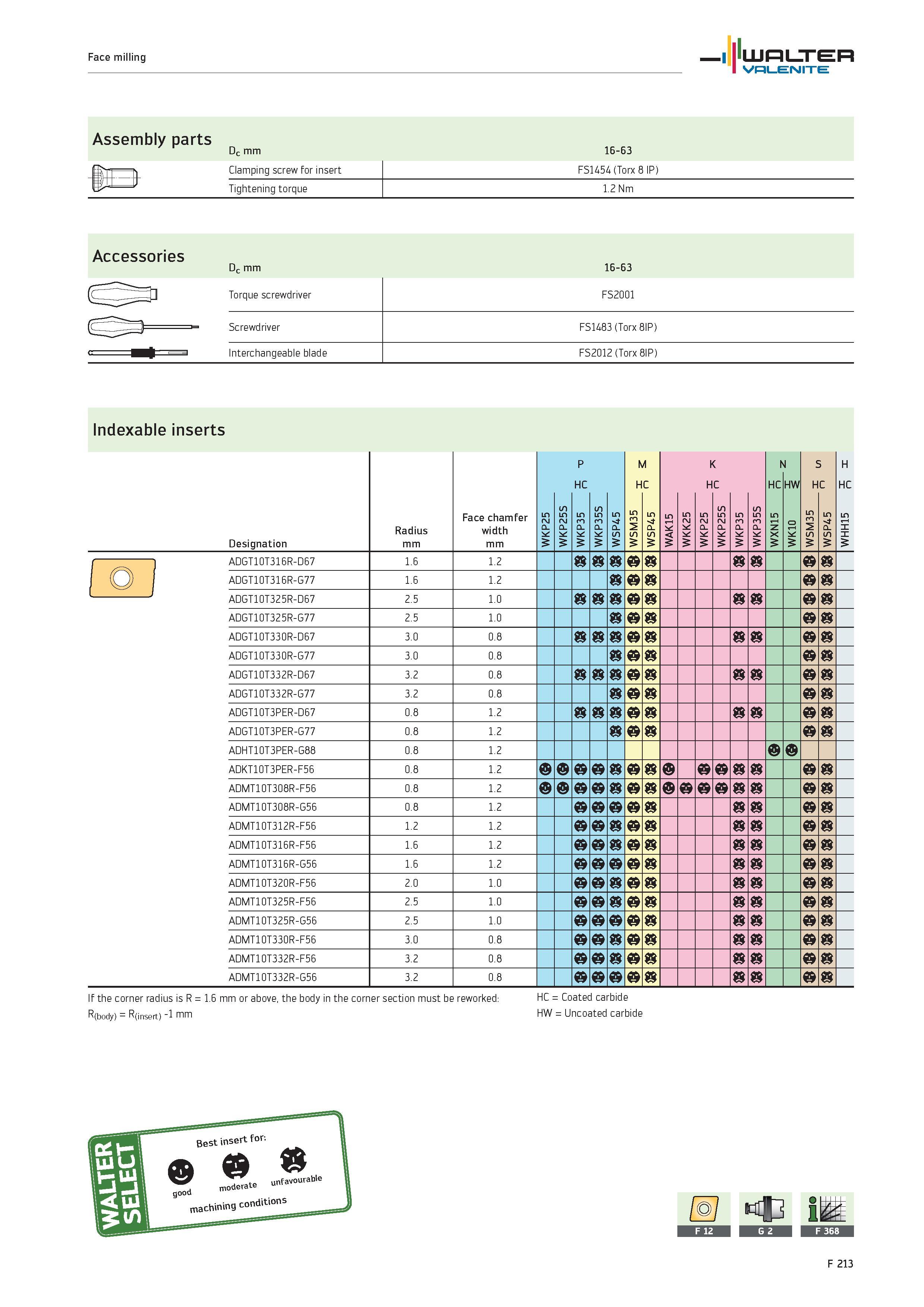

Face milling WALTER Valenite Assembly parts J Dc mm Clamping screw for insert Tightening torque 16-63 FS1454 (Torx 8 IP) 1.2 Nm Accessories Dc mm 16-63 Torque screwdriver FS2001 Screwdriver FS1483 (Torx 8IP) Interchangeable blade FS2012 (Torx 8IP) Indexable inserts Designation Radius mm Face chamfer width mm 5 P K W 5 P K W P HC 5 m P K W WKP35S 5 P S W M H 5 m 2 S W WSP45 n WAK15 WKK25 K H 5 P K WKP25S n WKP35 WKP35S HC 5 1-H z X W HW o 1 K 5 < H 5 m 2 S W WSP45 n H HC 5 1-H I H W 1 ADGT10T316R-D67 1.6 1.2 j (( )) j ADGT10T316R-G77 1.6 1.2 c ADGT10T325R-D67 2.5 1.0 c ADGT10T325R-G77 2.5 1.0 c ADGT10T330R-D67 3.0 0.8 c ADGT10T330R-G77 3.0 0.8 c ADGT10T332R-D67 3.2 0.8 c ADGT10T332R-G77 3.2 0.8 c ADGT10T3PER-D67 0.8 1.2 c ADGT10T3PER-G77 0.8 1.2 c ADHT10T3PER-G88 0.8 1.2 ADKT10T3PER-F56 0.8 1.2 c ADMT10T308R-F56 0.8 1.2 c c ADMT10T308R-G56 0.8 1.2 c ADMT10T312R-F56 1.2 1.2 c ADMT10T316R-F56 1.6 1.2 c ADMT10T316R-G56 1.6 1.2 c ADMT10T320R-F56 2.0 1.0 c ADMT10T325R-F56 2.5 1.0 c ADMT10T325R-G56 2.5 1.0 c ADMT10T330R-F56 3.0 0.8 c ADMT10T332R-F56 3.2 0.8 c ADMT10T332R-G56 3.2 0.8 c If the corner radius is R 1.6 mm or above, the body in the corner section must be reworked HC Coated carbide R(body) R(insert) -1 mm HW Uncoated carbide
